Specifications
Place of Origin :
Ningbo,China
Brand Name :
YONGTUO
Certification :
CE,SGS
Model Number :
ZN
MOQ :
10 pcs
Price :
$5.00 per pc
Packaging Details :
carton or up to the customers
Delivery Time :
about 15 days
Payment Terms :
TT or L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
20000 pcs/month
Vibrating Frequency :
220-260HZ
Vibrating Amplitude :
0.7-1.0mm
Length :
1m-12m
dia :
38mm
weight of concrete vibrator shaft :
7 kgs
Overall Dimension :
1376*80*138mm
Description

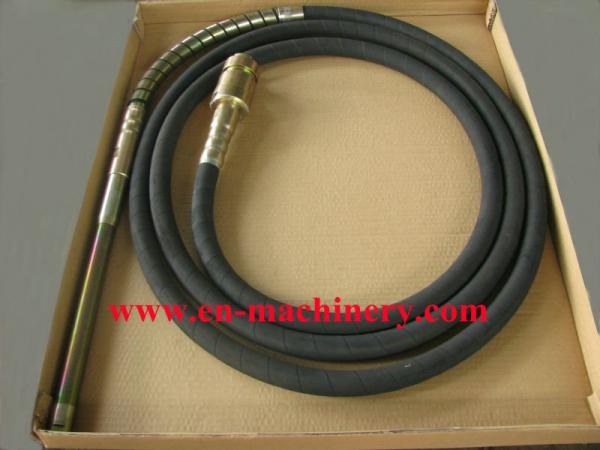

The best yongtuo brand 35mm Concrete Vibrator Needle with 30 years manufacture

Concrete Vibrator Shaft
1Japanese, Dynapac, Chinese type are available;
2Gasoline, Diesel and electrica motor are available.

Concrete Vibrator Shaft

Functional Description:

Apply to compact concrete, make it bind togeter tight and eliminat concrete phenomena such us honeycomb, further increase its strength to ensure the quality of concrete.

Main Features:

1. The tip of vibrator, which forged by high-quality 40 Cr-alloy steel with Salt bath furnace quench technology, mostly improving the mechanical capacity up to hardness of HRC52-58 degree;

2. Leeving: Use 45# carbon steel, handled by high-frenquency quenching and the hardness is up to HRC50~52 degree

3. Rolling element: handled by high-frenquency quench with high grade 40 Cr-alloy steel

4. Flexible pipe: Use high-quality native rubber and 65# Mn alloy spring steel and the thickness around 1.8MM.

Each concrete vibrator shaft are strictly tested by our engineer before sealed in the bag or packed in the carton box. So our quality can be guaranteed.

It was made of rubber, stee-wier net, canvas, lining spring.
Flexible rubber hoses are extensive used to the flexible tansmission of various machinery, such as the vibrator equipment, garden machine, water pump and other mechanical products. Can be used for all the non-linear motion machine.
It was made of rubber, stee-wier net, canvas, lining spring.


Model
Outer.dia
Inner.dia
Rubber tensile
Adhensive of inner rubber
 Steel belt material
Steel belt hardness
Rubber hardness
Steel wire braid
Min.bending radius(mm)

JYG16
16mm
9mm
 >1000 N/
 50-60
N/
 40Mn-65Mn
 20HRC-30HRC
 50-62
1
75
JYG20
20mm
10mm
1
80

JYG22
22mm
10mm
2
80
JYG24
24mm
13mm
 60-65
 20Mn-65Mn
 75-80
 according to the
demand
100

JYG30
30mm
16mm
120
JYG32
32mm
18mm
150
JYG36
36mm
20mm
200
JYG42
42mm
25mm
250

Model JKV25 JKV28 JKV32 JKV35 JKV38 JKV45 JKV50 JKV60 JKV70
Dia. of vibrating head 25mm 28mm 32mm 35mm 38mm 45mm 50mm 60mm 70mm
Dia. of hose(outside) 25mm 25mm 30mm 30mm 30mm 30mm 36mm 36mm 36mm
Dia. of shaft 8mm 8mm 10mm 10mm 10mm 10mm 13mm 13mm 13mm
Total length 1~6m 1~6m 4~8m 1~8m 4~8m 4~10m 4~12m 4~12m 4~12m
Weight (6m) 10kg 10kg 11kg 12kg 13kg 15kg 19kg 23kg 25kg
Packing size (6m) 77x66x5.5cm 77x66x7cm
Packing way carton box
Coupling type Chinese type,Japanese type.Malaysian type,Australian type.etc.
Hs Code
The Best Yongtuo Brand 35mm Concrete Vibrator Needle With 30 Years Manufacture

The Best Yongtuo Brand 35mm Concrete Vibrator Needle With 30 Years ManufactureThe Best Yongtuo Brand 35mm Concrete Vibrator Needle With 30 Years Manufacture

You may also interested in other products,mini concrete mixer,vibratory road roller


Contact us:

Sales Manager: Jessica

E-mail:sales@en-machinery.com

Skype: swhome79

www.en-machinery.com

Wechat:0086-(0)13857868709
