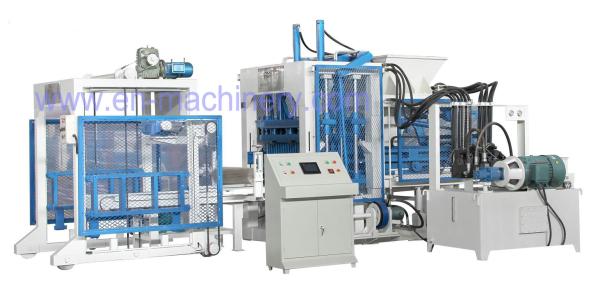

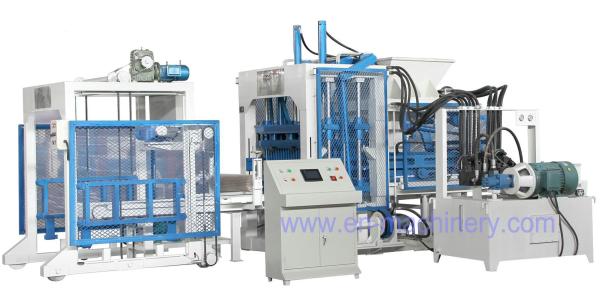

Cement Block Making Machine Block Machinery Competitive Frequency 8-15 Block/Brick Machine
Cement Block Making Machine Block Machinery Competitive Frequency 8-15 Block/Brick Machine
Cement Block Making Machine Block Machinery Competitive Frequency 8-15 Block/Brick Machine
Cement Block Making Machine Block Machinery Competitive Frequency 8-15 Block/Brick Machine
Cement Block Making Machine Block Machinery Competitive Frequency 8-15 Block/Brick Machine
Cement Block Making Machine Block Machinery Competitive Frequency 8-15 Block/Brick Machine
Cement Block Making Machine Block Machinery Competitive Frequency 8-15 Block/Brick Machine
Cement Block Making Machine Block Machinery Competitive Frequency 8-15 Block/Brick Machine
Cement Block Making Machine Block Machinery Competitive Frequency 8-15 Block/Brick Machine
Cement Block Making Machine Block Machinery Competitive Frequency 8-15 Block/Brick Machine
Specifications
Place of Origin :
Ningbo,China
Brand Name :
YONGTUO
Certification :
CE,SGS
Model Number :
8-15
MOQ :
1 set
Price :
$30000 per set
Packaging Details :
nude package or up to the customers
Delivery Time :
about 5 days
Payment Terms :
TT or L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
100 sets/month
Dimension(L*W*H) :
8400*1700*2950mm
Total weight :
8700kgs
Product quantity :
3000 blocks per day
Overall size :
8400*1700*2950mm
needed worker :
2-3 person
Brick Raw Material :
Concrete
Molding cycle :
24s
Power :
37kw
Voltage :
380V,220V
pallet size :
850x550x30mm
Method :
Hydraulic Pressure
Description

Cement Block Making Machine Block Machinery Competitive Frequency 8-15 Block/Brick Machine

Cement Block Making Machine Block Machinery Competitive Frequency 8-15 Block/Brick Machine

Cement Block Making Machine Block Machinery Competitive Frequency 8-15 Block/Brick Machine

Cement Block Making Machine Block Machinery Competitive Frequency 8-15 Block/Brick Machine

1.Particular storage and discerption material system insure the feeding accuracy and avoiding the effect of exterior material. So the products have high density.
2.Adopting synchronization vibration insures the products making average. The frequency can change according to different techniques. Low frequency in feeding material, high frequency vibration makes the different material to have an optimal vibration way.
3.The computer is of fault diagnosis system. Warning signal is propitious to eliminate the fault. Combine with long-distance controlling system , it can achieve scrutiny, controlling, diagnosis.

main parameters about 8-15 cement block making machine

Technical Parameters of 8-15 cement block making machine

Overall Dimension

8400*1700*2950mm

Rated Pressure

21MPa

Main Vibration Form

Platform Vibration

Vibration Frequency

2800~4500 ( r/min)

Pallet Size

950*900mm

Molding cycle

15-25 (s)

Overall Power

37KW

Vibration Force

60KN

Total Mass

12.5T

Demolding method

Hydraulic

General water consumption

12T/Day

Factory Area

600m2

Applied Products

Concrete blocks, hollow/solid blocks, pavers, interlocking blocks , curbstone, colored pavers ,etc.

Raw Material

Crushed stone, sand , cement, dust, and fly ash, gravel, slag, and other raw material

Ratio of raw material

house blocks making machine cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
raw material consumption per day 150-190T
water consumption per day 3%-5% of raw material Weight
Hollow blocks can reach 8-10Mpa,Solid bricks can reach 10-20Mpa they have a high pressure,can be used widely

Please notice that our service is up to your requirments.

  • If you'v got a brick factory and you want to improve your current formual and save the cost, our professional team are willing to give you the best suggestion and technical support.
  • If you want to join in this filed, our professional team would like to offer you the best guidance and give you a full appreciation about our machine and the the feasibility of its investment.

We sincerely welcome you to visit our factory and discuss the feasibility of cooperation.
