Specifications
Place of Origin :
Ningbo,China
Brand Name :
YONGTUO
Certification :
CE,SGS
Model Number :
ZN
MOQ :
10 pcs
Price :
$5 per pc
Packaging Details :
carton or up to the customers
Delivery Time :
about 15 days
Payment Terms :
TT or L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
20000 pcs/month
Vibrating Frequency :
220-260HZ
Vibrating Amplitude :
0.7-1.0mm
Length :
1m-12m
dia :
38mm
weight of concrete vibrator shaft :
7 kgs
Overall Dimension :
1376*80*138mm
Description

ZN SERIES CONCRETE VIBRATOR SHAFT/ WIRE-NETTED RUBBER HOSE

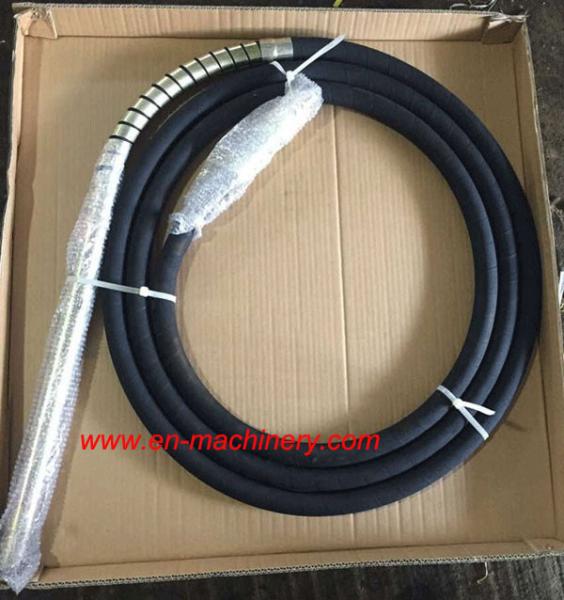

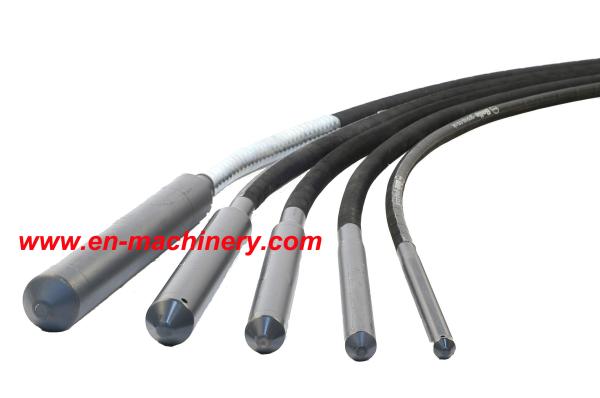

Concrete Vibrator Shaft
1Japanese, Dynapac, Chinese type are available;
2Gasoline, Diesel and electrica motor are available.

Concrete Vibrator Shaft

Functional Description:

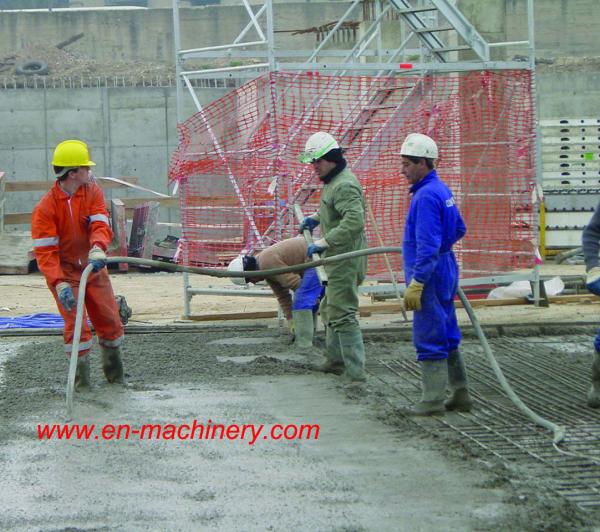

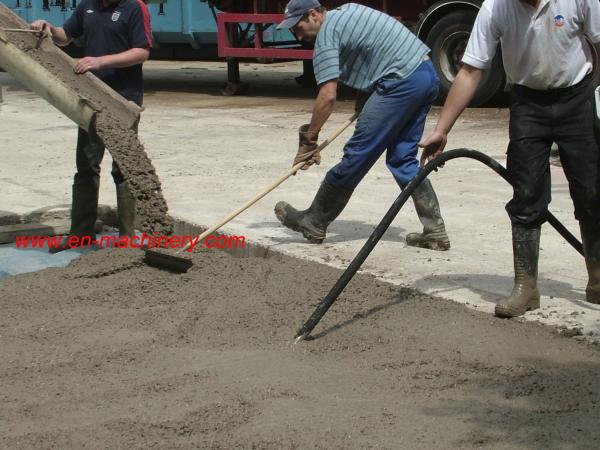

Apply to compact concrete, make it bind togeter tight and eliminat concrete phenomena such us honeycomb, further increase its strength to ensure the quality of concrete.

Main Features:

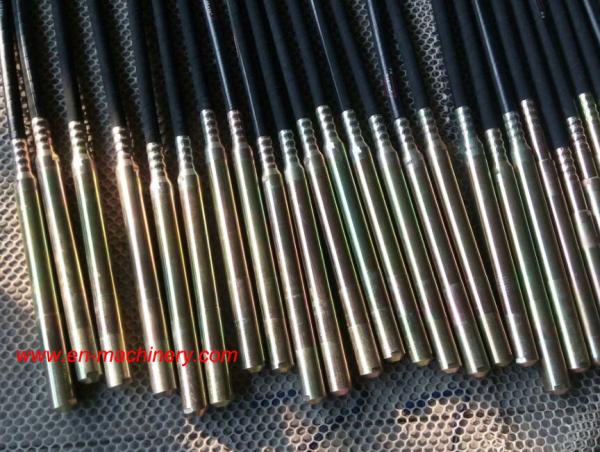

1. The tip of vibrator, which forged by high-quality 40 Cr-alloy steel with Salt bath furnace quench technology, mostly improving the mechanical capacity up to hardness of HRC52-58 degree;

2. Leeving: Use 45# carbon steel, handled by high-frenquency quenching and the hardness is up to HRC50~52 degree

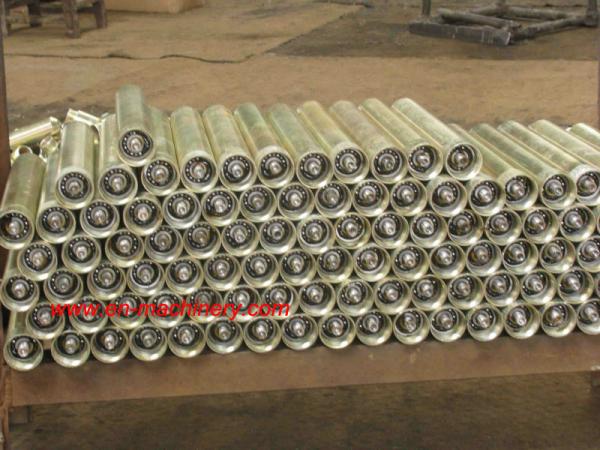

3. Rolling element: handled by high-frenquency quench with high grade 40 Cr-alloy steel

4. Flexible pipe: Use high-quality native rubber and 65# Mn alloy spring steel and the thickness around 1.8MM.

Technical Specifications:

1000 N 50-60 N 40Mn-65Mn 20HRC-30HRC 50-62
JYG16 16mm 9mm 1 75
JYG20
20mm 10mm 1 80
JYG22 22mm 10mm 2 80
JYG24 60-65 N 20Mn-65Mn 75-80 according to the
24mm 13mm demand 100
JYG30 30mm 16mm 120
JYG32
32mm 18mm 150
JYG36
36mm 20mm 200
JYG42 250
42mm 25mm

Zn Series Concrete Vibrator Shaft/ Wire-Netted Rubber Hose With Different Types

Zn Series Concrete Vibrator Shaft/ Wire-Netted Rubber Hose With Different TypesZn Series Concrete Vibrator Shaft/ Wire-Netted Rubber Hose With Different Types

You may also interested in other products,mini concrete mixer,vibratory road roller


Contact us:

Sales Manager: Jessica

E-mail:sales@en-machinery.com

Skype: swhome79

www.en-machinery.com

Tel:0086.574.88124576

Wechat:0086.13857868709
