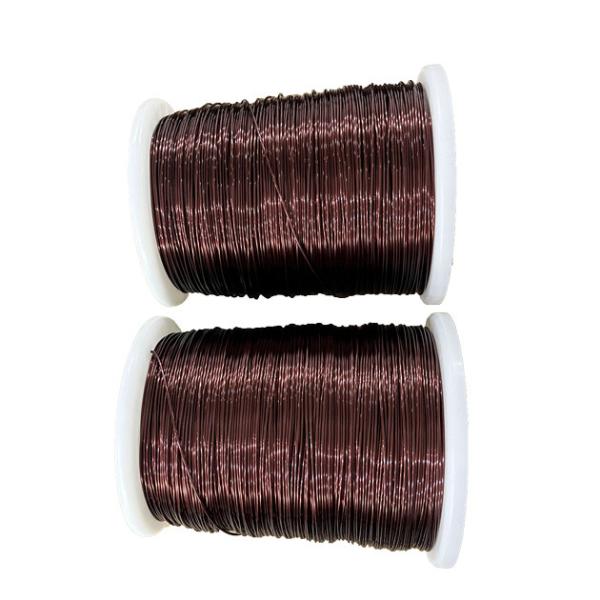

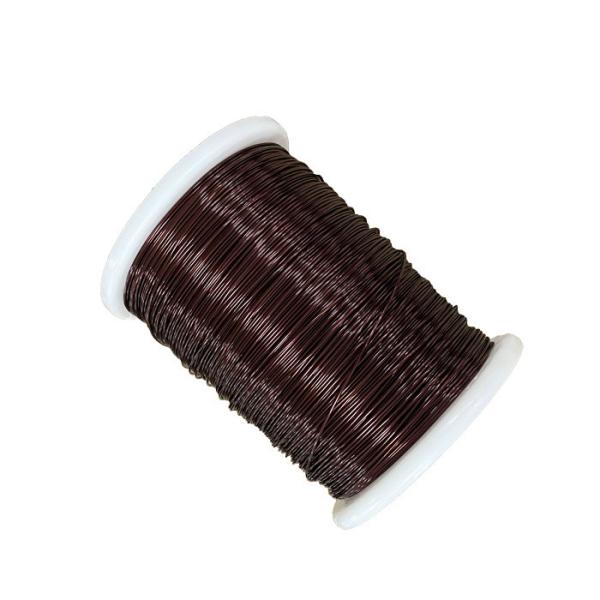

Copper Round Enameled Winding Wire Overcoat Polyamide Imide HAI 0.20mm-2.00mm Single
Copper Round Enameled Winding Wire Overcoat Polyamide Imide HAI 0.20mm-2.00mm Single
Copper Round Enameled Winding Wire Overcoat Polyamide Imide HAI 0.20mm-2.00mm Single
Copper Round Enameled Winding Wire Overcoat Polyamide Imide HAI 0.20mm-2.00mm Single
Specifications
Brand Name :
PEWSC
Model Number :
HAI 0.20mm-2.00mm
Certification :
UL,ROHS
Place of Origin :
China
MOQ :
The MOQ Varies According to the Size of the Specification
Price :
Copper Price plus Processing Fee plus Freight
Payment Terms :
T/T 100% Payment before Shipment
Supply Ability :
Delivery 10-15 Days after Next Order
Delivery Time :
3-5 Work Days
Packaging Details :
Box
Product Name :
HAI 0.20mm-2.00mm
Coating Type :
Polyamide-imide
Size Range :
UEWF
Conductor Material :
Copper
Thermal Class :
For High Temperature Motor
Temperature Grade :
Could be Customized
Specification :
0.20mm-2.00mm
Sample :
Free
Description

Single refers to a thinner wire diameter, suitable for applications with high space requirements or low current loads.

Excellent physical abrasion resistance
Resistance to the elements: The highly uniform and continuous coating of HAI enameled wire enhances its physical resistance to abrasion, making it more resistant to the effects of the elements during use.

In addition, HAI enameled wire offers the following additional benefits:

Cost-effective: Compared to other similar products, HAI enameled wires are reasonably priced and cost-effective, while ensuring high quality and long-term stable electrical performance.

Overall, HAI enameled wire is a very reliable and high-performance solenoid solution on the market due to its high electrical conductivity, good flexibility, outstanding heat resistance and excellent physical abrasion resistance. Choosing HAI is choosing a guarantee of high quality and long-term stable electrical performance.

Copper Round Enameled Winding Wire Overcoat Polyamide Imide HAI 0.20mm-2.00mm SingleCopper Round Enameled Winding Wire Overcoat Polyamide Imide HAI 0.20mm-2.00mm Single

JIS---3種
Unit﹕mm
Diameter of
Conduct		 Conductor Control
Benchmarks		 OD Control
Benchmarks		 Specification
Boundaries		 Conductor
Resistance 20℃
(Ω/KM)		 Insulation breakdownvoltage
(v)		 Min Elongation
(%)		 Max.
Springiness
(°)		 Resistance to
abrasion
Lower
Limit		 Upper
Limit		 Lower
Limit		 Median Upper
Limit		 Min. Increase
in Diameter		 Max. Finished
overall Diameter		 JIS AWG Average Minimum
0.04±0.002 0.039 0.041 0.045 0.047 0.050 0.004 0.052 15670 100 7 11 -- -- --
0.05±0.003 0.049 0.051 0.057 0.060 0.062 0.006 0.064 10240 700 10 14 -- -- --
0.06±0.003 0.059 0.061 0.067 0.070 0.072 0.006 0.075 6966 700 10 15 -- -- --
0.07±0.003 0.069 0.071 0.077 0.080 0.082 0.006 0.085 4990 700 10 17 -- -- --
0.08±0.003 0.079 0.081 0.087 0.091 0.094 0.006 0.097 3778 700 10 17 -- -- --
0.09±0.003 0.089 0.091 0.097 0.101 0.104 0.006 0.107 2959 700 10 18 -- -- --
0.10±0.003 0.099 0.101 0.107 0.110 0.114 0.006 0.118 2381 700 15 19 -- -- --
0.11±0.003 0.109 0.111 0.117 0.121 0.124 0.006 0.128 1957 700 15 19 -- -- --
0.12±0.003 0.119 0.121 0.129 0.132 0.135 0.008 0.139 1636 850 15 20 -- -- --
0.13±0.003 0.129 0.131 0.137 0.142 0.145 0.008 0.149 1389 850 15 20 -- -- --
0.14±0.003 0.139 0.141 0.149 0.152 0.155 0.008 0.159 1193 850 15 21 -- -- --
0.15±0.003 0.149 0.151 0.159 0.162 0.165 0.008 0.169 1037 850 15 21 -- -- --
0.16±0.003 0.159 0.161 0.171 0.174 0.177 0.010 0.181 908.8 850 15 22 -- -- --
0.17±0.003 0.169 0.171 0.181 0.184 0.187 0.010 0.191 803.2 850 15 23 -- -- --
0.18±0.003 0.179 0.181 0.191 0.194 0.197 0.010 0.202 715.0 1000 15 23 -- -- --
0.19±0.003 0.189 0.191 0.201 0.204 0.208 0.010 0.212 640.6 1000 15 23 -- -- --
0.20±0.003 0.198 0.201 0.211 0.214 0.218 0.010 0.222 577.2 1000 15 24 -- -- --
0.21±0.003 0.208 0.212 0.221 0.224 0.228 0.010 0.232 522.8 1000 15 24 -- -- --
0.22±0.004 0.218 0.222 0.231 0.235 0.239 0.010 0.243 480.1 1000 15 24 -- -- --
0.23±0.004 0.228 0.232 0.243 0.246 0.249 0.012 0.255 438.6 1000 15 24 -- -- --
0.24±0.004 0.238 0.242 0.253 0.256 0.259 0.012 0.265 402.2 1000 15 24 -- -- --
0.25±0.004 0.248 0.252 0.263 0.266 0.269 0.012 0.275 370.2 1000 15 25 66 -- --
0.26±0.004 0.258 0.262 0.273 0.276 0.279 0.012 0.285 341.8 1000 15 25 66 163 133
0.27±0.004 0.268 0.272 0.283 0.286 0.289 0.012 0.295 316.6 1000 15 26 61 163 133
0.28±0.004 0.278 0.282 0.293 0.296 0.299 0.012 0.305 294.4 1000 15 26 61 163 133
0.29±0.004 0.288 0.292 0.303 0.306 0.309 0.012 0.315 273.9 1000 20 26 61 163 133
0.30±0.005 0.298 0.302 0.315 0.319 0.323 0.014 0.327 254.0 1400 20 26 61 194 163
0.32±0.005 0.317 0.322 0.335 0.339 0.343 0.014 0.347 222.8 1400 20 26 55 194 163
0.35±0.005 0.347 0.352 0.365 0.369 0.373 0.014 0.377 185.7 1400 20 27 50 194 163
0.37±0.005 0.367 0.372 0.385 0.389 0.393 0.014 0.397 165.9 1400 20 27 50 194 163
0.40±0.005 0.397 0.402 0.415 0.419 0.425 0.014 0.429 141.7 1400 20 27 76 204 163
0.45±0.006 0.446 0.452 0.465 0.469 0.475 0.014 0.479 112.1 1400 20 28 72 204 173
0.50±0.006 0.496 0.502 0.517 0.522 0.527 0.016 0.531 89.95 1450 20 28 67 235 204
0.55±0.006 0.546 0.552 0.567 0.572 0.577 0.016 0.581 74.18 1450 20 29 62 245 204
0.60±0.008 0.596 0.602 0.617 0.623 0.628 0.016 0.632 62.64 1450 20 29 62 245 204
