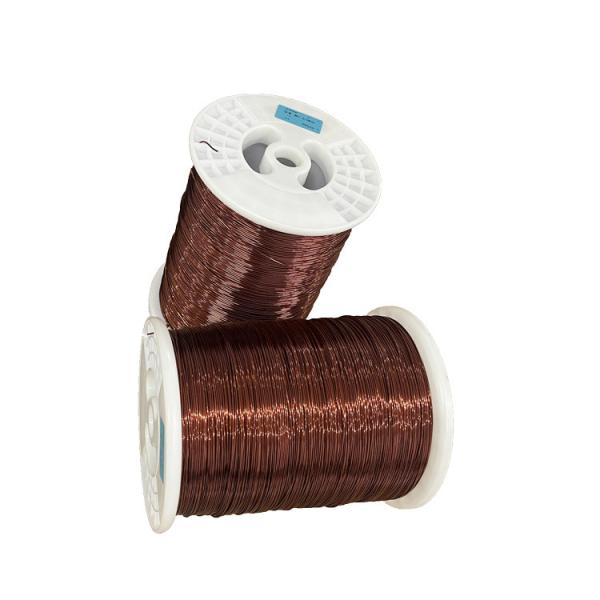

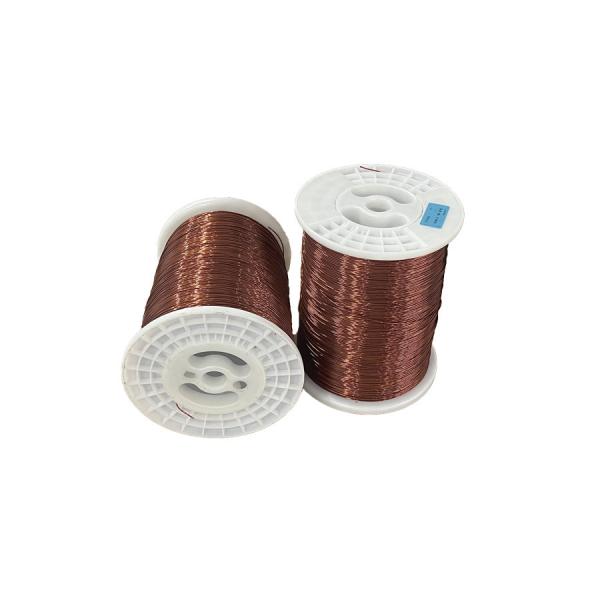

Polyamide Imide Enameled Copper Wire AIW AWG 38-12 for 220℃ Temperature Resistance
Polyamide Imide Enameled Copper Wire AIW AWG 38-12 for 220℃ Temperature Resistance
Polyamide Imide Enameled Copper Wire AIW AWG 38-12 for 220℃ Temperature Resistance
Polyamide Imide Enameled Copper Wire AIW AWG 38-12 for 220℃ Temperature Resistance
Specifications
Brand Name :
PEWSC
Model Number :
PEWF SWG 38-8
Certification :
AWG 38-8
Place of Origin :
China
MOQ :
The MOQ Varies According to the Size of the Specification
Price :
Copper Price plus Processing Fee plus Freight
Payment Terms :
T/T 100% Payment before Shipment
Supply Ability :
Delivery 10-15 Days after Next Order
Delivery Time :
3-5 Work Days
Packaging Details :
Box
Product Name :
PEWF SWG 38-8
Material :
Copper
Size Range :
UEWF
Color Options :
Could be customized
Temperature Grade :
For Special High Tempertaure Motors
Description

AIW AWG 38-12 is suitable for applications with strict requirements on space and weight.

The following are some of the features of this product:

Long-lasting and durable: Its insulation is coated with a high-quality insulating varnish that resists abrasion, corrosion and environmental factors, extending product life.

Flexible and easy to install: The flexibility of the copper wire itself, combined with the fine manufacturing process, makes the enameled copper wire AIW easy to wire and install, and maintains the integrity of the insulation layer even in narrow or complex spaces.

High safety performance: the tightly wrapped insulation layer effectively prevents current leakage, providing a safe electrical environment.

Environmentally friendly materials: the selection of environmentally friendly materials for production, in line with modern environmental requirements, both energy saving and emission reduction.

Technical Support: We have a professional technical team to provide customers with a full range of technical support and consulting services to ensure that customers choose the right product and apply it correctly.Polyamide Imide Enameled Copper Wire AIW AWG 38-12 for 220℃ Temperature Resistance

Polyamide Imide Enameled Copper Wire AIW AWG 38-12 for 220℃ Temperature Resistance

Polyamide Imide Enameled Copper Wire AIW AWG 38-12 for 220℃ Temperature Resistance

GB ---Grade1 Unit﹕mm
Diameter of
Conduct		 Conductor
Tolerance		 Conductor Control
Benchmarks		 OD Control
Benchmarks		 Specification Boundaries Conductor
Resistance 20℃
(Ω/KM)		 Min Elongation
(%)		 Max.
Springiness
(°)		 Insulation breakdown voltage
(v)
Lower
Limit		 Upper
Limit		 Lower
Limit		 Upper
Limit		 Min. Increase
in Diameter		 Max. Finished
overall Diameter
0.040 ±0.002 0.039 0.041 0.045 0.049 0.004 0.049 15202 9 250
0.045 ±0.003 0.044 0.046 0.051 0.055 0.005 0.055 12445 9 275
0.050 ±0.003 0.049 0.051 0.056 0.060 0.005 0.060 9938 10 300
0.056 ±0.003 0.055 0.057 0.063 0.067 0.006 0.067 7815 10 325
0.063 ±0.003 0.062 0.064 0.071 0.076 0.007 0.076 6098 12 375
0.071 ±0.003 0.070 0.072 0.079 0.084 0.007 0.084 4747 13 425
0.080 ±0.003 0.079 0.081 0.088 0.094 0.007 0.094 3703 14 70 425
0.090 ±0.003 0.089 0.091 0.099 0.105 0.008 0.105 2900 15 67 500
0.100 ±0.003 0.099 0.101 0.109 0.116 0.008 0.117 2333 16 64 500
0.112 ±0.003 0.111 0.114 0.122 0.129 0.009 0.130 1848 17 64 1300
0.125 ±0.003 0.124 0.127 0.136 0.143 0.010 0.144 1475 17 62 1500
0.140 ±0.003 0.139 0.142 0.152 0.159 0.011 0.160 1170 18 59 1600
0.160 ±0.003 0.159 0.162 0.173 0.180 0.012 0.182 890.6 19 59 1700
0.180 ±0.003 0.179 0.182 0.195 0.202 0.013 0.204 700.7 20 57 1700
0.200 ±0.003 0.199 0.202 0.216 0.224 0.014 0.226 565.7 21 54 1800
0.224 ±0.003 0.223 0.226 0.241 0.249 0.015 0.252 449.5 21 51 1900
0.250 ±0.004 0.249 0.253 0.270 0.278 0.017 0.281 362.8 22 49 2100
0.280 ±0.004 0.279 0.283 0.301 0.309 0.018 0.312 288.2 22 47 2200
0.315 ±0.004 0.314 0.317 0.337 0.346 0.019 0.349 227.0 23 50 2200
0.355 ±0.004 0.354 0.357 0.378 0.387 0.020 0.392 178.2 23 48 2300
0.400 ±0.005 0.398 0.403 0.425 0.435 0.021 0.439 140.7 24 45 2300
0.450 ±0.005 0.448 0.453 0.476 0.486 0.022 0.491 110.9 25 44 2300
0.500 ±0.005 0.498 0.503 0.528 0.538 0.024 0.544 89.59 25 43 2400
0.560 ±0.006 0.557 0.563 0.589 0.599 0.025 0.606 71.53 26 41 2500
0.630 ±0.006 0.627 0.633 0.661 0.673 0.027 0.679 56.38 27 46 2600
0.710 ±0.007 0.707 0.714 0.743 0.755 0.028 0.672 44.42 28 44 2600
0.800 ±0.008 0.797 0.804 0.835 0.847 0.030 0.855 35.00 28 41 2600
0.900 ±0.009 0.897 0.904 0.937 0.949 0.032 0.959 27.65 29 45 2700
1.000 ±0.010 0.997 1.004 1.039 1.053 0.034 1.062 22.40 30 42 2700
1.120 ±0.011 1.116 1.124 1.159 1.193 0.034 1.184 17.85 30 39 2700
1.250 ±0.013 1.246 1.254 1.290 1.304 0.035 1.316 14.35 31 35 2700
1.400 ±0.014 1.396 1.406 1.443 1.458 0.036 1.468 11.43 32 32 2700
1.600 ±0.016 1.596 1.606 1.645 1.660 0.038 1.670 8.75 32 28 2700
