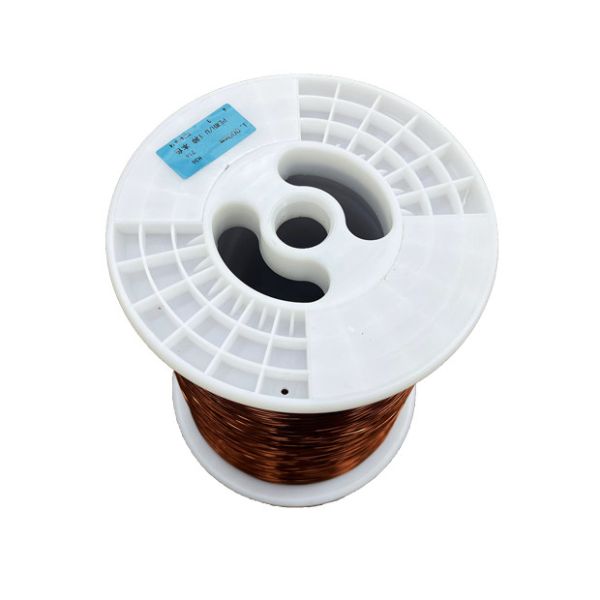

Solid or Stranded Enamel Insulated Copper Wire With Certifications
Solid or Stranded Enamel Insulated Copper Wire With Certifications
Solid or Stranded Enamel Insulated Copper Wire With Certifications
Solid or Stranded Enamel Insulated Copper Wire With Certifications
Specifications
Brand Name :
PEWSC
Model Number :
PEWH
Place of Origin :
China
Certification :
UL,ROHS
MOQ :
The MOQ varies according to the size of the specification
Price :
Copper price plus processing fee plus freight
Payment Terms :
T/T 100% payment before shipment
Supply Ability :
Delivery 10-15 days after next order
Delivery Time :
3-5 work days
Packaging Details :
Box
Certifications :
CE, RoHS, UL
Diameter :
0.04mm-1.00mm
Material :
Copper
Temperature Grade :
180℃
Color Option :
Natural、Red、Green
Shape :
Round
Conductor Type :
Solid Or Stranded
Conductor Material :
Copper
Description

Features:

  • Product Name: Enamel Insulated Copper Wire
  • Material: Copper
  • Color Option: Natural,Red,Green
  • Certifications: CE, RoHS, UL
  • Shape: Round
  • Standard: JIS

This Enamel Insulated Copper Wire, also known as Magnetic Wire with Enamel Insulation or Enameled Magnet Wire, is made of high-quality copper and is available in natural, red, and green colors. It is certified by CE, RoHS, and UL, ensuring its safety and reliability. The wire is round in shape and meets the JIS standard.

Applications:

PEWSC Enamel Insulated Copper Wire is an ideal choice for various industrial applications that require high-performance, including motors, transformers, generators, and other electrical equipment. This product is perfect for the production of electric coils, solenoids, and other electromagnetic products.

This Insulated Copper Magnet Wire is made with a Copper Enameled Coated Conductor that provides superior electrical conductivity and thermal stability. The conductor material is copper, which is known for its excellent conductivity and ductility. The wire is available in both solid and stranded conductor types for added flexibility in use.

The Temperature Grade of the PEWSC Enamel Insulated Copper Wire is 180℃, making it highly resistant to heat and ensuring safe and efficient operation in high-temperature environments. The wire is also coated with a high-quality insulation material that offers excellent resistance to abrasion, moisture, and chemicals, making it ideal for use in harsh environments.

PEWSC Enamel Insulated Copper Wire has passed several certifications, including CE, RoHS, and UL, ensuring that it meets the highest quality standards. These certifications mean that the product is safe, reliable, and environmentally friendly.

In summary, PEWSC Enamel Insulated Copper Wire is an excellent choice for various industrial applications that require high-performance, durable, and reliable electrical wiring. This Insulated Copper Magnet Wire provides superior electrical conductivity, thermal stability, and resistance to abrasion, moisture, and chemicals, making it ideal for use in harsh environments.

Solid or Stranded Enamel Insulated Copper Wire With Certifications

JIS---0種 Unit﹕mm

Diameter of Conduct		 Conductor Control
Benchmarks		 OD Control Benchmarks Specification Boundaries Conductor
Resistance 20℃
(Ω/KM)		 Insulation breakdown voltage
(v)		 Min Elongation(%) Max.
Springiness
(°)		 Resistance to abrasion
Lower
Limit		 Upper
Limit		 Lower
Limit		 Median Upper
Limit		 Min.Increase in Diameter
(mm)		 Max. Finished overall Diameter
(mm)		 JIS AWG Average Minimum
0.06±0.003 0.059 0.061 0.093 0.098 0.103 0.030 0.110 6966 2500 10 15 -- -- --
0.07±0.003 0.069 0.071 0.103 0.108 0.113 0.030 0.120 4990 2500 10 17 -- -- --
0.08±0.003 0.079 0.081 0.115 0.120 0.125 0.032 0.133 3778 3000 10 17 -- -- --
0.09±0.003 0.089 0.091 0.125 0.130 0.135 0.032 0.143 2959 3000 10 18 -- -- --
0.10±0.008 0.098 0.101 0.134 0.139 0.144 0.032 0.156 2647 3500 15 19 -- -- --
0.11±0.008 0.108 0.111 0.144 0.149 0.154 0.032 0.166 2153 3500 15 19 -- -- --
0.12±0.008 0.118 0.121 0.156 0.161 0.166 0.034 0.180 1786 3750 15 20 -- -- --
0.13±0.008 0.128 0.131 0.162 0.171 0.176 0.034 0.190 1505 3750 15 20 -- -- --
0.14±0.008 0.138 0.141 0.176 0.181 0.186 0.034 0.200 1286 3750 15 21 -- -- --
0.15±0.008 0.148 0.151 0.186 0.191 0.196 0.034 0.210 1111 3750 15 21 -- -- --
0.16±0.008 0.158 0.161 0.198 0.203 0.208 0.036 0.222 969.5 3750 15 22 -- -- --
0.17±0.008 0.168 0.171 0.208 0.213 0.218 0.036 0.232 853.5 3750 15 23 -- -- --
0.18±0.008 0.178 0.181 0.220 0.225 0.230 0.038 0.246 757.2 3800 15 23 -- -- --
0.19±0.008 0.188 0.191 0.230 0.235 0.240 0.038 0.256 676.2 3800 15 23 -- -- --
0.20±0.008 0.198 0.201 0.240 0.245 0.250 0.038 0.266 607.6 3800 15 24 -- -- --
0.21±0.008 0.207 0.212 0.250 0.255 0.260 0.038 0.276 549.0 3800 15 24 -- -- --
0.22±0.008 0.217 0.222 0.260 0.265 0.270 0.038 0.286 498.4 3800 15 24 -- -- --
0.23±0.008 0.227 0.232 0.272 0.277 0.282 0.040 0.298 454.5 3800 15 24 -- -- --
0.24±0.008 0.237 0.242 0.282 0.287 0.292 0.040 0.308 416.2 3800 15 24 -- -- --
0.25±0.008 0.247 0.252 0.292 0.297 0.302 0.040 0.318 382.5 3800 15 25 66 -- --
0.26±0.010 0.257 0.262 0.302 0.307 0.312 0.040 0.330 358.4 3800 15 25 66 551 479
0.27±0.010 0.267 0.272 0.312 0.317 0.322 0.040 0.340 331.4 3800 15 26 61 551 479
0.28±0.010 0.277 0.282 0.322 0.327 0.332 0.040 0.350 307.3 3800 15 26 61 561 479
0.29±0.010 0.287 0.292 0.332 0.337 0.342 0.040 0.360 285.7 3800 20 26 61 561 490
0.30±0.010 0.297 0.302 0.344 0.349 0.354 0.042 0.374 262.9 4200 20 26 61 592 510
0.32±0.010 0.316 0.322 0.364 0.369 0.374 0.042 0.394 230.0 4200 20 26 55 602 510
0.35±0.010 0.346 0.352 0.394 0.399 0.404 0.042 0.424 191.2 4200 20 27 50 612 520
0.37±0.010 0.366 0.372 0.416 0.421 0.426 0.044 0.446 170.6 4200 20 27 50 643 551
0.40±0.010 0.396 0.402 0.448 0.454 0.460 0.046 0.480 145.3 4200 20 27 76 683 581
0.45±0.010 0.445 0.452 0.500 0.506 0.512 0.048 0.532 114.2 4200 20 28 72 724 622
0.50±0.010 0.495 0.502 0.552 0.558 0.564 0.050 0.586 91.43 4500 20 28 67 765 653
0.55±0.020 0.545 0.552 0.602 0.608 0.614 0.050 0.646 78.15 4500 20 29 62 775 663
0.60±0.020 0.595 0.602 0.654 0.661 0.668 0.052 0.698 65.26 4500 20 29 62 816 694
0.65±0.020 0.645 0.653 0.707 0.715 0.723 0.054 0.752 55.31 4500 20 29 58 857 734
0.70±0.020 0.695 0.703 0.759 0.767 0.775 0.056 0.804 47.47 4500 20 30 53 898 765
0.75±0.020 0.745 0.753 0.813 0.822 0.831 0.060 0.860 41.19 5100 20 30 53 979 826
0.80±0.020 0.794 0.803 0.865 0.874 0.883 0.062 0.914 36.08 5100 25 30 66 1010 867
0.85±0.020 0.844 0.853 0.917 0.926 0.935 0.064 0.966 31.87 5100 25 30 66 1020 898
0.90±0.020 0.894 0.903 0.969 0.978 0.987 0.066 1.020 28.35 5100 25 31 62 1120 928
0.95±0.020 0.944 0.953 1.021 1.031 1.041 0.068 1.072 25.38 5100 25 31 62 1120 969
1.00±0.030 0.994 1.003 1.075 1.085 1.095 0.072 1.138 23.33 5100 25 32 58 1220 1020
1.10±0.030 1.093 1.103 1.179 1.190 1.201 0.074 1.242 19.17 5900 25 32 54 1220 1020
1.20±0.030 1.193 1.203 1.279 1.290 1.301 0.074 1.342 16.04 5900 25 32 54 1330 1120
1.30±0.030 1.293 1.305 1.383 1.395 1.407 0.078 1.448 13.61 5900 25 33 50 1330 1120
1.40±0.030 1.393 1.405 1.483 1.495 1.507 0.078 1.548 11.70 5900 25 33 46 1330 1120
1.50±0.030 1.493 1.505 1.587 1.599 1.611 0.082 1.654 10.16 5900 25 33 46 1430 1220
1.60±0.030 1.592 1.605 1.687 1.699 1.711 0.082 1.754 8.906 5900 25 33 42 1430 1220
1.70±0.030 1.692 1.703 1.789 1.801 1.813 0.084 1.856 7.871 6300 25 33 -- 1530 1330
1.80±0.030 1.792 1.803 1.889 1.901 1.913 0.084 1.956 7.007 6300 25 34 -- 1530 1330
1.90±0.030 1.892 1.903 1.993 2.005 2.017 0.088 2.062 6.278 6300 25 34 -- 1630 1330
2.00±0.030 1.992 2.003 2.093 2.105 2.117 0.088 2.162 5.656 6300 30 34 -- 1630 1330
2.10±0.030 2.090 2.104 2.195 2.208 2.221 0.090 2.266 5.123 6300 30 34 -- 1630 1430
2.20±0.030 2.19 2.204 2.297 2.310 2.323 0.092 2.368 4.662 6300 30 35 -- 1730 1430
2.30±0.030 2.29 2.304 2.397 2.410 2.423 0.092 2.468 4.260 6300 30 35 -- 1730 1430
2.40±0.030 2.390 2.404 2.501 2.515 2.529 0.096 2.574 3.908 6300 30 35 -- 1840 1530
2.50±0.030 2.490 2.504 2.603 2.617 2.631 0.098 2.678 3.598 6300 30 35 -- 1840 1530
2.60±0.030 2.590 2.604 2.703 2.717 2.731 0.098 2.778 3.324 6300 30 35 -- 1840 1530
2.70±0.030 2.690 2.704 2.803 2.817 2.831 0.098 2.878 3.079 6300 30 35 -- -- --
2.80±0.030 2.790 2.804 2.903 2.917 2.931 0.098 2.978 2.861 6300 30 36 -- -- --
2.90±0.030 2.890 2.904 3.003 3.017 3.031 0.098 3.078 2.665 6300 30 36 -- -- --
3.00±0.030 2.99 3.004 3.103 3.117 3.131 0.098 3.178 2.489 6300 30 36 -- -- --
3.20±0.030 3.19 3.204 3.303 3.319 3.335 0.098 3.388 2.198 6300 30 36 -- -- --
