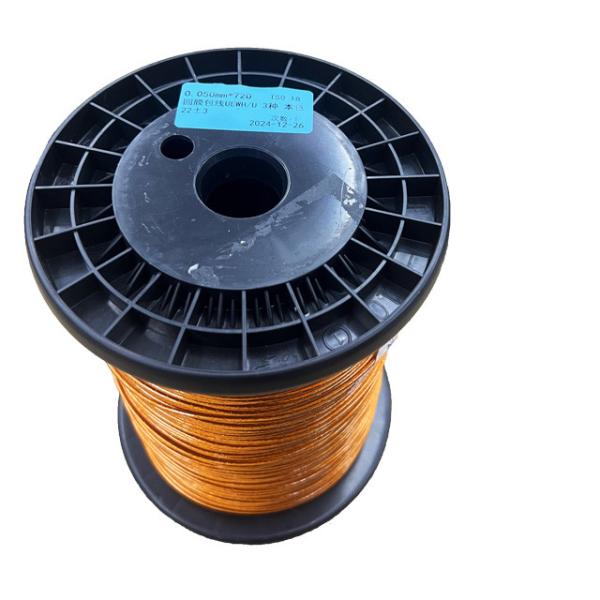

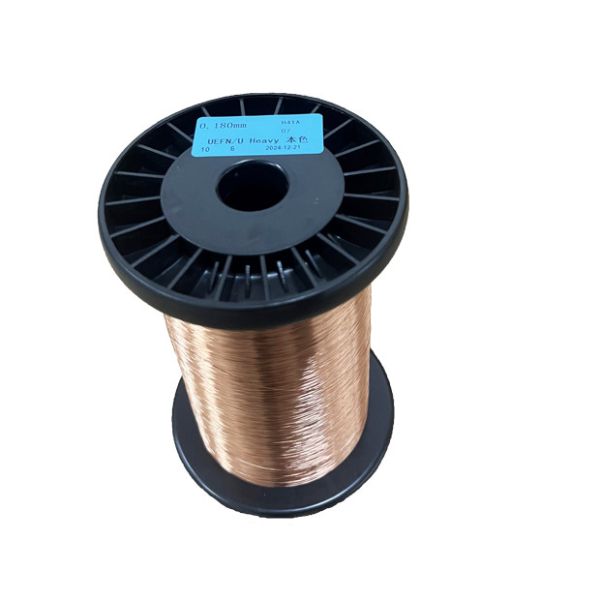

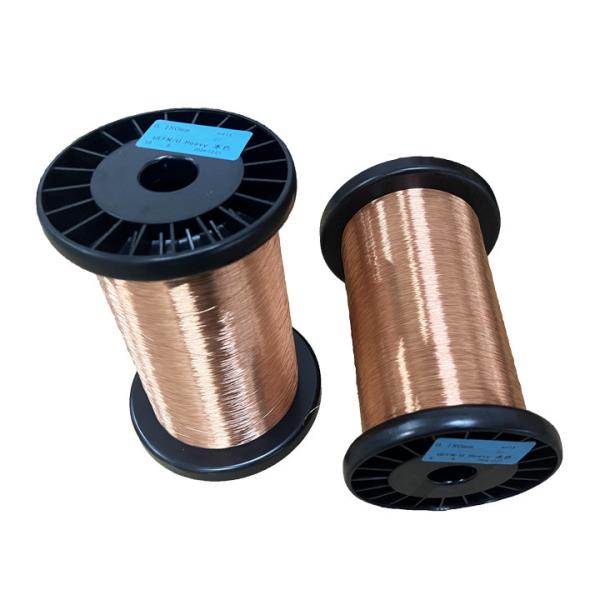

UEFN Heavy Overcoat Polyamide Imide Wire AWG 46-10 With 155° Temperture Grade For Vaious Colors with NEMA Standard
UEFN Heavy Overcoat Polyamide Imide Wire AWG 46-10 With 155° Temperture Grade For Vaious Colors with NEMA Standard
UEFN Heavy Overcoat Polyamide Imide Wire AWG 46-10 With 155° Temperture Grade For Vaious Colors with NEMA Standard
UEFN Heavy Overcoat Polyamide Imide Wire AWG 46-10 With 155° Temperture Grade For Vaious Colors with NEMA Standard
Specifications
Brand Name :
PEWSC
Model Number :
UEFN Heavy Overcoat Polymide
Certification :
UL
Place of Origin :
China
MOQ :
The MOQ Varies According to the Size of the Specification
Price :
Copper Price plus Processing Fee plus Freight
Payment Terms :
T/T 100% Payment before Shipment
Supply Ability :
Delivery 10-15 Days after Next Order
Delivery Time :
3-5 Work Days
Packaging Details :
Carton
Product Name :
UEFN Heavy Overcoat Polymide
Temperature Resistance :
Up to 155℃
Size :
MW-80C
Standard :
JIS
Shape :
Round
Colors Option :
Vaious Colors
Packing :
Box
Sample :
Free
Description

High-frequency performance: UEF1 enameled wire is suitable for high-frequency signal transmission, which means it can maintain good electrical properties under high-frequency conditions, suitable for use in electronics, electrical appliances and other fields.

Dyeable Characteristics: UEF1 enameled wire has dyeable characteristics, which makes it possible to quickly identify and differentiate different connecting wires through color coding when carrying out maintenance and overhauling of electrical equipment, which greatly improves work efficiency.

Direct Weldability: UEF1 enameled wire has direct weldability, which means that the windings and coils can be directly welded during the motor manufacturing process, simplifying the welding process and reducing the cost of motor manufacturing.

UEFN's insulation layer contains special conductive fillers that effectively block external electromagnetic fields. This gives UEFN an advantage in applications with strict EMC requirements.

Overall, UEFN is a high-end enamelled wire with outstanding performance in terms of abrasion resistance, flexibility, heat resistance and electromagnetic shielding. It is widely used in the manufacturing of windings for high power motors, transformers and other industrial electrical equipment.

UEFN Heavy Overcoat Polyamide Imide Wire AWG 46-10 With 155° Temperture Grade For Vaious Colors with NEMA StandardUEFN Heavy Overcoat Polyamide Imide Wire AWG 46-10 With 155° Temperture Grade For Vaious Colors with NEMA Standard

NEMA---Heavy Unit﹕mm
AWG Diameter of
Conduct		 Conductor Control
Benchmarks		 OD Control
Benchmarks		 Specification Boundaries Conductor
Resistance 20℃
(Ω/KM)		 Insulation breakdownvoltage
(v)		 Min Elongation
(%)		 Max.
Springiness
(°)		 Resistance to
abrasion
Lower
Limit		 Upper
Limit		 Lower
Limit		 Median Upper
Limit		 Min. Increase
in Diameter		 Max. Finished
overall Diameter		 Average Minimum
44 0.051 +0.002 0.050 0.052 0.062 0.064 0.066 0.010 0.066 9527.95 1300 14 -- -- --
-0.003
43 0.056 +0.002 0.055 0.057 0.068 0.070 0.072 0.010 0.074 7815.03 1400 15 -- -- --
-0.003
42 0.064 +0.002 0.063 0.065 0.079 0.081 0.083 0.013 0.084 5899.6 1675 16 -- -- --
-0.003
41 0.071 +0.003 0.070 0.072 0.086 0.088 0.090 0.013 0.094 4610.88 1675 17 -- -- --
-0.002
40 0.079 +0.002 0.078 0.080 0.094 0.096 0.098 0.013 0.104 3800.62 1800 17 -- -- --
-0.003
39 0.089 +0.002 0.088 0.090 0.106 0.109 0.112 0.015 0.114 2968.15 1975 18 -- -- --
-0.003
38 0.102 +0.002 0.101 0.103 0.122 0.125 0.128 0.018 0.130 2239.81 2150 19 -- -- --
-0.003
37 0.114 +0.003 0.113 0.115 0.134 0.137 0.140 0.018 0.145 1750.03 2325 20 -- -- --
-0.002
36 0.127 +0.003 0.126 0.128 0.149 0.152 0.155 0.020 0.160 1427.71 2525 20 -- -- --
-0.003
35 0.142 +0.003 0.141 0.143 0.167 0.170 0.173 0.023 0.178 1120.02 2750 21 -- -- --
-0.002
34 0.16 +0.003 0.159 0.161 0.185 0.188 0.191 0.023 0.198 890.6 2975 22 -- -- --
-0.003
33 0.18 +0.003 0.179 0.181 0.207 0.211 0.215 0.025 0.221 692.85 3250 23 -- -- --
-0.002
32 0.203 +0.003 0.202 0.205 0.233 0.237 0.241 0.028 0.246 543.36 3525 24 -- -- --
-0.002
31 0.226 +0.003 0.225 0.228 0.258 0.262 0.266 0.030 0.274 437.51 3825 24 -- -- --
-0.002
30 0.254 +0.002 0.252 0.256 0.289 0.293 0.297 0.033 0.307 348.45 4150 25 66 525 450
-0.003
29 0.287 +0.003 0.285 0.289 0.328 0.332 0.336 0.038 0.338 272.17 4250 26 61 560 480
-0.003
28 0.32 +0.003 0.318 0.322 0.364 0.368 0.372 0.041 0.373 217.08 4375 26 55 595 510
-0.002
27 0.361 +0.002 0.358 0.363 0.404 0.409 0.414 0.041 0.419 171.28 4500 27 50 635 540
-0.003
26 0.404 +0.002 0.401 0.406 0.449 0.454 0.459 0.043 0.462 137.89 4600 27 76 675 575
-0.005
25 0.455 +0.002 0.452 0.457 0.503 0.508 0.513 0.046 0.516 108.41 4725 28 72 720 615
-0.005
24 0.511 +0.002 0.507 0.513 0.561 0.566 0.571 0.048 0.577 86.08 4850 28 67 770 655
-0.006
23 0.574 +0.003 0.570 0.576 0.627 0.632 0.637 0.051 0.643 67.80 5000 29 62 820 700
-0.005
22 0.643 +0.002 0.639 0.645 0.698 0.703 0.708 0.053 0.714 54.44 5125 29 58 880 750
-0.008
21 0.724 +0.002 0.720 0.726 0.782 0.788 0.794 0.056 0.800 42.82 5250 30 53 940 800
-0.008
20 0.813 +0.005 0.808 0.816 0.877 0.883 0.889 0.061 0.892 33.88 5400 30 66 1000 850
-0.008
19 0.912 +0.005 0.907 0.915 0.979 0.985 0.991 0.064 0.993 26.98 5550 31 62 1070 910
-0.010
18 1.024 +0.005 1.019 1.027 1.093 1.099 1.105 0.066 1.110 21.39 5700 32 58 1150 980
-0.011
17 1.151 +0.005 1.145 1.154 1.225 1.231 1.237 0.071 1.240 16.95 5850 32 54 1230 1045
-0.013
16 1.29 +0.008 1.284 1.293 1.368 1.374 1.380 0.074 1.384 13.44 6000 33 50 1310 1115
-0.012
15 1.450 +0.008 1.444 1.453 1.530 1.536 1.542 0.076 1.549 10.66 6175 33 46 1400 1190
-0.015
14 1.628 +0.008 1.621 1.631 1.713 1.720 1.727 0.081 1.732 8.44 6325 33 42 1490 1270
-0.015
13 1.829 +0.010 1.822 1.832 1.915 1.922 1.929 0.081 1.935 6.69 5600 34 -- 1490 1270
-0.018
12 2.052 +0.010 2.044 2.056 2.138 2.146 2.154 0.081 2.162 5.32 5800 34 -- 1490 1270
-0.02
11 2.304 +0.012 2.296 2.308 2.393 2.402 2.411 0.084 2.418 4.22 6000 35 -- 1490 1270
-0.023
10 2.588 +0.013 2.580 2.592 2.682 2.690 2.698 0.086 2.703 3.34 6200 35 -- 1940 1270
-0.025
9 2.906 +0.015 2.896 2.910 3.000 3.009 3.018 0.086 3.023 2.65 3200 36 -- -- --
-0.028
8 3.264 +0.018 3.254 3.268 3.361 3.370 3.378 0.089 3.383 2.1 3300 36 -- -- --
-0.033
The above single wear resistance values apply to MW-5C 35C 81C 30C 75C 79C 80C 76C 28C 24C. The voltage resistance applies to MW-5C 35C 81C 30C 75C 79C 26C 77C.
