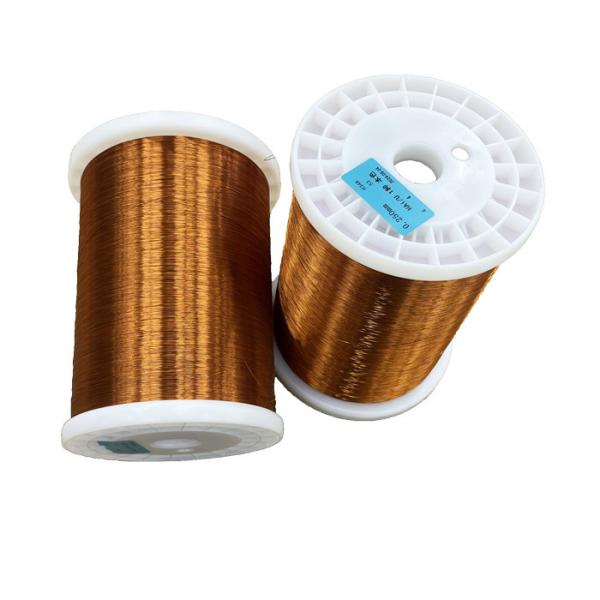

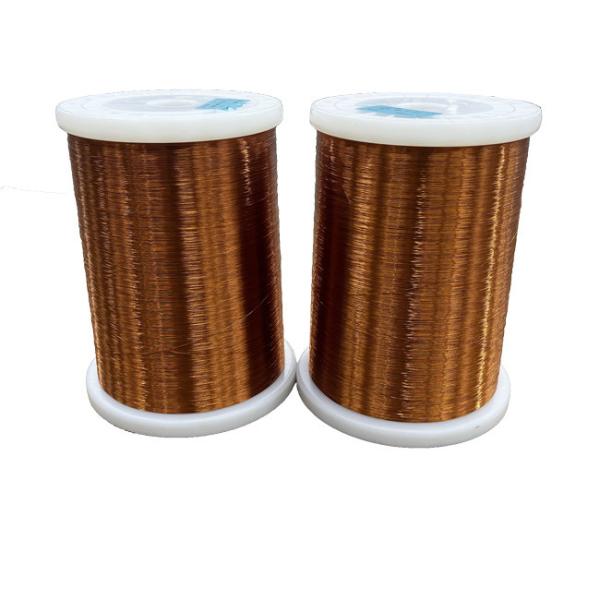

Overcoat Polyamide-Imide Enameled Copper Winding HAI Round Wire For Power Tools with Temperature Grade 180
Overcoat Polyamide-Imide Enameled Copper Winding HAI Round Wire For Power Tools with Temperature Grade 180
Overcoat Polyamide-Imide Enameled Copper Winding HAI Round Wire For Power Tools with Temperature Grade 180
Overcoat Polyamide-Imide Enameled Copper Winding HAI Round Wire For Power Tools with Temperature Grade 180
Specifications
Brand Name :
PEWSC
Model Number :
PEWH AWG 38-8
Certification :
UL,ROHS
Place of Origin :
China
MOQ :
The MOQ Varies According to the Size of the Specification
Price :
Copper Price plus Processing Fee plus Freight
Payment Terms :
T/T 100% Payment before Shipment
Supply Ability :
Delivery 10-15 Days after Next Order
Delivery Time :
3-5 Work Days
Packaging Details :
Box
Product Name :
HAI SWG 38-8
Coating Type :
Polyamide-imide
Size Range :
0.05mm-0.80mm
Conductor Material :
Copper
Voltage Rating :
2800V The Voltage Resistance varies According to the Thickness of the Film and the Size of the Specification
Temperature Grade :
180℃
Application :
For High Voltage Solenoid Coil
Description

Grade 3 is the thinnest insulation level, suitable for applications with strict requirements on space and weight.

High Conductivity: The conductor portion of HAI enameled wire is made of highly conductive copper material, which ensures good current transfer capability and low resistance loss. This high conductivity enables HAI enameled wire to transmit current efficiently in electrical equipment such as motors and transformers, thus improving the overall performance and efficiency of the equipment.

Outstanding Heat Resistance: HAI enameled wire utilizes specially modified insulating coatings and advanced manufacturing processes to ensure outstanding heat resistance. This outstanding heat resistance enables HAI enameled wire to work stably in high temperature environments, thus ensuring the performance and reliability of electrical equipment under high temperature conditions.

Excellent Physical Abrasion Resistance: A key feature of HAI products is their highly uniform and continuous coating, which has been specially designed to provide not only excellent electrical insulation, but also enhanced physical abrasion resistance and aging resistance. This excellent physical abrasion and aging resistance makes HAI enameled wires more resistant to external influences during use, thus extending their service life.

Wide range of applications: HAI enameled wire is widely used in high-performance motors, transformers, household appliances, and electrical installations in automotive and aerospace systems. In these applications, it not only enhances the overall effectiveness and efficiency of the system, but also effectively extends the service life of the equipment and reduces maintenance costs.

In addition to the features mentioned above, HAI enameled wire has the following advantages:

Environmentally friendly: HAI enameled wire is made of environmentally friendly materials and meets international environmental standards, making it safer to use and minimizing the impact on the environment.

In conclusion, HAI enameled wire is a very reliable and high-performance electromagnetic wire solution on the market due to its high electrical conductivity, good flexibility, excellent heat resistance, excellent physical abrasion resistance and wide range of applications. Choosing HAI is choosing a guarantee of high quality and long-term stable electrical performance.

Overcoat Polyamide-Imide Enameled Copper Winding HAI Round Wire For Power Tools with Temperature Grade 180Overcoat Polyamide-Imide Enameled Copper Winding HAI Round Wire For Power Tools with Temperature Grade 180

GB ---Grade3 Unit﹕mm
Diameter of
Conduct		 Conductor
Tolerance		 Conductor Control
Benchmarks		 OD Control
Benchmarks		 Specification Boundaries Conductor
Resistance 20℃
(Ω/KM)		 Min Elongation
(%)		 Max.
Springiness
(°)		 Insulation breakdown voltage
(v)
Lower
Limit		 Upper
Limit		 Lower
Limit		 Upper
Limit		 Min. Increase
in Diameter		 Max. Finished
overall Diameter
0.071 ±0.003 0.070 0.072 0.09 0.095 0.018 0.097 4747 13 -- 1100
0.080 ±0.003 0.079 0.081 0.101 0.107 0.020 0.108 3703 14 100 1200
0.090 ±0.003 0.089 0.091 0.113 0.119 0.022 0.120 2900 15 94 1300
0.100 ±0.003 0.099 0.101 0.124 0.131 0.023 0.132 2333 16 90 1400
0.112 ±0.003 0.111 0.114 0.139 0.146 0.026 0.147 1848 17 88 3900
0.125 ±0.003 0.124 0.127 0.154 0.161 0.028 0.163 1475 17 84 4100
0.140 ±0.003 0.139 0.142 0.171 0.178 0.030 0.181 1170 18 79 4200
0.160 ±0.003 0.159 0.162 0.194 0.201 0.033 0.205 890.6 19 78 4400
0.180 ±0.003 0.179 0.182 0.218 0.225 0.036 0.229 700.7 20 75 4700
0.200 ±0.003 0.199 0.202 0.241 0.249 0.039 0.252 565.7 21 72 5100
0.224 ±0.003 0.223 0.226 0.269 0.277 0.043 0.280 449.5 21 68 5200
0.250 ±0.004 0.249 0.253 0.301 0.309 0.048 0.312 362.8 22 65 5500
0.280 ±0.004 0.279 0.283 0.333 0.341 0.050 0.345 288.2 22 61 5800
0.315 ±0.004 0.314 0.317 0.371 0.38 0.053 0.384 227.0 23 62 6100
0.355 ±0.004 0.354 0.357 0.415 0.423 0.057 0.428 178.2 23 59 6400
0.400 ±0.005 0.398 0.403 0.464 0.474 0.060 0.478 140.7 24 55 6600
0.450 ±0.005 0.448 0.453 0.518 0.528 0.064 0.533 110.9 25 53 6800
0.500 ±0.005 0.498 0.503 0.571 0.581 0.067 0.587 89.59 25 51 7000
0.560 ±0.006 0.557 0.563 0.635 0.645 0.071 0.653 71.53 26 48 7100
0.630 ±0.006 0.627 0.633 0.709 0.721 0.075 0.728 56.38 27 53 7100
0.710 ±0.007 0.707 0.714 0.795 0.807 0.080 0.814 44.42 28 50 7200
0.800 ±0.008 0.797 0.804 0.89 0.902 0.085 0.911 35.00 28 46 7400
0.900 ±0.009 0.897 0.904 0.995 1.007 0.090 1.018 27.65 29 51 7600
1.000 ±0.010 0.997 1.004 1.1 1.114 0.095 1.124 22.40 30 47 7600
1.120 ±0.011 1.116 1.124 1.223 1.237 0.098 1.248 17.85 30 34 7600
1.250 ±0.013 1.246 1.254 1.355 1.369 0.100 1.381 14.35 31 39 7600
1.400 ±0.014 1.396 1.406 1.509 1.523 0.103 1.535 11.43 32 36 7600
1.600 ±0.016 1.596 1.606 1.714 1.73 0.107 1.740 8.75 32 32 7600
1.800 ±0.018 1.796 1.806 1.917 1.933 0.110 1.944 6.91 32 7600
2.000 ±0.020 1.994 2.006 2.12 2.136 0.113 2.148 5.60 33 7600
2.240 ±0.022 2.234 2.246 2.363 2.381 0.116 2.392 4.46 33 7600
2.500 ±0.025 2.494 2.506 2.626 2.644 0.119 2.656 3.58 33 7600
2.800 ±0.028 2.794 2.808 2.932 2.95 0.123 2.961 2.86 34 3800
3.150 ±0.032 3.144 3.158 3.286 3.306 0.127 3.316 2.26 34 3800

Overcoat Polyamide-Imide Enameled Copper Winding HAI Round Wire For Power Tools with Temperature Grade 180
