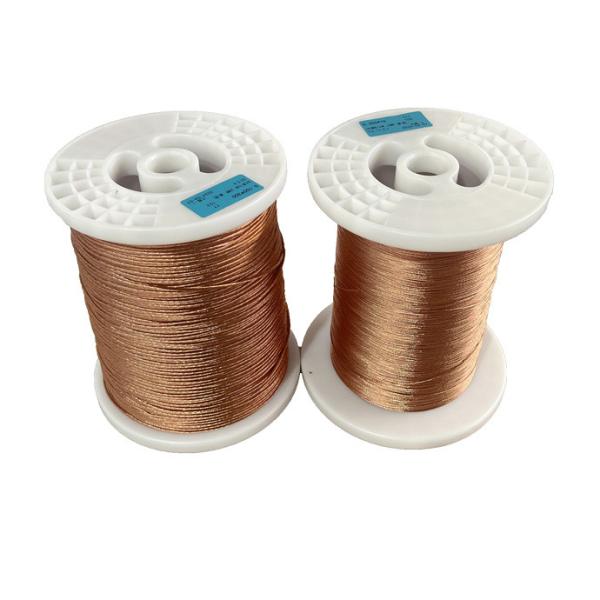

Polyurethane Enamelled Round Copper Wire UEW Single SWG 46-11 For Solderable Material Small Transformer
Polyurethane Enamelled Round Copper Wire UEW Single SWG 46-11 For Solderable Material Small Transformer
Polyurethane Enamelled Round Copper Wire UEW Single SWG 46-11 For Solderable Material Small Transformer
Polyurethane Enamelled Round Copper Wire UEW Single SWG 46-11 For Solderable Material Small Transformer
Specifications
Brand Name :
PEWSC
Model Number :
UEW SWG 46-11
Certification :
UL
Place of Origin :
China
MOQ :
The MOQ Varies According to the Size of the Specification
Price :
Copper Price plus Processing Fee plus Freight
Payment Terms :
T/T 100% Payment before Shipment
Supply Ability :
Delivery 10-15 Days after Next Order
Delivery Time :
3-5 Work Days
Packaging Details :
Box
Conductor Material :
Copper
Size Range :
UEW SWG 46-11
Package :
Spool
Voltage Rating :
For High Temperature Motor
Temperature Grade :
130°C
Application :
For Solderable Material、Small Transformer
Product Name :
UEW Single SWG 46-11
Description

In general, UEW enameled wire is a high-performance and high-reliability product, which is widely used in the winding manufacturing field of high-end motors, transformers and other electrical equipment. Its excellent heat, insulation, and mechanical properties make it the material of choice for many industrial applications.U1 is a single-layer winding enameled wire, which is relatively simple to wind, and is mainly used in low-power and low-current occasions

1.Good mechanical properties. UEW combines high tensile strength and flexibility to withstand a wide range of mechanical stresses during the manufacturing of motor stator windings.

2.Excellent chemical resistance. UEW's insulation is highly resistant to most chemicals and solvents, and provides reliable insulation in harsh environments.

Single refers to a thinner wire size and is suitable for applications with higher space requirements or lower current loads.

Polyurethane Enamelled Round Copper Wire UEW Single SWG 46-11 For Solderable Material Small Transformer

Polyurethane Enamelled Round Copper Wire UEW Single SWG 46-11 For Solderable Material Small Transformer

NEMA---Single Unit﹕mm
AWG Diameter of
Conduct		 Conductor Control
Benchmarks		 OD Control
Benchmarks		 Specification Boundaries Conductor
Resistance 20℃
(Ω/KM)		 Insulation breakdownvoltage
(v)		 Min Elongation
(%)		 Max.
Springiness
(°)		 Resistance to
abrasion
Lower
Limit		 Upper
Limit		 Lower
Limit		 Median Upper
Limit		 Min. Increase
in Diameter		 Max. Finished
overall Diameter		 Average Minimum
44 0.051 +0.002 0.050 0.052 0.056 0.059 0.060 0.005 0.061 9527.95 500 14 -- -- --
-0.003
43 0.056 +0.002 0.055 0.057 0.063 ------- 0.066 0.005 0.069 7815.03 550 15 -- -- --
-0.003
42 0.064 +0.002 0.063 0.065 0.071 0.073 0.075 0.005 0.076 5899.60 625 16 -- -- --
-0.003
41 0.071 +0.003 0.070 0.072 0.079 0.081 0.083 0.008 0.084 4610.88 700 17 -- -- --
-0.002
40 0.079 +0.002 0.078 0.080 0.087 0.090 0.093 0.008 0.094 3800.62 775 17 -- -- --
-0.003
39 0.089 +0.002 0.088 0.090 0.099 0.102 0.105 0.008 0.107 2968.15 850 18 -- -- --
-0.003
38 0.102 +0.002 0.101 0.103 0.111 0.114 0.117 0.008 0.118 2239.81 950 19 -- -- --
-0.003
37 0.114 +0.003 0.113 0.115 0.125 0.128 0.131 0.010 0.132 1750.03 1075 20 -- -- --
-0.002
36 0.127 +0.003 0.126 0.128 0.139 0.142 0.145 0.010 0.147 1427.71 1200 20 -- -- --
-0.003
35 0.142 +0.003 0.141 0.143 0.154 0.157 0.160 0.010 0.165 1120.02 1325 21 -- -- --
-0.002
34 0.16 +0.003 0.159 0.161 0.175 0.178 0.181 0.013 0.183 890.60 1500 22 -- -- --
-0.003
33 0.18 +0.003 0.179 0.181 0.195 0.199 0.203 0.013 0.206 692.85 1675 23 -- -- --
-0.002
32 0.203 +0.003 0.202 0.205 0.220 0.224 0.228 0.015 0.229 543.36 1850 24 -- -- --
-0.002
31 0.226 +0.003 0.225 0.228 0.243 0.247 0.251 0.015 0.254 437.51 2075 24 -- -- --
-0.002
30 0.254 +0.002 0.252 0.256 0.274 0.278 0.282 0.018 0.284 348.45 2300 25 66 295 250
-0.003
29 0.287 +0.003 0.285 0.289 0.308 0.312 0.316 0.018 0.320 272.17 2375 26 61 310 265
-0.003
28 0.32 +0.003 0.318 0.322 0.343 0.347 0.351 0.020 0.356 217.08 2425 26 55 335 285
-0.002
27 0.361 +0.002 0.358 0.363 0.383 0.387 0.391 0.020 0.396 171.28 2500 27 50 355 300
-0.003
26 0.404 +0.002 0.401 0.406 0.429 0.433 0.437 0.023 0.439 137.89 2550 27 76 380 325
-0.005
25 0.455 +0.002 0.452 0.457 0.480 0.485 0.490 0.023 0.493 108.41 2625 28 72 400 340
-0.005
24 0.511 +0.002 0.507 0.513 0.538 0.543 0.548 0.025 0.551 86.08 2700 28 67 430 365
-0.006
23 0.574 +0.003 0.570 0.576 0.601 0.606 0.611 0.025 0.617 67.8 2775 29 62 460 390
-0.005
22 0.643 +0.002 0.639 0.645 0.673 0.678 0.683 0.028 0.686 54.44 2850 29 58 490 415
-0.008
21 0.724 +0.002 0.720 0.726 0.754 0.760 0.766 0.028 0.770 42.82 2925 30 53 525 445
-0.008
20 0.813 +0.005 0.808 0.816 0.846 0.852 0.858 0.030 0.864 33.88 3000 30 66 560 475
-0.008
19 0.912 +0.005 0.907 0.915 0.945 0.951 0.957 0.030 0.963 26.98 3075 31 62 600 510
-0.01
18 1.024 +0.005 1.019 1.027 1.060 1.066 1.072 0.033 1.077 21.39 3175 32 58 645 550
-0.011
17 1.151 +0.005 1.145 1.154 1.190 1.196 1.202 0.036 1.207 16.95 3250 32 54 690 585
-0.013
16 1.29 +0.008 1.284 1.293 1.330 1.336 1.342 0.036 1.349 13.44 3325 33 50 735 625
-0.012
15 1.45 +0.008 1.444 1.453 1.492 1.498 1.505 0.038 1.509 10.66 3425 33 46 780 665
-0.015
14 1.628 +0.008 1.621 1.631 1.673 1.680 1.687 0.041 1.692 8.44 3525 33 42 840 715
-0.015
The above single wear resistance value is applicable to MW-5C 35C 30C 81C 80C 24C 28C 76C , voltage resistance is applicable to MW-5C 35C 30C 81C 79C 75C 77C 26C .
