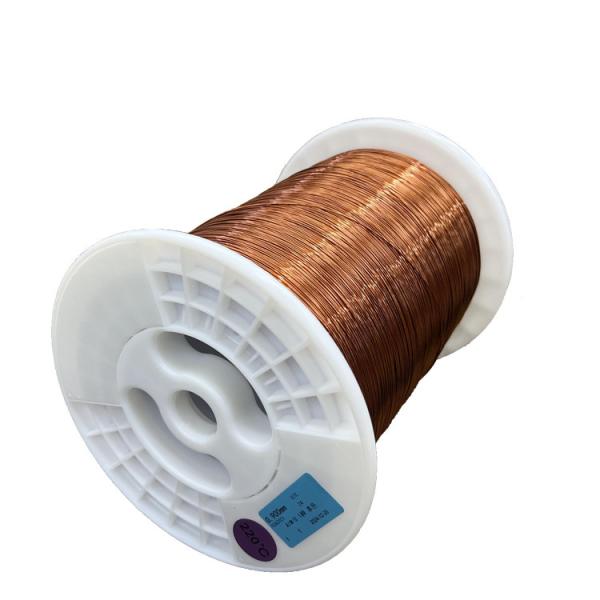

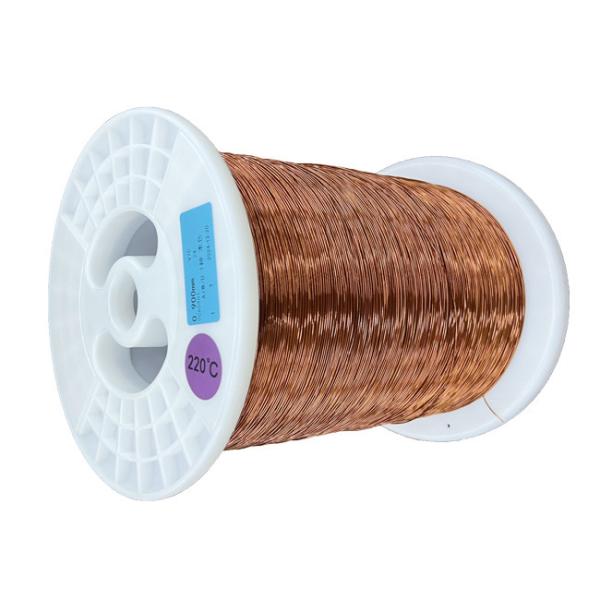

Polyamide Imide Enamelled High Temp Magnet Wire AIW Grade Two For Motors AWG 38-12
Polyamide Imide Enamelled High Temp Magnet Wire AIW Grade Two For Motors AWG 38-12
Polyamide Imide Enamelled High Temp Magnet Wire AIW Grade Two For Motors AWG 38-12
Polyamide Imide Enamelled High Temp Magnet Wire AIW Grade Two For Motors AWG 38-12
Specifications
Brand Name :
PEWSC
Model Number :
AIW Grade two
Certification :
UL,ROHS
Place of Origin :
China
MOQ :
The MOQ Varies According to the Size of the Specification
Price :
Copper Price plus Processing Fee plus Freight
Payment Terms :
T/T 100% Payment before Shipment
Supply Ability :
Delivery 10-15 Days after Next Order
Delivery Time :
3-5 Work Days
Packaging Details :
Box
Product Name :
AIW Grade two
Enamel ThicknessHierarchy :
Grade two
Materials :
Copper
Wire Diameter :
AWG 38-12
Rated Voltage :
2800V The Voltage Resistance Varies According to the Thickness of the Film and the Size of the Specification
Colors Options :
Natural, Red
Thermal Class :
220℃
Application :
For Special High Temperature Motors
Standard :
JIS
Description

Enameled copper wire AIW is a conductor with excellent properties, utilizing highly conductive copper as the conductor and a uniformly coated insulating varnish as the outer insulation. This construction allows enameled copper wire to have not only excellent electrical conductivity, but also good insulating properties and mechanical strength for a wide range of electrical applications.

Wide range of application scenarios: Whether in high temperature and humid conditions, or in demanding electrical equipment, enameled copper wire AIW can provide reliable performance.

Customized service: We provide customized service, including different insulation thickness, color and softness options to meet specific application requirements.

Cost-effective: Compared with similar products, enameled copper wire AIW provides a more economical option to enhance project economics while maintaining high performance.

Technical Support: We have a professional technical team to provide customers with a full range of technical support and consulting services to ensure that customers choose the right product and apply it correctly.

Global Certification: Our products have passed a number of international certifications to ensure that customers around the world receive a consistent high quality experience.

Polyamide Imide Enamelled High Temp Magnet Wire AIW Grade Two For Motors AWG 38-12Polyamide Imide Enamelled High Temp Magnet Wire AIW Grade Two For Motors AWG 38-12

GB ---Grade2 Unit﹕mm
Diameter of
Conduct		 Conductor
Tolerance		 Conductor Control
Benchmarks		 OD Control
Benchmarks		 Specification Boundaries Conductor
Resistance 20℃
(Ω/KM)		 Min Elongation
(%)		 Max.
Springiness
(°)		 Insulation breakdown voltage
(v)
Lower
Limit		 Upper
Limit		 Lower
Limit		 Upper
Limit		 Min. Increase
in Diameter		 Max. Finished
overall Diameter
0.040 ±0.002 0.039 0.041 0.049 0.053 0.008 0.054 15202 9 475
0.045 ±0.003 0.044 0.046 0.056 0.060 0.010 0.061 12445 9 550
0.050 ±0.003 0.049 0.051 0.061 0.065 0.010 0.066 9938 10 600
0.056 ±0.003 0.055 0.057 0.067 0.071 0.010 0.074 7815 10 650
0.063 ±0.003 0.062 0.064 0.076 0.081 0.012 0.083 6098 12 700
0.071 ±0.003 0.070 0.072 0.084 0.089 0.012 0.091 4747 13 700
0.080 ±0.003 0.079 0.081 0.095 0.100 0.014 0.101 3703 14 80 850
0.090 ±0.003 0.089 0.091 0.106 0.111 0.015 0.113 2900 15 77 900
0.100 ±0.003 0.099 0.101 0.117 0.122 0.016 0.125 2333 16 73 950
0.112 ±0.003 0.111 0.114 0.130 0.136 0.017 0.139 1848 17 73 2700
0.125 ±0.003 0.124 0.127 0.145 0.151 0.019 0.154 1475 17 70 2800
0.140 ±0.003 0.139 0.142 0.162 0.168 0.021 0.171 1170 18 67 3000
0.160 ±0.003 0.159 0.162 0.184 0.190 0.023 0.194 890.6 19 67 3200
0.180 ±0.003 0.179 0.182 0.207 0.213 0.025 0.217 700.7 20 65 3300
0.200 ±0.003 0.199 0.202 0.229 0.235 0.027 0.239 565.7 21 62 3500
0.224 ±0.003 0.223 0.226 0.255 0.262 0.029 0.266 449.5 21 59 3700
0.250 ±0.004 0.249 0.253 0.285 0.292 0.032 0.297 362.8 22 56 3900
0.280 ±0.004 0.279 0.283 0.316 0.323 0.033 0.329 288.2 22 53 4000
0.315 ±0.004 0.314 0.317 0.353 0.361 0.035 0.367 227.0 23 55 4100
0.355 ±0.004 0.354 0.357 0.396 0.404 0.038 0.411 178.2 23 53 4300
0.400 ±0.005 0.398 0.403 0.444 0.454 0.040 0.459 140.7 24 50 4400
0.450 ±0.005 0.448 0.453 0.496 0.506 0.042 0.513 110.9 25 48 4400
0.500 ±0.005 0.498 0.503 0.549 0.559 0.045 0.566 89.59 25 47 4600
0.560 ±0.006 0.557 0.563 0.611 0.621 0.047 0.630 71.53 26 44 4600
0.630 ±0.006 0.627 0.633 0.684 0.696 0.050 0.704 56.38 27 50 4800
0.710 ±0.007 0.707 0.714 0.768 0.780 0.053 0.789 44.42 28 47 4800
0.800 ±0.008 0.797 0.804 0.861 0.873 0.056 0.884 35.00 28 43 4900
0.900 ±0.009 0.897 0.904 0.965 0.977 0.060 0.989 27.65 29 48 5000
1.000 ±0.010 0.997 1.004 1.068 1.082 0.063 1.094 22.40 30 45 5000
1.120 ±0.011 1.116 1.124 1.190 1.204 0.065 1.217 17.85 30 41 5000
1.250 ±0.013 1.246 1.254 1.322 1.336 0.067 1.349 14.35 31 37 5000
1.400 ±0.014 1.396 1.406 1.476 1.490 0.069 1.502 11.43 32 34 5000
1.600 ±0.016 1.596 1.606 1.678 1.694 0.071 1.706 8.75 32 30 5000
1.800 ±0.018 1.796 1.806 1.880 1.896 0.073 1.909 6.91 32 5000
2.000 ±0.020 1.994 2.006 2.082 2.098 0.075 2.112 5.60 33 5000
2.240 ±0.022 2.234 2.246 2.324 2.342 0.077 2.355 4.46 33 5000
2.500 ±0.025 2.494 2.506 2.586 2.604 0.079 2.618 3.58 33 5000
2.800 ±0.028 2.794 2.808 2.890 2.908 0.081 2.922 2.86 34 2500
3.150 ±0.032 3.144 3.158 3.243 3.263 0.084 3.276 2.26 34 2500
