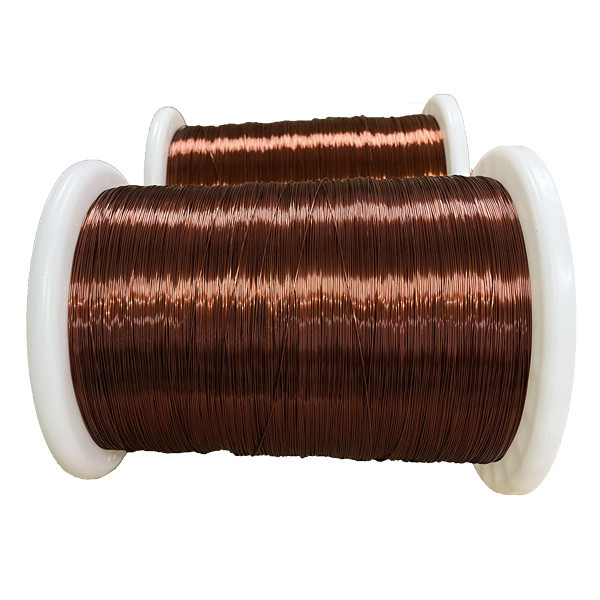

Polyamide Imide Enamelled High Temp Magnet Wire AIW Grade two For motors
Polyamide Imide Enamelled High Temp Magnet Wire AIW Grade two For motors
Polyamide Imide Enamelled High Temp Magnet Wire AIW Grade two For motors
Polyamide Imide Enamelled High Temp Magnet Wire AIW Grade two For motors
Specifications
Brand Name :
PEWSC
Model Number :
AIW Grade two
Certification :
UL,ROHS
Place of Origin :
China
MOQ :
The MOQ varies according to the size of the specification
Price :
Copper price plus processing fee plus freight
Payment Terms :
T/T 100% payment before shipment
Supply Ability :
Delivery 10-15 days after next order
Delivery Time :
3-5 work days
Packaging Details :
Box
Product Name :
AIW Grade two
Enamel ThicknessHierarchy :
Grade two
Materials :
Copper
Wire Diameter :
0.10mm-3.20mm
Rated Voltage :
2800V The voltage resistance varies according to the thickness of the film and the size of the specification
Colors Options :
Natural, Red, Green, Blue
Thermal Class :
220℃
Application :
For special high temperature motors
Standard :
JIS
Description

Enameled copper wire AIW is a conductor with excellent properties, utilizing highly conductive copper as the conductor and a uniformly coated insulating varnish as the outer insulation. This construction allows enameled copper wire to have not only excellent electrical conductivity, but also good insulating properties and mechanical strength for a wide range of electrical applications.

Wide range of application scenarios: Whether in high temperature and humid conditions, or in demanding electrical equipment, enameled copper wire AIW can provide reliable performance.

Customized service: We provide customized service, including different insulation thickness, color and softness options to meet specific application requirements.

Cost-effective: Compared with similar products, enameled copper wire AIW provides a more economical option to enhance project economics while maintaining high performance.

Technical Support: We have a professional technical team to provide customers with a full range of technical support and consulting services to ensure that customers choose the right product and apply it correctly.

Global Certification: Our products have passed a number of international certifications to ensure that customers around the world receive a consistent high quality experience.

GB ---Grade2 Unit﹕mm
Diameter of
Conduct		 Conductor
Tolerance		 Conductor Control
Benchmarks		 OD Control
Benchmarks		 Specification Boundaries Conductor
Resistance 20℃
(Ω/KM)		 Min Elongation
(%)		 Max.
Springiness
(°)		 Insulation breakdown voltage
(v)
Lower
Limit		 Upper
Limit		 Lower
Limit		 Upper
Limit		 Min. Increase
in Diameter		 Max. Finished
overall Diameter
0.040 ±0.002 0.039 0.041 0.049 0.053 0.008 0.054 15202 9 475
0.045 ±0.003 0.044 0.046 0.056 0.060 0.010 0.061 12445 9 550
0.050 ±0.003 0.049 0.051 0.061 0.065 0.010 0.066 9938 10 600
0.056 ±0.003 0.055 0.057 0.067 0.071 0.010 0.074 7815 10 650
0.063 ±0.003 0.062 0.064 0.076 0.081 0.012 0.083 6098 12 700
0.071 ±0.003 0.070 0.072 0.084 0.089 0.012 0.091 4747 13 700
0.080 ±0.003 0.079 0.081 0.095 0.100 0.014 0.101 3703 14 80 850
0.090 ±0.003 0.089 0.091 0.106 0.111 0.015 0.113 2900 15 77 900
0.100 ±0.003 0.099 0.101 0.117 0.122 0.016 0.125 2333 16 73 950
0.112 ±0.003 0.111 0.114 0.130 0.136 0.017 0.139 1848 17 73 2700
0.125 ±0.003 0.124 0.127 0.145 0.151 0.019 0.154 1475 17 70 2800
0.140 ±0.003 0.139 0.142 0.162 0.168 0.021 0.171 1170 18 67 3000
0.160 ±0.003 0.159 0.162 0.184 0.190 0.023 0.194 890.6 19 67 3200
0.180 ±0.003 0.179 0.182 0.207 0.213 0.025 0.217 700.7 20 65 3300
0.200 ±0.003 0.199 0.202 0.229 0.235 0.027 0.239 565.7 21 62 3500
0.224 ±0.003 0.223 0.226 0.255 0.262 0.029 0.266 449.5 21 59 3700
0.250 ±0.004 0.249 0.253 0.285 0.292 0.032 0.297 362.8 22 56 3900
0.280 ±0.004 0.279 0.283 0.316 0.323 0.033 0.329 288.2 22 53 4000
0.315 ±0.004 0.314 0.317 0.353 0.361 0.035 0.367 227.0 23 55 4100
0.355 ±0.004 0.354 0.357 0.396 0.404 0.038 0.411 178.2 23 53 4300
0.400 ±0.005 0.398 0.403 0.444 0.454 0.040 0.459 140.7 24 50 4400
0.450 ±0.005 0.448 0.453 0.496 0.506 0.042 0.513 110.9 25 48 4400
0.500 ±0.005 0.498 0.503 0.549 0.559 0.045 0.566 89.59 25 47 4600
0.560 ±0.006 0.557 0.563 0.611 0.621 0.047 0.630 71.53 26 44 4600
0.630 ±0.006 0.627 0.633 0.684 0.696 0.050 0.704 56.38 27 50 4800
0.710 ±0.007 0.707 0.714 0.768 0.780 0.053 0.789 44.42 28 47 4800
0.800 ±0.008 0.797 0.804 0.861 0.873 0.056 0.884 35.00 28 43 4900
0.900 ±0.009 0.897 0.904 0.965 0.977 0.060 0.989 27.65 29 48 5000
1.000 ±0.010 0.997 1.004 1.068 1.082 0.063 1.094 22.40 30 45 5000
1.120 ±0.011 1.116 1.124 1.190 1.204 0.065 1.217 17.85 30 41 5000
1.250 ±0.013 1.246 1.254 1.322 1.336 0.067 1.349 14.35 31 37 5000
1.400 ±0.014 1.396 1.406 1.476 1.490 0.069 1.502 11.43 32 34 5000
1.600 ±0.016 1.596 1.606 1.678 1.694 0.071 1.706 8.75 32 30 5000
1.800 ±0.018 1.796 1.806 1.880 1.896 0.073 1.909 6.91 32 5000
2.000 ±0.020 1.994 2.006 2.082 2.098 0.075 2.112 5.60 33 5000
2.240 ±0.022 2.234 2.246 2.324 2.342 0.077 2.355 4.46 33 5000
2.500 ±0.025 2.494 2.506 2.586 2.604 0.079 2.618 3.58 33 5000
2.800 ±0.028 2.794 2.808 2.890 2.908 0.081 2.922 2.86 34 2500
3.150 ±0.032 3.144 3.158 3.243 3.263 0.084 3.276 2.26 34 2500
