0.10mm - 2.20mm Enamel Insulated Copper Wire Overcoat Polyamide Thermal Class 155
0.10mm - 2.20mm Enamel Insulated Copper Wire Overcoat Polyamide Thermal Class 155
0.10mm - 2.20mm Enamel Insulated Copper Wire Overcoat Polyamide Thermal Class 155
0.10mm - 2.20mm Enamel Insulated Copper Wire Overcoat Polyamide Thermal Class 155
Specifications
Brand Name :
PEWSC
Model Number :
PEFN Grade one
Certification :
UL,ROHS
Place of Origin :
China
MOQ :
The MOQ varies according to the size of the specification
Price :
Copper price plus processing fee plus freight
Payment Terms :
T/T 100% payment before shipment
Supply Ability :
Delivery 10-15 days after next order
Delivery Time :
3-5 work days
Packaging Details :
Box
Model :
PEFN Grade one
Material :
Copper
Insulation Material :
Enamelled
Rated Voltage :
2800V The voltage resistance varies according to the thickness of the film and the size of the specification
Thermal Class :
155℃
Enamelled Thickness :
Grade one
Specification :
AWG 38-11
Standard :
NEMA
Color Option :
Could be customized
Packaging :
Carton
Applications :
For general motor, transformer
Shape :
Round
Description

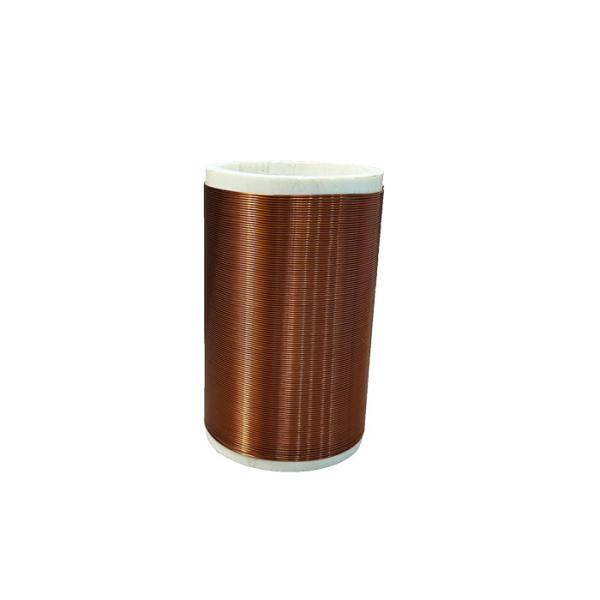

0.10mm-2.20mm PEFN Grade one Overcoat polyamide Copper Wire Thermal Class 155 For general motor

Grade one is the thinnest insulation grade for applications where space and weight are critical.

PEWF Grade one enameled wire is made of high purity copper as conductor material, which ensures good electrical conductivity and signal transmission efficiency, and reduces resistance loss.

High Performance Varnish Coating: Advanced polyesterimide-nylon (PEWF) composite varnish is used to provide the wire with excellent insulation properties, preventing current leakage and improving voltage resistance.

High Temperature Resistance Characteristics: PEWF insulating varnish has excellent high temperature resistance and is able to work stably in environments up to 155°C, making it suitable for a variety of high-temperature application scenarios.

Excellent abrasion and corrosion resistance: The smooth and tough surface of the enameled wire is resistant to mechanical abrasion and chemical corrosion, extending the service life of the wire.

Wide range of applications: PEWF Grade one enameled wire is widely used in the manufacture of electrical equipment such as motors, transformers, coils, and in a variety of high-temperature, high-pressure and high-frequency working environments.

0.10mm - 2.20mm Enamel Insulated Copper Wire Overcoat Polyamide Thermal Class 155

GB ---Grade1 Unit﹕mm
Diameter of
Conduct		 Conductor
Tolerance		 Conductor Control
Benchmarks		 OD Control
Benchmarks		 Specification Boundaries Conductor
Resistance 20℃
(Ω/KM)		 Min Elongation
(%)		 Max.
Springiness
(°)		 Insulation breakdown voltage
(v)
Lower
Limit		 Upper
Limit		 Lower
Limit		 Upper
Limit		 Min. Increase
in Diameter		 Max. Finished
overall Diameter
0.040 ±0.002 0.039 0.041 0.045 0.049 0.004 0.049 15202 9 250
0.045 ±0.003 0.044 0.046 0.051 0.055 0.005 0.055 12445 9 275
0.050 ±0.003 0.049 0.051 0.056 0.060 0.005 0.060 9938 10 300
0.056 ±0.003 0.055 0.057 0.063 0.067 0.006 0.067 7815 10 325
0.063 ±0.003 0.062 0.064 0.071 0.076 0.007 0.076 6098 12 375
0.071 ±0.003 0.070 0.072 0.079 0.084 0.007 0.084 4747 13 425
0.080 ±0.003 0.079 0.081 0.088 0.094 0.007 0.094 3703 14 70 425
0.090 ±0.003 0.089 0.091 0.099 0.105 0.008 0.105 2900 15 67 500
0.100 ±0.003 0.099 0.101 0.109 0.116 0.008 0.117 2333 16 64 500
0.112 ±0.003 0.111 0.114 0.122 0.129 0.009 0.130 1848 17 64 1300
0.125 ±0.003 0.124 0.127 0.136 0.143 0.010 0.144 1475 17 62 1500
0.140 ±0.003 0.139 0.142 0.152 0.159 0.011 0.160 1170 18 59 1600
0.160 ±0.003 0.159 0.162 0.173 0.180 0.012 0.182 890.6 19 59 1700
0.180 ±0.003 0.179 0.182 0.195 0.202 0.013 0.204 700.7 20 57 1700
0.200 ±0.003 0.199 0.202 0.216 0.224 0.014 0.226 565.7 21 54 1800
0.224 ±0.003 0.223 0.226 0.241 0.249 0.015 0.252 449.5 21 51 1900
0.250 ±0.004 0.249 0.253 0.270 0.278 0.017 0.281 362.8 22 49 2100
0.280 ±0.004 0.279 0.283 0.301 0.309 0.018 0.312 288.2 22 47 2200
0.315 ±0.004 0.314 0.317 0.337 0.346 0.019 0.349 227.0 23 50 2200
0.355 ±0.004 0.354 0.357 0.378 0.387 0.020 0.392 178.2 23 48 2300
0.400 ±0.005 0.398 0.403 0.425 0.435 0.021 0.439 140.7 24 45 2300
0.450 ±0.005 0.448 0.453 0.476 0.486 0.022 0.491 110.9 25 44 2300
0.500 ±0.005 0.498 0.503 0.528 0.538 0.024 0.544 89.59 25 43 2400
0.560 ±0.006 0.557 0.563 0.589 0.599 0.025 0.606 71.53 26 41 2500
0.630 ±0.006 0.627 0.633 0.661 0.673 0.027 0.679 56.38 27 46 2600
0.710 ±0.007 0.707 0.714 0.743 0.755 0.028 0.672 44.42 28 44 2600
0.800 ±0.008 0.797 0.804 0.835 0.847 0.030 0.855 35.00 28 41 2600
0.900 ±0.009 0.897 0.904 0.937 0.949 0.032 0.959 27.65 29 45 2700
1.000 ±0.010 0.997 1.004 1.039 1.053 0.034 1.062 22.40 30 42 2700
1.120 ±0.011 1.116 1.124 1.159 1.193 0.034 1.184 17.85 30 39 2700
1.250 ±0.013 1.246 1.254 1.290 1.304 0.035 1.316 14.35 31 35 2700
1.400 ±0.014 1.396 1.406 1.443 1.458 0.036 1.468 11.43 32 32 2700
1.600 ±0.016 1.596 1.606 1.645 1.660 0.038 1.670 8.75 32 28 2700
