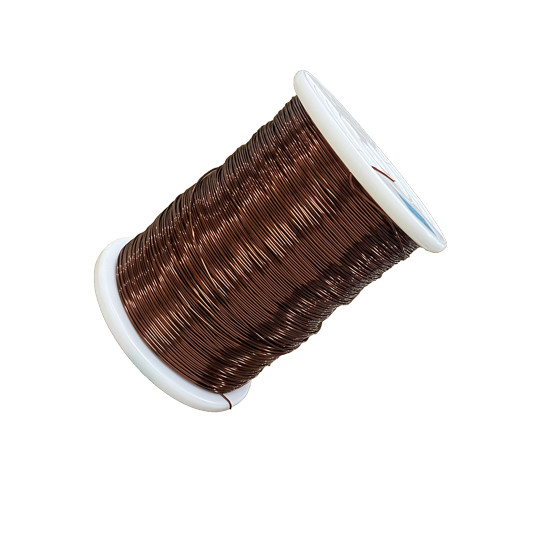

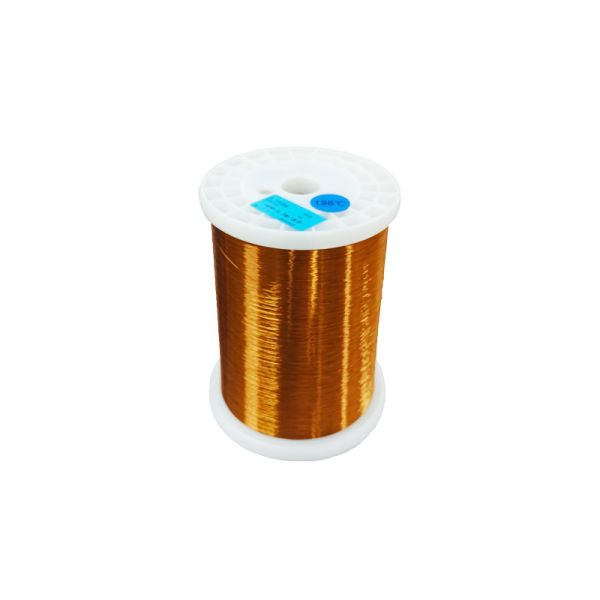

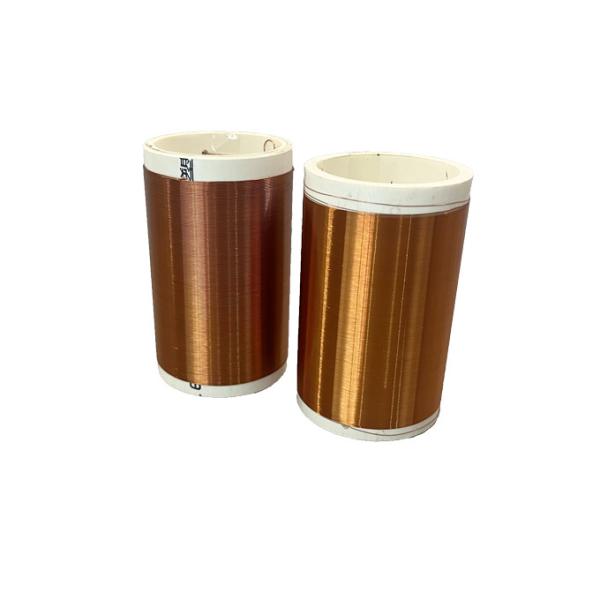

Modified Polyester Enameled Copper Winding Wire Thermal Class 155 GB IEC Standard
Modified Polyester Enameled Copper Winding Wire Thermal Class 155 GB IEC Standard
Modified Polyester Enameled Copper Winding Wire Thermal Class 155 GB IEC Standard
Modified Polyester Enameled Copper Winding Wire Thermal Class 155 GB IEC Standard
Modified Polyester Enameled Copper Winding Wire Thermal Class 155 GB IEC Standard
Modified Polyester Enameled Copper Winding Wire Thermal Class 155 GB IEC Standard
Specifications
Brand Name :
PEWSC
Model Number :
PEWF Grade one
Certification :
UL,ROHS
Place of Origin :
China
MOQ :
The MOQ varies according to the size of the specification
Price :
Copper price plus processing fee plus freight
Payment Terms :
T/T 100% payment before shipment
Supply Ability :
Delivery 10-15 days after next order
Delivery Time :
3-5 work days
Packaging Details :
Box
Product Name :
PEWF Grade one
Material :
Copper
Insulation Material :
Enameled
Hierarchy Thickness :
Grade one
Specification :
0.10mm-3.20mm
Applications :
For high temperature moter,other electric appliances
Standard :
GB、IEC
Color :
Could be customized
Conductor Shape :
Round
Packaging :
Box
Description

Enameled PEWF is an insulated wire designed for electrical applications with a core of high quality copper conductors coated with a uniform, continuous layer of polyesterimide-nylon (PEWF) composite insulating varnish that provides excellent electrical performance and high temperature resistance. It has the following characteristics:

When working with PEWF Single enameled wire, follow the relevant safety regulations and operating instructions. Ensure that the wire is properly connected and avoid excessive stretching or bending that could damage the insulation. Regularly inspect and maintain the wire to ensure it is in good condition for longer service life.

Enameled wire PEWF Single offers a reliable and efficient solution for a wide range of electrical applications with its high-quality copper conductor and high-performance polyesterimide-nylon composite insulating varnish coating. Its resistance to high temperatures, abrasion and corrosion makes it an ideal choice for many industries. Choose PEWF Single enameled wire for more consistent performance and longer service life of your electrical system.

Modified Polyester Enameled Copper Winding Wire Thermal Class 155 GB IEC StandardModified Polyester Enameled Copper Winding Wire Thermal Class 155 GB IEC StandardModified Polyester Enameled Copper Winding Wire Thermal Class 155 GB IEC Standard

GB ---Grade1 Unit﹕mm
Diameter of
Conduct		 Conductor
Tolerance		 Conductor Control
Benchmarks		 OD Control
Benchmarks		 Specification Boundaries Conductor
Resistance 20℃
(Ω/KM)		 Min Elongation
(%)		 Max.
Springiness
(°)		 Insulation breakdown voltage
(v)
Lower
Limit		 Upper
Limit		 Lower
Limit		 Upper
Limit		 Min. Increase
in Diameter		 Max. Finished
overall Diameter
0.040 ±0.002 0.039 0.041 0.045 0.049 0.004 0.049 15202 9 250
0.045 ±0.003 0.044 0.046 0.051 0.055 0.005 0.055 12445 9 275
0.050 ±0.003 0.049 0.051 0.056 0.060 0.005 0.060 9938 10 300
0.056 ±0.003 0.055 0.057 0.063 0.067 0.006 0.067 7815 10 325
0.063 ±0.003 0.062 0.064 0.071 0.076 0.007 0.076 6098 12 375
0.071 ±0.003 0.070 0.072 0.079 0.084 0.007 0.084 4747 13 425
0.080 ±0.003 0.079 0.081 0.088 0.094 0.007 0.094 3703 14 70 425
0.090 ±0.003 0.089 0.091 0.099 0.105 0.008 0.105 2900 15 67 500
0.100 ±0.003 0.099 0.101 0.109 0.116 0.008 0.117 2333 16 64 500
0.112 ±0.003 0.111 0.114 0.122 0.129 0.009 0.130 1848 17 64 1300
0.125 ±0.003 0.124 0.127 0.136 0.143 0.010 0.144 1475 17 62 1500
0.140 ±0.003 0.139 0.142 0.152 0.159 0.011 0.160 1170 18 59 1600
0.160 ±0.003 0.159 0.162 0.173 0.180 0.012 0.182 890.6 19 59 1700
0.180 ±0.003 0.179 0.182 0.195 0.202 0.013 0.204 700.7 20 57 1700
0.200 ±0.003 0.199 0.202 0.216 0.224 0.014 0.226 565.7 21 54 1800
0.224 ±0.003 0.223 0.226 0.241 0.249 0.015 0.252 449.5 21 51 1900
0.250 ±0.004 0.249 0.253 0.270 0.278 0.017 0.281 362.8 22 49 2100
0.280 ±0.004 0.279 0.283 0.301 0.309 0.018 0.312 288.2 22 47 2200
0.315 ±0.004 0.314 0.317 0.337 0.346 0.019 0.349 227.0 23 50 2200
0.355 ±0.004 0.354 0.357 0.378 0.387 0.020 0.392 178.2 23 48 2300
0.400 ±0.005 0.398 0.403 0.425 0.435 0.021 0.439 140.7 24 45 2300
0.450 ±0.005 0.448 0.453 0.476 0.486 0.022 0.491 110.9 25 44 2300
0.500 ±0.005 0.498 0.503 0.528 0.538 0.024 0.544 89.59 25 43 2400
0.560 ±0.006 0.557 0.563 0.589 0.599 0.025 0.606 71.53 26 41 2500
0.630 ±0.006 0.627 0.633 0.661 0.673 0.027 0.679 56.38 27 46 2600
0.710 ±0.007 0.707 0.714 0.743 0.755 0.028 0.672 44.42 28 44 2600
0.800 ±0.008 0.797 0.804 0.835 0.847 0.030 0.855 35.00 28 41 2600
0.900 ±0.009 0.897 0.904 0.937 0.949 0.032 0.959 27.65 29 45 2700
1.000 ±0.010 0.997 1.004 1.039 1.053 0.034 1.062 22.40 30 42 2700
1.120 ±0.011 1.116 1.124 1.159 1.193 0.034 1.184 17.85 30 39 2700
1.250 ±0.013 1.246 1.254 1.290 1.304 0.035 1.316 14.35 31 35 2700
1.400 ±0.014 1.396 1.406 1.443 1.458 0.036 1.468 11.43 32 32 2700
1.600 ±0.016 1.596 1.606 1.645 1.660 0.038 1.670 8.75 32 28 2700
