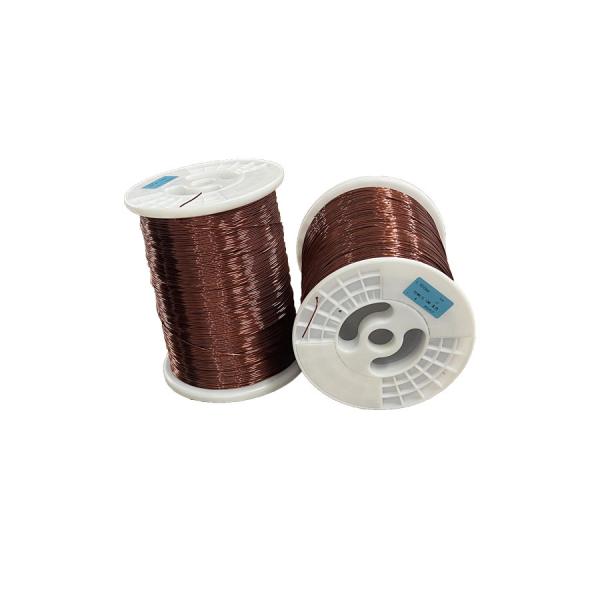

Polyester Imide Copper Round Enamelled Wire For High Temperature Motor
Polyester Imide Copper Round Enamelled Wire For High Temperature Motor
Polyester Imide Copper Round Enamelled Wire For High Temperature Motor
Polyester Imide Copper Round Enamelled Wire For High Temperature Motor
Polyester Imide Copper Round Enamelled Wire For High Temperature Motor
Polyester Imide Copper Round Enamelled Wire For High Temperature Motor
Specifications
Brand Name :
PEWSC
Model Number :
PEWH Grade two
Certification :
UL,ROHS
Place of Origin :
China
MOQ :
The MOQ varies according to the size of the specification
Price :
Copper price plus processing fee plus freight
Payment Terms :
T/T 100% payment before shipment
Supply Ability :
Delivery 10-15 days after next order
Delivery Time :
3-5 work days
Packaging Details :
Box
Product Model :
PEWH Grade two
Rated Voltage :
2800V The voltage resistance varies according to the thickness of the film and the size of the specification
Standard :
GB、IEC
Temperature Class :
180℃
Colors :
Natural、Red、Green
Wire Diameter :
0.10mm-3.20mm
Hierachy Thickness :
Grade two
Shape :
Round
Conductor Material :
Enameled Copper
Warranty :
3 Years
Application :
For high temperature moter
Package :
Carton
Description

Grade2 and Grade3 have a thicker insulation layer, making them safer and more reliable for use at higher voltages and temperatures.

Excellent Mechanical Strength: The PEWH outer polyimide material has high tensile strength and abrasion resistance, which can better withstand the various mechanical stresses during the manufacturing process of motor stator windings.

Excellent chemical resistance: PEWH polyimide outer layer has strong corrosion resistance to most chemicals and solvents, which enables it to work stably for a long time in harsh environments.

PEWH enameled wire is widely used in high-end industrial equipment, precision medical equipment, new energy technology and other demanding electrical systems. In these applications, it not only enhances the overall effectiveness and efficiency of the system, but also effectively extends the service life of the equipment and reduces maintenance costs.

In short, PEWH enameled wire is the market's choice for high-end, reliable magnet wire for professionals and organizations seeking optimal performance and maximum reliability. Choosing PEWH is a guarantee of high quality and long-term stable electrical performance.

Polyester Imide Copper Round Enamelled Wire For High Temperature Motor

GB ---Grade2 Unit﹕mm
Diameter of
Conduct		 Conductor
Tolerance		 Conductor Control
Benchmarks		 OD Control
Benchmarks		 Specification Boundaries Conductor
Resistance 20℃
(Ω/KM)		 Min Elongation
(%)		 Max.
Springiness
(°)		 Insulation breakdown voltage
(v)
Lower
Limit		 Upper
Limit		 Lower
Limit		 Upper
Limit		 Min. Increase
in Diameter		 Max. Finished
overall Diameter
0.040 ±0.002 0.039 0.041 0.049 0.053 0.008 0.054 15202 9 475
0.045 ±0.003 0.044 0.046 0.056 0.060 0.010 0.061 12445 9 550
0.050 ±0.003 0.049 0.051 0.061 0.065 0.010 0.066 9938 10 600
0.056 ±0.003 0.055 0.057 0.067 0.071 0.010 0.074 7815 10 650
0.063 ±0.003 0.062 0.064 0.076 0.081 0.012 0.083 6098 12 700
0.071 ±0.003 0.070 0.072 0.084 0.089 0.012 0.091 4747 13 700
0.080 ±0.003 0.079 0.081 0.095 0.100 0.014 0.101 3703 14 80 850
0.090 ±0.003 0.089 0.091 0.106 0.111 0.015 0.113 2900 15 77 900
0.100 ±0.003 0.099 0.101 0.117 0.122 0.016 0.125 2333 16 73 950
0.112 ±0.003 0.111 0.114 0.130 0.136 0.017 0.139 1848 17 73 2700
0.125 ±0.003 0.124 0.127 0.145 0.151 0.019 0.154 1475 17 70 2800
0.140 ±0.003 0.139 0.142 0.162 0.168 0.021 0.171 1170 18 67 3000
0.160 ±0.003 0.159 0.162 0.184 0.190 0.023 0.194 890.6 19 67 3200
0.180 ±0.003 0.179 0.182 0.207 0.213 0.025 0.217 700.7 20 65 3300
0.200 ±0.003 0.199 0.202 0.229 0.235 0.027 0.239 565.7 21 62 3500
0.224 ±0.003 0.223 0.226 0.255 0.262 0.029 0.266 449.5 21 59 3700
0.250 ±0.004 0.249 0.253 0.285 0.292 0.032 0.297 362.8 22 56 3900
0.280 ±0.004 0.279 0.283 0.316 0.323 0.033 0.329 288.2 22 53 4000
0.315 ±0.004 0.314 0.317 0.353 0.361 0.035 0.367 227.0 23 55 4100
0.355 ±0.004 0.354 0.357 0.396 0.404 0.038 0.411 178.2 23 53 4300
0.400 ±0.005 0.398 0.403 0.444 0.454 0.040 0.459 140.7 24 50 4400
0.450 ±0.005 0.448 0.453 0.496 0.506 0.042 0.513 110.9 25 48 4400
0.500 ±0.005 0.498 0.503 0.549 0.559 0.045 0.566 89.59 25 47 4600
0.560 ±0.006 0.557 0.563 0.611 0.621 0.047 0.630 71.53 26 44 4600
0.630 ±0.006 0.627 0.633 0.684 0.696 0.050 0.704 56.38 27 50 4800
0.710 ±0.007 0.707 0.714 0.768 0.780 0.053 0.789 44.42 28 47 4800
0.800 ±0.008 0.797 0.804 0.861 0.873 0.056 0.884 35.00 28 43 4900
0.900 ±0.009 0.897 0.904 0.965 0.977 0.060 0.989 27.65 29 48 5000
1.000 ±0.010 0.997 1.004 1.068 1.082 0.063 1.094 22.40 30 45 5000
1.120 ±0.011 1.116 1.124 1.190 1.204 0.065 1.217 17.85 30 41 5000
1.250 ±0.013 1.246 1.254 1.322 1.336 0.067 1.349 14.35 31 37 5000
1.400 ±0.014 1.396 1.406 1.476 1.490 0.069 1.502 11.43 32 34 5000
1.600 ±0.016 1.596 1.606 1.678 1.694 0.071 1.706 8.75 32 30 5000
1.800 ±0.018 1.796 1.806 1.880 1.896 0.073 1.909 6.91 32 5000
2.000 ±0.020 1.994 2.006 2.082 2.098 0.075 2.112 5.60 33 5000
2.240 ±0.022 2.234 2.246 2.324 2.342 0.077 2.355 4.46 33 5000
2.500 ±0.025 2.494 2.506 2.586 2.604 0.079 2.618 3.58 33 5000
2.800 ±0.028 2.794 2.808 2.890 2.908 0.081 2.922 2.86 34 2500
3.150 ±0.032 3.144 3.158 3.243 3.263 0.084 3.276 2.26 34 2500
