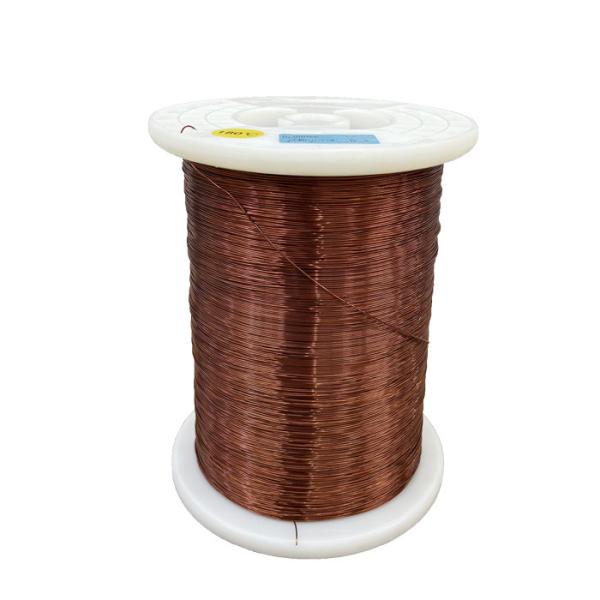

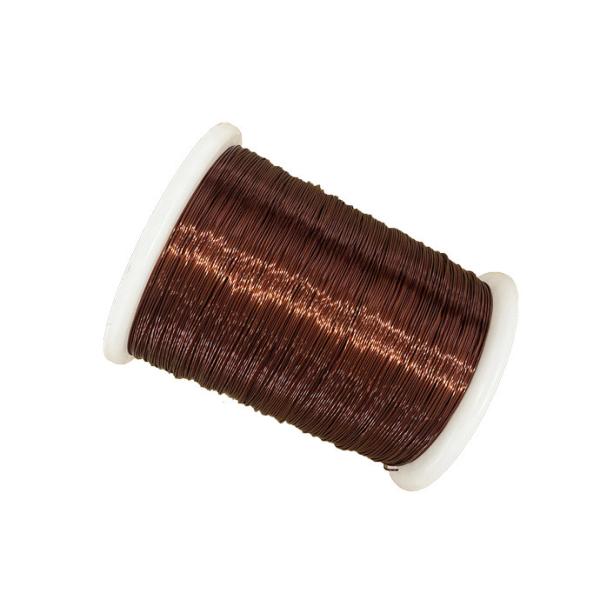

GB IEC Standard Round Polyester Imide Enameled Wire For High Temperature Motor
GB IEC Standard Round Polyester Imide Enameled Wire For High Temperature Motor
GB IEC Standard Round Polyester Imide Enameled Wire For High Temperature Motor
GB IEC Standard Round Polyester Imide Enameled Wire For High Temperature Motor
Specifications
Brand Name :
PEWSC
Model Number :
PEWH Grade one
Certification :
UL,ROHS
Place of Origin :
China
MOQ :
The MOQ varies according to the size of the specification
Price :
Copper price plus processing fee plus freight
Payment Terms :
T/T 100% payment before shipment
Supply Ability :
Delivery 10-15 days after next order
Delivery Time :
3-5 work days
Packaging Details :
Box
Product Model :
PEWH Grade one
Rated Voltage :
2800V The voltage resistance varies according to the thickness of the film and the size of the specification
Standard :
GB、IEC
Temperature Grade :
180℃
Colors :
Natural、Red、Green
Wire Diameter :
0.10mm-3.20mm
Hierachy Thickness :
Heavy
Shape :
Round
Conductor Material :
Enameled Copper
Warranty :
3 Years
Application :
For high voltage solenoid coil
Package :
Box
Description

Grade 1 is the thinnest insulation grade available for applications where space and weight are critical.

The superior heat resistance of PEWH up to 180°C makes it more suitable for applications such as motors and transformers in high temperature environments.

Excellent electrical properties: PEWH's modified polyester insulation layer thickness of 0.1-0.5mm provides reliable insulation protection in high voltage environments.

Good chemical resistance: PEWH polyimide outer layers are highly resistant to a wide range of chemicals and solvents, making them suitable for industrial applications in harsh environments.

PEWH enameled wire is a premium electromagnetic wire material designed for high performance and durability in a variety of harsh environments for motor and transformer applications. This enameled wire utilizes specially modified insulating coatings and advanced manufacturing processes to ensure excellent insulating properties and resistance to heat, cold and chemicals.

The key features of PEWH products are their highly uniform coating thickness and superior surface smoothness, which greatly reduces friction and abrasion during winding and improves coil quality and consistency. In addition, the conductor portion of PEWH enameled wire is made of selected highly conductive copper materials, which not only ensures excellent current transfer capability, but also provides good mechanical strength and ductility, maintaining stable performance even under extreme temperature changes or mechanical vibrations.

GB IEC Standard Round Polyester Imide Enameled Wire For High Temperature Motor

GB ---Grade1 Unit﹕mm
Diameter of
Conduct		 Conductor
Tolerance		 Conductor Control
Benchmarks		 OD Control
Benchmarks		 Specification Boundaries Conductor
Resistance 20℃
(Ω/KM)		 Min Elongation
(%)		 Max.
Springiness
(°)		 Insulation breakdown voltage
(v)
Lower
Limit		 Upper
Limit		 Lower
Limit		 Upper
Limit		 Min. Increase
in Diameter		 Max. Finished
overall Diameter
0.040 ±0.002 0.039 0.041 0.045 0.049 0.004 0.049 15202 9 250
0.045 ±0.003 0.044 0.046 0.051 0.055 0.005 0.055 12445 9 275
0.050 ±0.003 0.049 0.051 0.056 0.060 0.005 0.060 9938 10 300
0.056 ±0.003 0.055 0.057 0.063 0.067 0.006 0.067 7815 10 325
0.063 ±0.003 0.062 0.064 0.071 0.076 0.007 0.076 6098 12 375
0.071 ±0.003 0.070 0.072 0.079 0.084 0.007 0.084 4747 13 425
0.080 ±0.003 0.079 0.081 0.088 0.094 0.007 0.094 3703 14 70 425
0.090 ±0.003 0.089 0.091 0.099 0.105 0.008 0.105 2900 15 67 500
0.100 ±0.003 0.099 0.101 0.109 0.116 0.008 0.117 2333 16 64 500
0.112 ±0.003 0.111 0.114 0.122 0.129 0.009 0.130 1848 17 64 1300
0.125 ±0.003 0.124 0.127 0.136 0.143 0.010 0.144 1475 17 62 1500
0.140 ±0.003 0.139 0.142 0.152 0.159 0.011 0.160 1170 18 59 1600
0.160 ±0.003 0.159 0.162 0.173 0.180 0.012 0.182 890.6 19 59 1700
0.180 ±0.003 0.179 0.182 0.195 0.202 0.013 0.204 700.7 20 57 1700
0.200 ±0.003 0.199 0.202 0.216 0.224 0.014 0.226 565.7 21 54 1800
0.224 ±0.003 0.223 0.226 0.241 0.249 0.015 0.252 449.5 21 51 1900
0.250 ±0.004 0.249 0.253 0.270 0.278 0.017 0.281 362.8 22 49 2100
0.280 ±0.004 0.279 0.283 0.301 0.309 0.018 0.312 288.2 22 47 2200
0.315 ±0.004 0.314 0.317 0.337 0.346 0.019 0.349 227.0 23 50 2200
0.355 ±0.004 0.354 0.357 0.378 0.387 0.020 0.392 178.2 23 48 2300
0.400 ±0.005 0.398 0.403 0.425 0.435 0.021 0.439 140.7 24 45 2300
0.450 ±0.005 0.448 0.453 0.476 0.486 0.022 0.491 110.9 25 44 2300
0.500 ±0.005 0.498 0.503 0.528 0.538 0.024 0.544 89.59 25 43 2400
0.560 ±0.006 0.557 0.563 0.589 0.599 0.025 0.606 71.53 26 41 2500
0.630 ±0.006 0.627 0.633 0.661 0.673 0.027 0.679 56.38 27 46 2600
0.710 ±0.007 0.707 0.714 0.743 0.755 0.028 0.672 44.42 28 44 2600
0.800 ±0.008 0.797 0.804 0.835 0.847 0.030 0.855 35.00 28 41 2600
0.900 ±0.009 0.897 0.904 0.937 0.949 0.032 0.959 27.65 29 45 2700
1.000 ±0.010 0.997 1.004 1.039 1.053 0.034 1.062 22.40 30 42 2700
1.120 ±0.011 1.116 1.124 1.159 1.193 0.034 1.184 17.85 30 39 2700
1.250 ±0.013 1.246 1.254 1.290 1.304 0.035 1.316 14.35 31 35 2700
1.400 ±0.014 1.396 1.406 1.443 1.458 0.036 1.468 11.43 32 32 2700
1.600 ±0.016 1.596 1.606 1.645 1.660 0.038 1.670 8.75 32 28 2700
