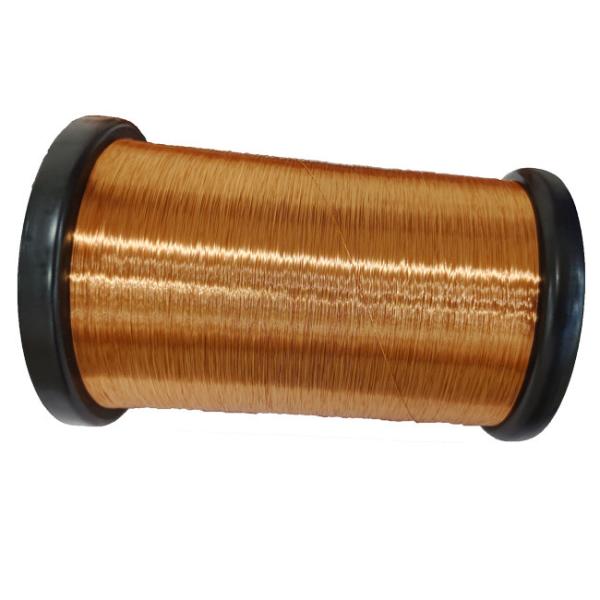

UEFN Grade One Round Overcoat Polyamide Enamel Wire 0.04mm - 2.60mm UL Certificated
UEFN Grade One Round Overcoat Polyamide Enamel Wire 0.04mm - 2.60mm UL Certificated
UEFN Grade One Round Overcoat Polyamide Enamel Wire 0.04mm - 2.60mm UL Certificated
UEFN Grade One Round Overcoat Polyamide Enamel Wire 0.04mm - 2.60mm UL Certificated
Specifications
Brand Name :
PEWSC
Model Number :
UEFN Grade one
Certification :
UL
Place of Origin :
China
MOQ :
The MOQ varies according to the size of the specification
Price :
Copper price plus processing fee plus freight
Payment Terms :
T/T 100% payment before shipment
Supply Ability :
Delivery 10-15 days after next order
Delivery Time :
3-5 work days
Packaging Details :
Box
Modle :
UEFN Grade one
Material :
Copper
Voltage Rating :
2800V
Specification :
0.04mm-2.60mm
Application :
For high speed coiling processing
Temperature Grade :
155℃
Color :
Could be customized
Warranty :
3 Years
Sample :
Free
Shape :
Round
Description

Grade one is the thinnest insulation class for applications where space and weight are critical.

High-frequency performance: UEF1 enameled wire is suitable for high-frequency signal transmission, which means it can maintain good electrical properties under high-frequency conditions, suitable for use in electronics, electrical appliances and other fields.

Dyeable Characteristics: UEF1 enameled wire has dyeable characteristics, which makes it possible to quickly identify and differentiate different connecting wires through color coding when carrying out maintenance and overhauling of electrical equipment, which greatly improves work efficiency.

Direct Weldability: UEF1 enameled wire has direct weldability, which means that the windings and coils can be directly welded during the motor manufacturing process, simplifying the welding process and reducing the cost of motor manufacturing.

UEFN's insulation layer contains special conductive fillers that effectively block external electromagnetic fields. This gives UEFN an advantage in applications with strict EMC requirements.

Overall, UEFN is a high-end enamelled wire with outstanding performance in terms of abrasion resistance, flexibility, heat resistance and electromagnetic shielding. It is widely used in the manufacturing of windings for high power motors, transformers and other industrial electrical equipment.

UEFN Grade One Round Overcoat Polyamide Enamel Wire 0.04mm - 2.60mm UL Certificated

GB ---Grade1 Unit﹕mm
Diameter of
Conduct		 Conductor
Tolerance		 Conductor Control
Benchmarks		 OD Control
Benchmarks		 Specification Boundaries Conductor
Resistance 20℃
(Ω/KM)		 Min Elongation
(%)		 Max.
Springiness
(°)		 Insulation breakdown voltage
(v)
Lower
Limit		 Upper
Limit		 Lower
Limit		 Upper
Limit		 Min. Increase
in Diameter		 Max. Finished
overall Diameter
0.040 ±0.002 0.039 0.041 0.045 0.049 0.004 0.049 15202 9 250
0.045 ±0.003 0.044 0.046 0.051 0.055 0.005 0.055 12445 9 275
0.050 ±0.003 0.049 0.051 0.056 0.060 0.005 0.060 9938 10 300
0.056 ±0.003 0.055 0.057 0.063 0.067 0.006 0.067 7815 10 325
0.063 ±0.003 0.062 0.064 0.071 0.076 0.007 0.076 6098 12 375
0.071 ±0.003 0.070 0.072 0.079 0.084 0.007 0.084 4747 13 425
0.080 ±0.003 0.079 0.081 0.088 0.094 0.007 0.094 3703 14 70 425
0.090 ±0.003 0.089 0.091 0.099 0.105 0.008 0.105 2900 15 67 500
0.100 ±0.003 0.099 0.101 0.109 0.116 0.008 0.117 2333 16 64 500
0.112 ±0.003 0.111 0.114 0.122 0.129 0.009 0.130 1848 17 64 1300
0.125 ±0.003 0.124 0.127 0.136 0.143 0.010 0.144 1475 17 62 1500
0.140 ±0.003 0.139 0.142 0.152 0.159 0.011 0.160 1170 18 59 1600
0.160 ±0.003 0.159 0.162 0.173 0.180 0.012 0.182 890.6 19 59 1700
0.180 ±0.003 0.179 0.182 0.195 0.202 0.013 0.204 700.7 20 57 1700
0.200 ±0.003 0.199 0.202 0.216 0.224 0.014 0.226 565.7 21 54 1800
0.224 ±0.003 0.223 0.226 0.241 0.249 0.015 0.252 449.5 21 51 1900
0.250 ±0.004 0.249 0.253 0.270 0.278 0.017 0.281 362.8 22 49 2100
0.280 ±0.004 0.279 0.283 0.301 0.309 0.018 0.312 288.2 22 47 2200
0.315 ±0.004 0.314 0.317 0.337 0.346 0.019 0.349 227.0 23 50 2200
0.355 ±0.004 0.354 0.357 0.378 0.387 0.020 0.392 178.2 23 48 2300
0.400 ±0.005 0.398 0.403 0.425 0.435 0.021 0.439 140.7 24 45 2300
0.450 ±0.005 0.448 0.453 0.476 0.486 0.022 0.491 110.9 25 44 2300
0.500 ±0.005 0.498 0.503 0.528 0.538 0.024 0.544 89.59 25 43 2400
0.560 ±0.006 0.557 0.563 0.589 0.599 0.025 0.606 71.53 26 41 2500
0.630 ±0.006 0.627 0.633 0.661 0.673 0.027 0.679 56.38 27 46 2600
0.710 ±0.007 0.707 0.714 0.743 0.755 0.028 0.672 44.42 28 44 2600
0.800 ±0.008 0.797 0.804 0.835 0.847 0.030 0.855 35.00 28 41 2600
0.900 ±0.009 0.897 0.904 0.937 0.949 0.032 0.959 27.65 29 45 2700
1.000 ±0.010 0.997 1.004 1.039 1.053 0.034 1.062 22.40 30 42 2700
1.120 ±0.011 1.116 1.124 1.159 1.193 0.034 1.184 17.85 30 39 2700
1.250 ±0.013 1.246 1.254 1.290 1.304 0.035 1.316 14.35 31 35 2700
1.400 ±0.014 1.396 1.406 1.443 1.458 0.036 1.468 11.43 32 32 2700
1.600 ±0.016 1.596 1.606 1.645 1.660 0.038 1.670 8.75 32 28 2700
Product tags

polyurethane enameled copper wire

,

polyurethane enamelled wire

,

0.012-0.08mm ultra thin enameled copper wire
Send your message to this supplier
Send Now

UEFN Grade One Round Overcoat Polyamide Enamel Wire 0.04mm - 2.60mm UL Certificated

Ask Latest Price
Product Detail
Brand Name :
PEWSC
Model Number :
UEFN Grade one
Certification :
UL
Place of Origin :
China
MOQ :
The MOQ varies according to the size of the specification
Price :
Copper price plus processing fee plus freight
Contact Supplier
UEFN Grade One Round Overcoat Polyamide Enamel Wire 0.04mm - 2.60mm UL Certificated
UEFN Grade One Round Overcoat Polyamide Enamel Wire 0.04mm - 2.60mm UL Certificated

Pacific Electric Wire & Cable (Shenzhen) Co., Ltd.

Verified Supplier
2 Years
shenzhen
Since 1995
Business Type :
Manufacturer
Main Products :
Enamelled Round Copper Wire, Enameled Copper Winding Wire, Enamel Insulated Copper Wire
Total Annual :
70000000-100000000
Employee Number :
180~200
Certification Level :
Verified Supplier
