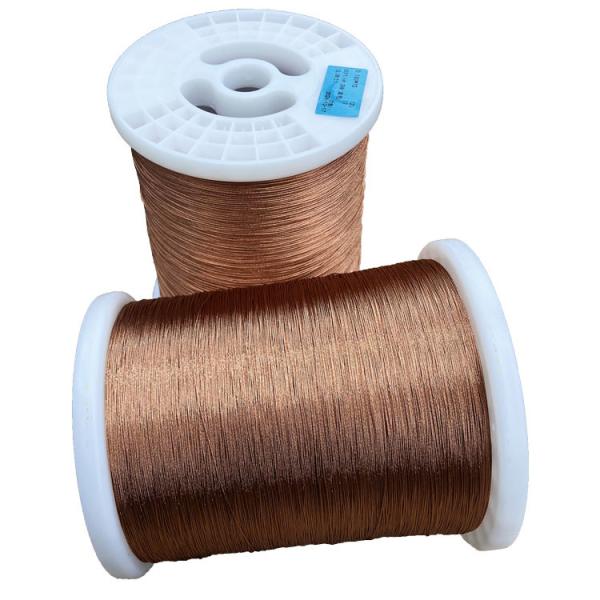

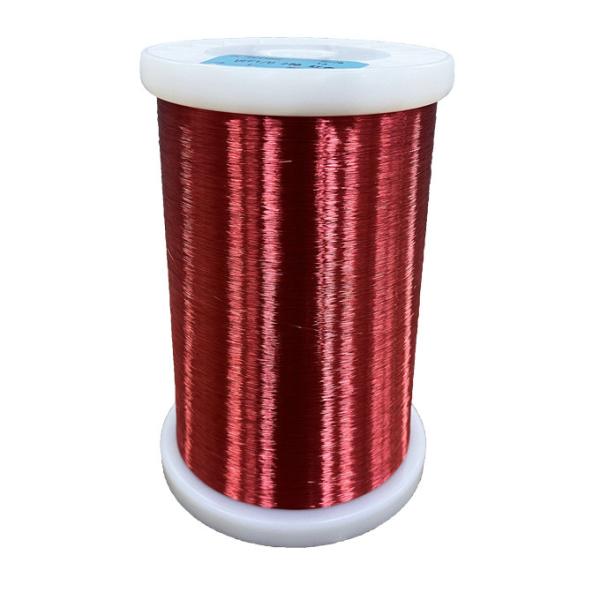

High Thermal Enamelled Round Copper UEWF Wire Grade One 0.04mm-2.60mm Polyurethane Enamelled Wire
High Thermal Enamelled Round Copper UEWF Wire Grade One 0.04mm-2.60mm Polyurethane Enamelled Wire
High Thermal Enamelled Round Copper UEWF Wire Grade One 0.04mm-2.60mm Polyurethane Enamelled Wire
High Thermal Enamelled Round Copper UEWF Wire Grade One 0.04mm-2.60mm Polyurethane Enamelled Wire
Specifications
Brand Name :
PEWSC
Model Number :
UEWF Grade one
Certification :
UL
Place of Origin :
China
MOQ :
The MOQ varies according to the size of the specification
Price :
Copper price plus processing fee plus freight
Payment Terms :
T/T 100% payment before shipment
Supply Ability :
Delivery 10-15 days after next order
Delivery Time :
3-5 work days
Packaging Details :
Box
Modle :
UEWF Grade one
Conductor Material :
Copper
Rated Voltage :
2800V
Diameter :
0.04mm-2.60mm
Applications :
For High Speed Coiling Processing
Temperature Gradede :
155℃
Color :
Could be customized
Warranty :
3 Years
Sample :
Free
Description

0.04mm-2.60mm UEWF Grade one High Theramal Polyurathane enamelled wire Theramal class 155

UEF1 enameled wire, fully known as heat resistant polyurethane enameled wire, belongs to polyurethane enameled wire.UEF1 enameled wire occupies a place in the winding wire market with its excellent performance and wide range of applications. The following are the main advantages of UEF1 enameled wire:

Wide application: UEF1 enameled wire is widely used in various motors, electrical appliances and household appliances.
Especially in recent years, the electric power industry has realized a sustained and rapid growth, and the rapid development of household appliances has brought a broader space for the application of UEF1 enameled wire.

Cost-effective: UEF1 enameled wire has a high cost-effective ratio as it guarantees high quality and long-term stable electrical performance at a reasonable price.

Environmentally friendly and safe: UEF1 enameled wire is made of environmentally friendly materials, making it safer to use and minimizing the impact on the environment.

In summary, UEF1 enameled wire has become a very popular and high-performance solenoid wire solution in the market with its high heat resistance, good mechanical strength, high frequency performance, colorability, direct solderability, wide range of applications and cost-effectiveness. Choosing UEF1 is a guarantee of high quality and long-term stable electrical performance.

Grade3 has the best heat resistance and is suitable for high ambient temperatures. The choice of insulation level should be considered in the context of the environment in which it is to be used.

High Thermal Enamelled Round Copper UEWF Wire Grade One 0.04mm-2.60mm Polyurethane Enamelled WireHigh Thermal Enamelled Round Copper UEWF Wire Grade One 0.04mm-2.60mm Polyurethane Enamelled Wire

GB ---Grade1 Unit﹕mm
Diameter of
Conduct		 Conductor
Tolerance		 Conductor Control
Benchmarks		 OD Control
Benchmarks		 Specification Boundaries Conductor
Resistance 20℃
(Ω/KM)		 Min Elongation
(%)		 Max.
Springiness
(°)		 Insulation breakdown voltage
(v)
Lower
Limit		 Upper
Limit		 Lower
Limit		 Upper
Limit		 Min. Increase
in Diameter		 Max. Finished
overall Diameter
0.040 ±0.002 0.039 0.041 0.045 0.049 0.004 0.049 15202 9 250
0.045 ±0.003 0.044 0.046 0.051 0.055 0.005 0.055 12445 9 275
0.050 ±0.003 0.049 0.051 0.056 0.060 0.005 0.060 9938 10 300
0.056 ±0.003 0.055 0.057 0.063 0.067 0.006 0.067 7815 10 325
0.063 ±0.003 0.062 0.064 0.071 0.076 0.007 0.076 6098 12 375
0.071 ±0.003 0.070 0.072 0.079 0.084 0.007 0.084 4747 13 425
0.080 ±0.003 0.079 0.081 0.088 0.094 0.007 0.094 3703 14 70 425
0.090 ±0.003 0.089 0.091 0.099 0.105 0.008 0.105 2900 15 67 500
0.100 ±0.003 0.099 0.101 0.109 0.116 0.008 0.117 2333 16 64 500
0.112 ±0.003 0.111 0.114 0.122 0.129 0.009 0.130 1848 17 64 1300
0.125 ±0.003 0.124 0.127 0.136 0.143 0.010 0.144 1475 17 62 1500
0.140 ±0.003 0.139 0.142 0.152 0.159 0.011 0.160 1170 18 59 1600
0.160 ±0.003 0.159 0.162 0.173 0.180 0.012 0.182 890.6 19 59 1700
0.180 ±0.003 0.179 0.182 0.195 0.202 0.013 0.204 700.7 20 57 1700
0.200 ±0.003 0.199 0.202 0.216 0.224 0.014 0.226 565.7 21 54 1800
0.224 ±0.003 0.223 0.226 0.241 0.249 0.015 0.252 449.5 21 51 1900
0.250 ±0.004 0.249 0.253 0.270 0.278 0.017 0.281 362.8 22 49 2100
0.280 ±0.004 0.279 0.283 0.301 0.309 0.018 0.312 288.2 22 47 2200
0.315 ±0.004 0.314 0.317 0.337 0.346 0.019 0.349 227.0 23 50 2200
0.355 ±0.004 0.354 0.357 0.378 0.387 0.020 0.392 178.2 23 48 2300
0.400 ±0.005 0.398 0.403 0.425 0.435 0.021 0.439 140.7 24 45 2300
0.450 ±0.005 0.448 0.453 0.476 0.486 0.022 0.491 110.9 25 44 2300
0.500 ±0.005 0.498 0.503 0.528 0.538 0.024 0.544 89.59 25 43 2400
0.560 ±0.006 0.557 0.563 0.589 0.599 0.025 0.606 71.53 26 41 2500
0.630 ±0.006 0.627 0.633 0.661 0.673 0.027 0.679 56.38 27 46 2600
0.710 ±0.007 0.707 0.714 0.743 0.755 0.028 0.672 44.42 28 44 2600
0.800 ±0.008 0.797 0.804 0.835 0.847 0.030 0.855 35.00 28 41 2600
0.900 ±0.009 0.897 0.904 0.937 0.949 0.032 0.959 27.65 29 45 2700
1.000 ±0.010 0.997 1.004 1.039 1.053 0.034 1.062 22.40 30 42 2700
1.120 ±0.011 1.116 1.124 1.159 1.193 0.034 1.184 17.85 30 39 2700
1.250 ±0.013 1.246 1.254 1.290 1.304 0.035 1.316 14.35 31 35 2700
1.400 ±0.014 1.396 1.406 1.443 1.458 0.036 1.468 11.43 32 32 2700
1.600 ±0.016 1.596 1.606 1.645 1.660 0.038 1.670 8.75 32 28 2700
