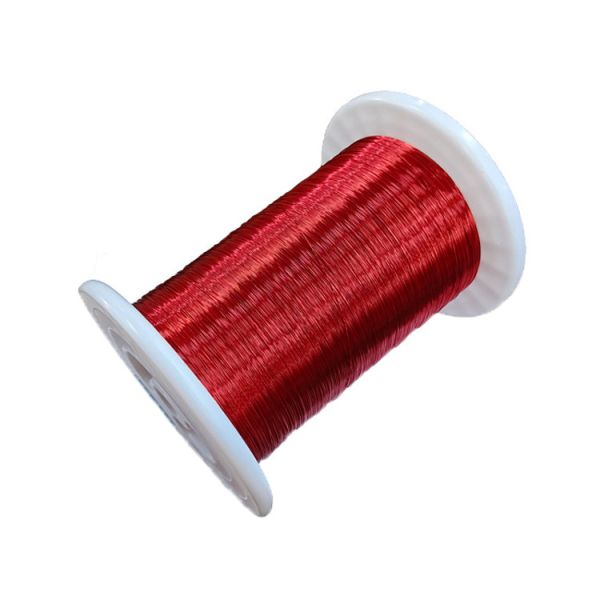

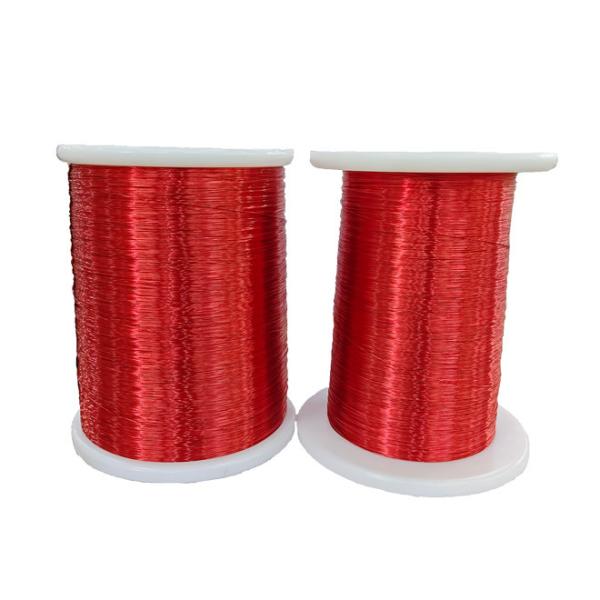

UL Certificated Enamelled Round Copper Wire Grade Two 2800V Rated Voltage 0.04mm-1.60mm
UL Certificated Enamelled Round Copper Wire Grade Two 2800V Rated Voltage 0.04mm-1.60mm
UL Certificated Enamelled Round Copper Wire Grade Two 2800V Rated Voltage 0.04mm-1.60mm
UL Certificated Enamelled Round Copper Wire Grade Two 2800V Rated Voltage 0.04mm-1.60mm
Specifications
Brand Name :
PEWSC
Model Number :
UEWF Grade two
Certification :
UL
Place of Origin :
China
MOQ :
The MOQ varies according to the size of the specification
Price :
Copper price plus processing fee plus freight
Payment Terms :
T/T 100% payment before shipment
Supply Ability :
Delivery 10-15 days after next order
Delivery Time :
3-5 work days
Packaging Details :
Box
Material :
Copper
Rated Voltage :
2800V
Diameter :
0.04mm-1.60mm
Application :
For high speed coiling processing,general motor
Temperature :
155℃
Color :
Natural、Red、Green
Category :
UEWF Grade two
Warranty :
3 Years
Sample :
Free
Description

0.04mm-1.60mm UEWF Grade two High Thermal Polyurathane enamelled wire Theramal class 155

Grade two has a thicker insulating layer and is safer and more reliable at higher voltages and temperatures.

UEF1 enameled wire, fully known as heat resistant polyurethane enameled wire, belongs to polyurethane enameled wire.UEF1 enameled wire occupies a place in the winding wire market with its excellent performance and wide range of applications. The following are the main advantages of UEF1 enameled wire:

Wide application: UEF1 enameled wire is widely used in various motors, electrical appliances and household appliances.
Especially in recent years, the electric power industry has realized a sustained and rapid growth, and the rapid development of household appliances has brought a broader space for the application of UEF1 enameled wire.

High-frequency performance: UEF1 enameled wire is suitable for high-frequency signal transmission, which means it can maintain good electrical properties under high-frequency conditions, suitable for use in electronics, electrical appliances and other fields.

Dyeable Characteristics: UEF1 enameled wire has dyeable characteristics, which makes it possible to quickly identify and differentiate different connecting wires through color coding when carrying out maintenance and overhauling of electrical equipment, which greatly improves work efficiency.

UL Certificated Enamelled Round Copper Wire Grade Two 2800V Rated Voltage 0.04mm-1.60mmUL Certificated Enamelled Round Copper Wire Grade Two 2800V Rated Voltage 0.04mm-1.60mm

GB ---Grade2 Unit﹕mm
Diameter of
Conduct		 Conductor
Tolerance		 Conductor Control
Benchmarks		 OD Control
Benchmarks		 Specification Boundaries Conductor
Resistance 20℃
(Ω/KM)		 Min Elongation
(%)		 Max.
Springiness
(°)		 Insulation breakdown voltage
(v)
Lower
Limit		 Upper
Limit		 Lower
Limit		 Upper
Limit		 Min. Increase
in Diameter		 Max. Finished
overall Diameter
0.040 ±0.002 0.039 0.041 0.049 0.053 0.008 0.054 15202 9 475
0.045 ±0.003 0.044 0.046 0.056 0.060 0.010 0.061 12445 9 550
0.050 ±0.003 0.049 0.051 0.061 0.065 0.010 0.066 9938 10 600
0.056 ±0.003 0.055 0.057 0.067 0.071 0.010 0.074 7815 10 650
0.063 ±0.003 0.062 0.064 0.076 0.081 0.012 0.083 6098 12 700
0.071 ±0.003 0.070 0.072 0.084 0.089 0.012 0.091 4747 13 700
0.080 ±0.003 0.079 0.081 0.095 0.100 0.014 0.101 3703 14 80 850
0.090 ±0.003 0.089 0.091 0.106 0.111 0.015 0.113 2900 15 77 900
0.100 ±0.003 0.099 0.101 0.117 0.122 0.016 0.125 2333 16 73 950
0.112 ±0.003 0.111 0.114 0.130 0.136 0.017 0.139 1848 17 73 2700
0.125 ±0.003 0.124 0.127 0.145 0.151 0.019 0.154 1475 17 70 2800
0.140 ±0.003 0.139 0.142 0.162 0.168 0.021 0.171 1170 18 67 3000
0.160 ±0.003 0.159 0.162 0.184 0.190 0.023 0.194 890.6 19 67 3200
0.180 ±0.003 0.179 0.182 0.207 0.213 0.025 0.217 700.7 20 65 3300
0.200 ±0.003 0.199 0.202 0.229 0.235 0.027 0.239 565.7 21 62 3500
0.224 ±0.003 0.223 0.226 0.255 0.262 0.029 0.266 449.5 21 59 3700
0.250 ±0.004 0.249 0.253 0.285 0.292 0.032 0.297 362.8 22 56 3900
0.280 ±0.004 0.279 0.283 0.316 0.323 0.033 0.329 288.2 22 53 4000
0.315 ±0.004 0.314 0.317 0.353 0.361 0.035 0.367 227.0 23 55 4100
0.355 ±0.004 0.354 0.357 0.396 0.404 0.038 0.411 178.2 23 53 4300
0.400 ±0.005 0.398 0.403 0.444 0.454 0.040 0.459 140.7 24 50 4400
0.450 ±0.005 0.448 0.453 0.496 0.506 0.042 0.513 110.9 25 48 4400
0.500 ±0.005 0.498 0.503 0.549 0.559 0.045 0.566 89.59 25 47 4600
0.560 ±0.006 0.557 0.563 0.611 0.621 0.047 0.630 71.53 26 44 4600
0.630 ±0.006 0.627 0.633 0.684 0.696 0.050 0.704 56.38 27 50 4800
0.710 ±0.007 0.707 0.714 0.768 0.780 0.053 0.789 44.42 28 47 4800
0.800 ±0.008 0.797 0.804 0.861 0.873 0.056 0.884 35.00 28 43 4900
0.900 ±0.009 0.897 0.904 0.965 0.977 0.060 0.989 27.65 29 48 5000
1.000 ±0.010 0.997 1.004 1.068 1.082 0.063 1.094 22.40 30 45 5000
1.120 ±0.011 1.116 1.124 1.190 1.204 0.065 1.217 17.85 30 41 5000
1.250 ±0.013 1.246 1.254 1.322 1.336 0.067 1.349 14.35 31 37 5000
1.400 ±0.014 1.396 1.406 1.476 1.490 0.069 1.502 11.43 32 34 5000
1.600 ±0.016 1.596 1.606 1.678 1.694 0.071 1.706 8.75 32 30 5000
1.800 ±0.018 1.796 1.806 1.880 1.896 0.073 1.909 6.91 32 5000
2.000 ±0.020 1.994 2.006 2.082 2.098 0.075 2.112 5.60 33 5000
2.240 ±0.022 2.234 2.246 2.324 2.342 0.077 2.355 4.46 33 5000
2.500 ±0.025 2.494 2.506 2.586 2.604 0.079 2.618 3.58 33 5000
2.800 ±0.028 2.794 2.808 2.890 2.908 0.081 2.922 2.86 34 2500
3.150 ±0.032 3.144 3.158 3.243 3.263 0.084 3.276 2.26 34 2500
