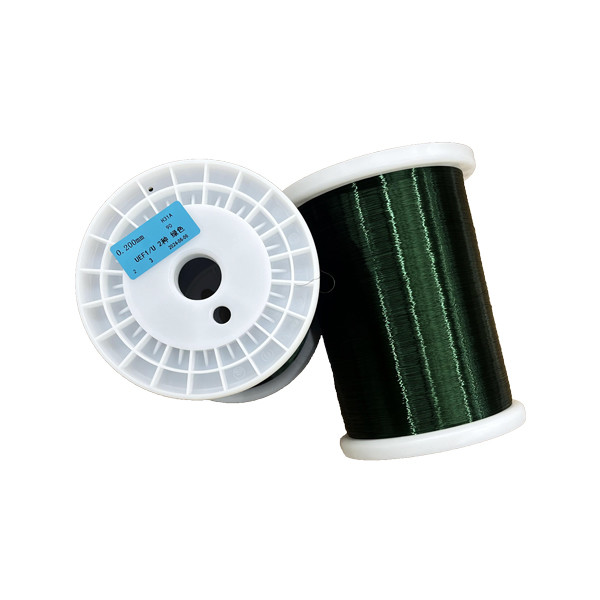

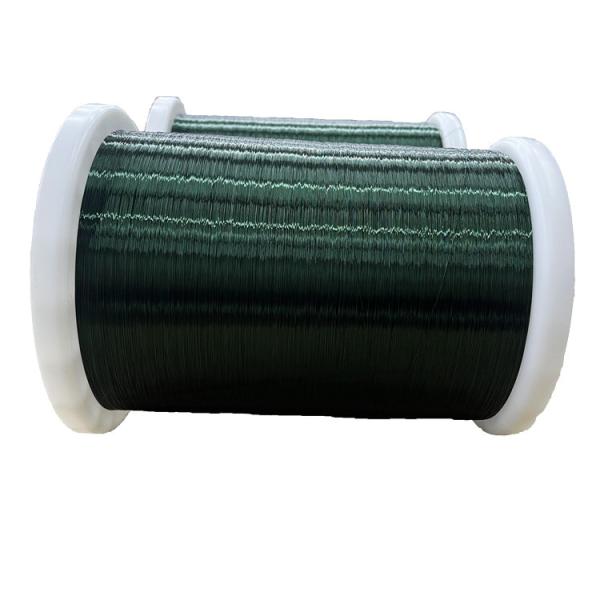

High Theramal Polyurathane Enamelled Round Copper Wire Grade Three 0.04mm - 1.60mm Class 155
High Theramal Polyurathane Enamelled Round Copper Wire Grade Three 0.04mm - 1.60mm Class 155
High Theramal Polyurathane Enamelled Round Copper Wire Grade Three 0.04mm - 1.60mm Class 155
High Theramal Polyurathane Enamelled Round Copper Wire Grade Three 0.04mm - 1.60mm Class 155
Specifications
Brand Name :
PEWSC
Model Number :
UEWF Grade three
Certification :
UL
Place of Origin :
China
MOQ :
The MOQ varies according to the size of the specification
Price :
Copper price plus processing fee plus freight
Payment Terms :
T/T 100% payment before shipment
Supply Ability :
Delivery 10-15 days after next order
Delivery Time :
3-5 work days
Packaging Details :
Box
Modle :
UEWF Grade three
Material :
Copper
Rated Voltage :
2800V
Diameter :
0.04mm-1.60mm
Application :
For high speed coiling processing
Temperature Grade :
155℃
Color :
Natural、Red、Green
Warranty :
3 Years
Sample :
Free
Description

0.04mm-1.60mm UEWF Grade three High Theramal Polyurathane enamelled wire Theramal class 155

,

Grade3 has the best heat resistance and is suitable for high ambient temperatures. The choice of insulation level should be considered in the context of the environment in which it is to be used.

The choice of insulation level should be considered in conjunction with the usage environment.

Good mechanical strength: thanks to the use of high quality raw materials and advanced production processes, UEF1 enameled wire has good mechanical strength, which can maintain the stability of shape and performance during the winding process, reducing the risk of wire breakage and deformation.

High-frequency performance: UEF1 enameled wire is suitable for high-frequency signal transmission, which means it can maintain good electrical properties under high-frequency conditions, suitable for use in electronics, electrical appliances and other fields.

Dyeable Characteristics: UEF1 enameled wire has dyeable characteristics, which makes it possible to quickly identify and differentiate different connecting wires through color coding when carrying out maintenance and overhauling of electrical equipment, which greatly improves work efficiency.

Direct Weldability: UEF1 enameled wire has direct weldability, which means that the windings and coils can be directly welded during the motor manufacturing process, simplifying the welding process and reducing the cost of motor manufacturing.

High Theramal Polyurathane Enamelled Round Copper Wire Grade Three 0.04mm - 1.60mm Class 155High Theramal Polyurathane Enamelled Round Copper Wire Grade Three 0.04mm - 1.60mm Class 155

GB ---Grade3 Unit﹕mm
Diameter of
Conduct		 Conductor
Tolerance		 Conductor Control
Benchmarks		 OD Control
Benchmarks		 Specification Boundaries Conductor
Resistance 20℃
(Ω/KM)		 Min Elongation
(%)		 Max.
Springiness
(°)		 Insulation breakdown voltage
(v)
Lower
Limit		 Upper
Limit		 Lower
Limit		 Upper
Limit		 Min. Increase
in Diameter		 Max. Finished
overall Diameter
0.071 ±0.003 0.070 0.072 0.09 0.095 0.018 0.097 4747 13 -- 1100
0.080 ±0.003 0.079 0.081 0.101 0.107 0.020 0.108 3703 14 100 1200
0.090 ±0.003 0.089 0.091 0.113 0.119 0.022 0.120 2900 15 94 1300
0.100 ±0.003 0.099 0.101 0.124 0.131 0.023 0.132 2333 16 90 1400
0.112 ±0.003 0.111 0.114 0.139 0.146 0.026 0.147 1848 17 88 3900
0.125 ±0.003 0.124 0.127 0.154 0.161 0.028 0.163 1475 17 84 4100
0.140 ±0.003 0.139 0.142 0.171 0.178 0.030 0.181 1170 18 79 4200
0.160 ±0.003 0.159 0.162 0.194 0.201 0.033 0.205 890.6 19 78 4400
0.180 ±0.003 0.179 0.182 0.218 0.225 0.036 0.229 700.7 20 75 4700
0.200 ±0.003 0.199 0.202 0.241 0.249 0.039 0.252 565.7 21 72 5100
0.224 ±0.003 0.223 0.226 0.269 0.277 0.043 0.280 449.5 21 68 5200
0.250 ±0.004 0.249 0.253 0.301 0.309 0.048 0.312 362.8 22 65 5500
0.280 ±0.004 0.279 0.283 0.333 0.341 0.050 0.345 288.2 22 61 5800
0.315 ±0.004 0.314 0.317 0.371 0.38 0.053 0.384 227.0 23 62 6100
0.355 ±0.004 0.354 0.357 0.415 0.423 0.057 0.428 178.2 23 59 6400
0.400 ±0.005 0.398 0.403 0.464 0.474 0.060 0.478 140.7 24 55 6600
0.450 ±0.005 0.448 0.453 0.518 0.528 0.064 0.533 110.9 25 53 6800
0.500 ±0.005 0.498 0.503 0.571 0.581 0.067 0.587 89.59 25 51 7000
0.560 ±0.006 0.557 0.563 0.635 0.645 0.071 0.653 71.53 26 48 7100
0.630 ±0.006 0.627 0.633 0.709 0.721 0.075 0.728 56.38 27 53 7100
0.710 ±0.007 0.707 0.714 0.795 0.807 0.080 0.814 44.42 28 50 7200
0.800 ±0.008 0.797 0.804 0.89 0.902 0.085 0.911 35.00 28 46 7400
0.900 ±0.009 0.897 0.904 0.995 1.007 0.090 1.018 27.65 29 51 7600
1.000 ±0.010 0.997 1.004 1.1 1.114 0.095 1.124 22.40 30 47 7600
1.120 ±0.011 1.116 1.124 1.223 1.237 0.098 1.248 17.85 30 34 7600
1.250 ±0.013 1.246 1.254 1.355 1.369 0.100 1.381 14.35 31 39 7600
1.400 ±0.014 1.396 1.406 1.509 1.523 0.103 1.535 11.43 32 36 7600
1.600 ±0.016 1.596 1.606 1.714 1.73 0.107 1.740 8.75 32 32 7600
1.800 ±0.018 1.796 1.806 1.917 1.933 0.110 1.944 6.91 32 7600
2.000 ±0.020 1.994 2.006 2.12 2.136 0.113 2.148 5.60 33 7600
2.240 ±0.022 2.234 2.246 2.363 2.381 0.116 2.392 4.46 33 7600
2.500 ±0.025 2.494 2.506 2.626 2.644 0.119 2.656 3.58 33 7600
2.800 ±0.028 2.794 2.808 2.932 2.95 0.123 2.961 2.86 34 3800
3.150 ±0.032 3.144 3.158 3.286 3.306 0.127 3.316 2.26 34 3800
