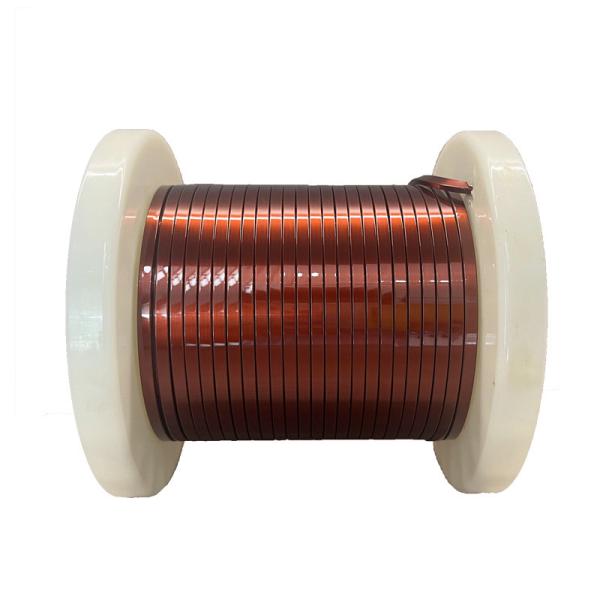

0.8mm - 3mm Thickness Rectangular Enameled Copper Wire Polyimide Corona Resistant
0.8mm - 3mm Thickness Rectangular Enameled Copper Wire Polyimide Corona Resistant
0.8mm - 3mm Thickness Rectangular Enameled Copper Wire Polyimide Corona Resistant
0.8mm - 3mm Thickness Rectangular Enameled Copper Wire Polyimide Corona Resistant
0.8mm - 3mm Thickness Rectangular Enameled Copper Wire Polyimide Corona Resistant
0.8mm - 3mm Thickness Rectangular Enameled Copper Wire Polyimide Corona Resistant
0.8mm - 3mm Thickness Rectangular Enameled Copper Wire Polyimide Corona Resistant
0.8mm - 3mm Thickness Rectangular Enameled Copper Wire Polyimide Corona Resistant
Specifications
Brand Name :
PEWSC
Model Number :
HEVW-240C
Certification :
UL
Place of Origin :
China
MOQ :
The MOQ varies according to the size of the specification
Price :
Copper price plus processing fee plus freight
Payment Terms :
T/T 100% payment before shipment
Supply Ability :
Delivery 10-15 days after next order
Delivery Time :
3-5 work days
Packaging Details :
Box
Range of width :
2.00-8.00
Product Section area :
2-20mm
Product Type :
HEVW-240C
Conductor Material :
Oxygen free copper
Temperature Resistance :
240℃
Enamel film flexibility :
widing with 1 times thickness
Range of thickness :
0.80-3.00
Ratio of width to thickness :
1-6
Double-sided enamel film thickness :
Max 0.3
Color :
Red、Blue、Green、Yellow、Natural
Description

HEVW -240C Polyimide Corona Resistant Enameled Rectangular Copper Wire

Rectangular Enamelled Wires for EVs

Rectangular enamelled wires, a core component in the motors of Electric Vehicles (EVs), outperformother general rectangular magnet wires in durability and reliability, through features such as excellent mechanical properties, corona resistance, heat resistance, ATF resistance and high PDlV.

PEWC's rectangular enamelled wires possess several outstanding properties that support the EV industry's ability to offer robust motors, which enhance vehicle performance and benefit driving safety,including:

Better corona resistance, prolonging the motors' lifespan; High PDlV, preventing partial discharges and extending the coils' lifespan;

Good compatibility with ATF formulations and suitability for oil-cooled motors.

PEWC produces its rectangular enamelled wires for EVs by utilizing European state-of-the-art manufacturing equipment and introducing the precision instruments for on-line monitoring throughout production process, thereby ensuring consistency in product quality and performance.

0.8mm - 3mm Thickness Rectangular Enameled Copper Wire Polyimide Corona Resistant0.8mm - 3mm Thickness Rectangular Enameled Copper Wire Polyimide Corona Resistant0.8mm - 3mm Thickness Rectangular Enameled Copper Wire Polyimide Corona Resistant
