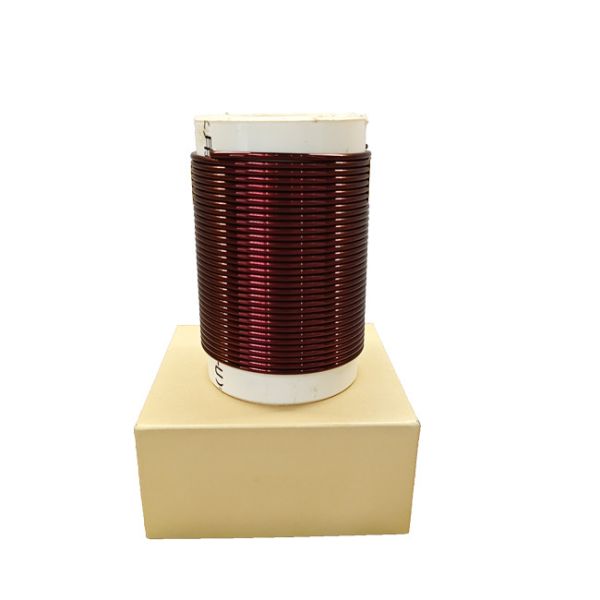

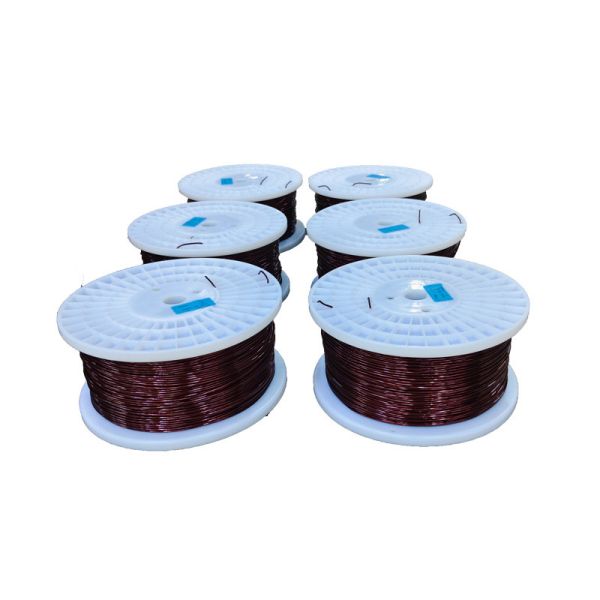

Thermal Class 155 Polyester Enamelled Cable PEW Grade Two Non Weldable ROHS Approved
Thermal Class 155 Polyester Enamelled Cable PEW Grade Two Non Weldable ROHS Approved
Thermal Class 155 Polyester Enamelled Cable PEW Grade Two Non Weldable ROHS Approved
Thermal Class 155 Polyester Enamelled Cable PEW Grade Two Non Weldable ROHS Approved
Specifications
Brand Name :
PEWSC
Model Number :
PEW Grade Two
Certification :
UL,ROHS
Place of Origin :
China
MOQ :
The MOQ Varies According to the Size of the Specification
Price :
Copper Price plus Processing Fee plus Freight
Payment Terms :
T/T 100% Payment before Shipment
Supply Ability :
Delivery 10-15 Days after Next Order
Delivery Time :
3-5 Work Days
Packaging Details :
Box
Model :
PEW Grade Two
Material :
Copper
Rated Voltage :
2800V The Voltage Resistance Varies According to the Thickness of the Film and the Size of the Specification
Temperature Grad :
155℃
Applications :
For Small Motor, General Motor
Enamel Thichness :
Grade two
Color Options :
Could be Customized
Sample :
Free
Warranty :
3 Years
Shape :
Round
Package :
Carton
Description

0.08mm-3.20mm polyester enamelled wire PEW Grade two Non weldable 155 Thermal Class 155

Grade Two enameled wire is a magnet wire material designedPEW for high-end electronic and electrical machines that require exacting precision. This intermediate grade of enameled wire offers improved cost-effectiveness while maintaining high performance, making it ideal for applications that require a balance between performance and economic considerat.

This enameled wire is manufactured through a precision process using high quality base metal materials and advanced insulating coatings to provide good conductivity and excellent electrical insulation. The insulating coating is uniform, continuous, and highly resistant to environmental changes, both in temperature and humidity.

Designed with ease of use and compatibility in mind, PEW Grade Two's standard size and thickness are compatible with a wide range of winding equipment and motor designs, making integration easier. Additionally, it is physically durable and resistant to the pulling and crushing encountered in daily operations, increasing the product's lifespan.

In terms of environmental protection, PEW Grade Two meets international environmental standards and has minimal negative impact on humans and the environment during use. This makes it the material of choice for many responsible companies in today's increasingly stringent environmental regulations.

Overall, PEW Grade Two enameled wire is the ideal choice for those seeking high performance, high reliability and cost-effective industrial solutions. It combines top-notch technology with reasonable cost-effectiveness to provide users with a well-balanced, high-quality option.

Thermal Class 155 Polyester Enamelled Cable PEW Grade Two Non Weldable ROHS ApprovedThermal Class 155 Polyester Enamelled Cable PEW Grade Two Non Weldable ROHS Approved

GB ---Grade2 Unit﹕mm
Diameter of
Conduct		 Conductor
Tolerance		 Conductor Control
Benchmarks		 OD Control
Benchmarks		 Specification Boundaries Conductor
Resistance 20℃
(Ω/KM)		 Min Elongation
(%)		 Max.
Springiness
(°)		 Insulation breakdown voltage
(v)
Lower
Limit		 Upper
Limit		 Lower
Limit		 Upper
Limit		 Min. Increase
in Diameter		 Max. Finished
overall Diameter
0.040 ±0.002 0.039 0.041 0.049 0.053 0.008 0.054 15202 9 475
0.045 ±0.003 0.044 0.046 0.056 0.060 0.010 0.061 12445 9 550
0.050 ±0.003 0.049 0.051 0.061 0.065 0.010 0.066 9938 10 600
0.056 ±0.003 0.055 0.057 0.067 0.071 0.010 0.074 7815 10 650
0.063 ±0.003 0.062 0.064 0.076 0.081 0.012 0.083 6098 12 700
0.071 ±0.003 0.070 0.072 0.084 0.089 0.012 0.091 4747 13 700
0.080 ±0.003 0.079 0.081 0.095 0.100 0.014 0.101 3703 14 80 850
0.090 ±0.003 0.089 0.091 0.106 0.111 0.015 0.113 2900 15 77 900
0.100 ±0.003 0.099 0.101 0.117 0.122 0.016 0.125 2333 16 73 950
0.112 ±0.003 0.111 0.114 0.130 0.136 0.017 0.139 1848 17 73 2700
0.125 ±0.003 0.124 0.127 0.145 0.151 0.019 0.154 1475 17 70 2800
0.140 ±0.003 0.139 0.142 0.162 0.168 0.021 0.171 1170 18 67 3000
0.160 ±0.003 0.159 0.162 0.184 0.190 0.023 0.194 890.6 19 67 3200
0.180 ±0.003 0.179 0.182 0.207 0.213 0.025 0.217 700.7 20 65 3300
0.200 ±0.003 0.199 0.202 0.229 0.235 0.027 0.239 565.7 21 62 3500
0.224 ±0.003 0.223 0.226 0.255 0.262 0.029 0.266 449.5 21 59 3700
0.250 ±0.004 0.249 0.253 0.285 0.292 0.032 0.297 362.8 22 56 3900
0.280 ±0.004 0.279 0.283 0.316 0.323 0.033 0.329 288.2 22 53 4000
0.315 ±0.004 0.314 0.317 0.353 0.361 0.035 0.367 227.0 23 55 4100
0.355 ±0.004 0.354 0.357 0.396 0.404 0.038 0.411 178.2 23 53 4300
0.400 ±0.005 0.398 0.403 0.444 0.454 0.040 0.459 140.7 24 50 4400
0.450 ±0.005 0.448 0.453 0.496 0.506 0.042 0.513 110.9 25 48 4400
0.500 ±0.005 0.498 0.503 0.549 0.559 0.045 0.566 89.59 25 47 4600
0.560 ±0.006 0.557 0.563 0.611 0.621 0.047 0.630 71.53 26 44 4600
0.630 ±0.006 0.627 0.633 0.684 0.696 0.050 0.704 56.38 27 50 4800
0.710 ±0.007 0.707 0.714 0.768 0.780 0.053 0.789 44.42 28 47 4800
0.800 ±0.008 0.797 0.804 0.861 0.873 0.056 0.884 35.00 28 43 4900
0.900 ±0.009 0.897 0.904 0.965 0.977 0.060 0.989 27.65 29 48 5000
1.000 ±0.010 0.997 1.004 1.068 1.082 0.063 1.094 22.40 30 45 5000
1.120 ±0.011 1.116 1.124 1.190 1.204 0.065 1.217 17.85 30 41 5000
1.250 ±0.013 1.246 1.254 1.322 1.336 0.067 1.349 14.35 31 37 5000
1.400 ±0.014 1.396 1.406 1.476 1.490 0.069 1.502 11.43 32 34 5000
1.600 ±0.016 1.596 1.606 1.678 1.694 0.071 1.706 8.75 32 30 5000
1.800 ±0.018 1.796 1.806 1.880 1.896 0.073 1.909 6.91 32 5000
2.000 ±0.020 1.994 2.006 2.082 2.098 0.075 2.112 5.60 33 5000
2.240 ±0.022 2.234 2.246 2.324 2.342 0.077 2.355 4.46 33 5000
2.500 ±0.025 2.494 2.506 2.586 2.604 0.079 2.618 3.58 33 5000
2.800 ±0.028 2.794 2.808 2.890 2.908 0.081 2.922 2.86 34 2500
3.150 ±0.032 3.144 3.158 3.243 3.263 0.084 3.276 2.26 34 2500
