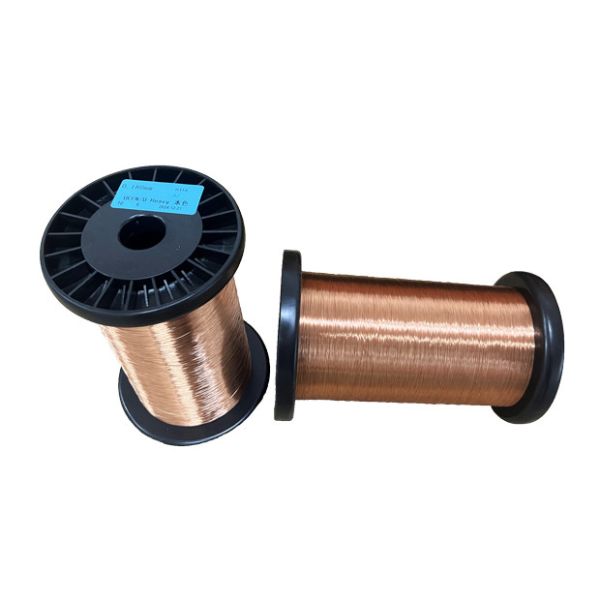

Modified Polyurethane Litz Wire / Enamelled Copper Wire No Injuries And Adhesion
Modified Polyurethane Litz Wire / Enamelled Copper Wire No Injuries And Adhesion
Modified Polyurethane Litz Wire / Enamelled Copper Wire No Injuries And Adhesion
Modified Polyurethane Litz Wire / Enamelled Copper Wire No Injuries And Adhesion
Specifications
Brand Name :
PEWSC
Model Number :
UEWH/U@180℃ Type2
Certification :
ROHS
Place of Origin :
China
MOQ :
The MOQ varies according to the size of the specification
Price :
Copper price plus processing fee plus freight
Payment Terms :
T/T 100% payment before shipment
Supply Ability :
Delivery 10-15 days after next order
Delivery Time :
3-5 work days
Packaging Details :
Box
Product Name :
UEWH/U@180℃ Type2
Material :
Copper
Appearance :
Surface no injuries and adhesion
Twisted pitch :
Calculate the twist pitch.
Twist direction :
In normal conditions of twisted direction is clockwise.
Resistance to cut though :
Not less than 225℃ and 2 min single wire
Solderability :
Solder shall adhere to the conductor uniformly
Application :
All types of high-frequency coil equipment
Adherence :
No crack on the film
Specification :
0.10x260
Pinhole :
Twisted wire of the pinhole of twisted line number to calculate
Description

Modifiy polyurethane Enamelled Litz Copper Wire UEWH/U@180℃ Type2

3. Test methods :

3.1 Appearance : Comply with JISC 3216.

3.2 Dimension :Comply with JSC 3216-2.

3.3Pinhole : Comply with JISC 3216-5(length of sample is 6 meters).

3.4 Flexibility : Single wire comply with JSC 3216-3.

3.5.Adherence:Single wire comply with JSC 3216-3.

3.6 Resistance to abrasion : Single wire comply with JSC 3216-3.

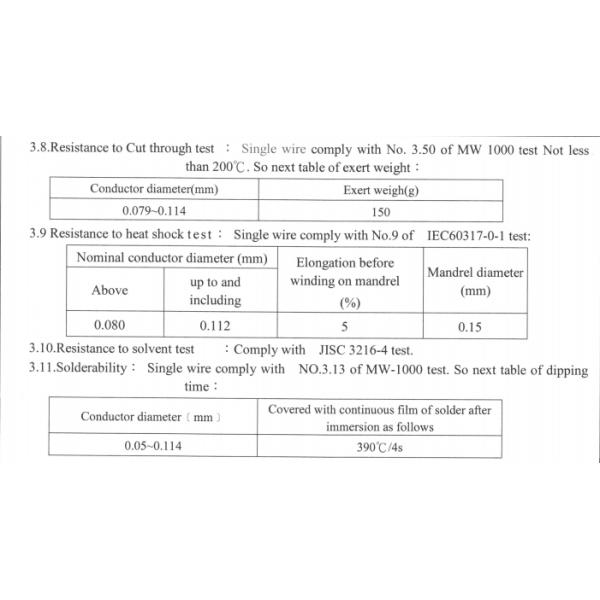

3.7 Dielectric breakdown voltage : Comply with JlSC 3216-5. Next table of hook no and twistednumer (twisted wire).

Modified Polyurethane Litz Wire / Enamelled Copper Wire No Injuries And Adhesion

Modified Polyurethane Litz Wire / Enamelled Copper Wire No Injuries And Adhesion

Modified Polyurethane Litz Wire / Enamelled Copper Wire No Injuries And Adhesion

NEMA---Single Unit﹕mm
AWG Diameter of
Conduct		 Conductor Control
Benchmarks		 OD Control
Benchmarks		 Specification Boundaries Conductor
Resistance 20℃
(Ω/KM)		 Insulation breakdownvoltage
(v)		 Min Elongation
(%)		 Max.
Springiness
(°)		 Resistance to
abrasion
Lower
Limit		 Upper
Limit		 Lower
Limit		 Median Upper
Limit		 Min. Increase
in Diameter		 Max. Finished
overall Diameter		 Average Minimum
44 0.051 +0.002 0.050 0.052 0.056 0.059 0.060 0.005 0.061 9527.95 500 14 -- -- --
-0.003
43 0.056 +0.002 0.055 0.057 0.063 ------- 0.066 0.005 0.069 7815.03 550 15 -- -- --
-0.003
42 0.064 +0.002 0.063 0.065 0.071 0.073 0.075 0.005 0.076 5899.60 625 16 -- -- --
-0.003
41 0.071 +0.003 0.070 0.072 0.079 0.081 0.083 0.008 0.084 4610.88 700 17 -- -- --
-0.002
40 0.079 +0.002 0.078 0.080 0.087 0.090 0.093 0.008 0.094 3800.62 775 17 -- -- --
-0.003
39 0.089 +0.002 0.088 0.090 0.099 0.102 0.105 0.008 0.107 2968.15 850 18 -- -- --
-0.003
38 0.102 +0.002 0.101 0.103 0.111 0.114 0.117 0.008 0.118 2239.81 950 19 -- -- --
-0.003
37 0.114 +0.003 0.113 0.115 0.125 0.128 0.131 0.010 0.132 1750.03 1075 20 -- -- --
-0.002
36 0.127 +0.003 0.126 0.128 0.139 0.142 0.145 0.010 0.147 1427.71 1200 20 -- -- --
-0.003
35 0.142 +0.003 0.141 0.143 0.154 0.157 0.160 0.010 0.165 1120.02 1325 21 -- -- --
-0.002
34 0.16 +0.003 0.159 0.161 0.175 0.178 0.181 0.013 0.183 890.60 1500 22 -- -- --
-0.003
33 0.18 +0.003 0.179 0.181 0.195 0.199 0.203 0.013 0.206 692.85 1675 23 -- -- --
-0.002
32 0.203 +0.003 0.202 0.205 0.220 0.224 0.228 0.015 0.229 543.36 1850 24 -- -- --
-0.002
31 0.226 +0.003 0.225 0.228 0.243 0.247 0.251 0.015 0.254 437.51 2075 24 -- -- --
-0.002
30 0.254 +0.002 0.252 0.256 0.274 0.278 0.282 0.018 0.284 348.45 2300 25 66 295 250
-0.003
29 0.287 +0.003 0.285 0.289 0.308 0.312 0.316 0.018 0.320 272.17 2375 26 61 310 265
-0.003
28 0.32 +0.003 0.318 0.322 0.343 0.347 0.351 0.020 0.356 217.08 2425 26 55 335 285
-0.002
27 0.361 +0.002 0.358 0.363 0.383 0.387 0.391 0.020 0.396 171.28 2500 27 50 355 300
-0.003
26 0.404 +0.002 0.401 0.406 0.429 0.433 0.437 0.023 0.439 137.89 2550 27 76 380 325
-0.005
25 0.455 +0.002 0.452 0.457 0.480 0.485 0.490 0.023 0.493 108.41 2625 28 72 400 340
-0.005
24 0.511 +0.002 0.507 0.513 0.538 0.543 0.548 0.025 0.551 86.08 2700 28 67 430 365
-0.006
23 0.574 +0.003 0.570 0.576 0.601 0.606 0.611 0.025 0.617 67.8 2775 29 62 460 390
-0.005
22 0.643 +0.002 0.639 0.645 0.673 0.678 0.683 0.028 0.686 54.44 2850 29 58 490 415
-0.008
21 0.724 +0.002 0.720 0.726 0.754 0.760 0.766 0.028 0.770 42.82 2925 30 53 525 445
-0.008
20 0.813 +0.005 0.808 0.816 0.846 0.852 0.858 0.030 0.864 33.88 3000 30 66 560 475
-0.008
19 0.912 +0.005 0.907 0.915 0.945 0.951 0.957 0.030 0.963 26.98 3075 31 62 600 510
-0.01
18 1.024 +0.005 1.019 1.027 1.060 1.066 1.072 0.033 1.077 21.39 3175 32 58 645 550
-0.011
17 1.151 +0.005 1.145 1.154 1.190 1.196 1.202 0.036 1.207 16.95 3250 32 54 690 585
-0.013
16 1.29 +0.008 1.284 1.293 1.330 1.336 1.342 0.036 1.349 13.44 3325 33 50 735 625
-0.012
15 1.45 +0.008 1.444 1.453 1.492 1.498 1.505 0.038 1.509 10.66 3425 33 46 780 665
-0.015
14 1.628 +0.008 1.621 1.631 1.673 1.680 1.687 0.041 1.692 8.44 3525 33 42 840 715
-0.015
The above single wear resistance value is applicable to MW-5C 35C 30C 81C 80C 24C 28C 76C , voltage resistance is applicable to MW-5C 35C 30C 81C 79C 75C 77C 26C .
