0.1x9 0.1x15 Twisted Litz Wire Type 2 Polyurethane Enamelled Copper Wire
0.1x9 0.1x15 Twisted Litz Wire Type 2 Polyurethane Enamelled Copper Wire
Specifications
Brand Name :
PEWSC
Model Number :
Twisted WireUEF1/U@155℃Type2
Certification :
ROHS
Place of Origin :
China
MOQ :
The MOQ varies according to the size of the specification
Price :
Copper price plus processing fee plus freight
Payment Terms :
T/T 100% payment before shipment
Supply Ability :
Delivery 10-15 days after next order
Delivery Time :
3-5 work days
Packaging Details :
Box
Product Name :
Twisted Wire UEF1/U@155℃Type2
Material :
Copper
Appearance :
Smooth surface and color uniform
Twisted pitch :
Calculate the twist pitch.
Twist direction :
In normal conditions of twisted direction is clockwise.

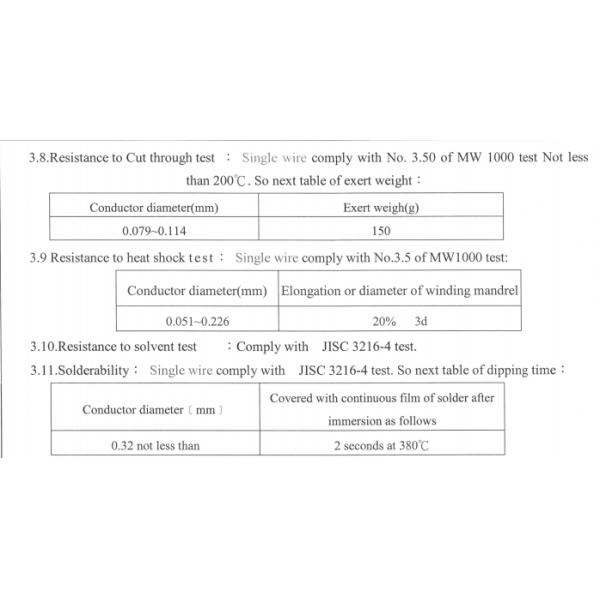

Resistance to cut though :
Not less than 200℃ and 2 min single wire
Solderability :
Solder shall adhere to the conductor uniformly
Application :
All types of high-frequency coil equipment
Adherence :
No crack on the film
Specification :
0.1x9 0.1x15
Pinhole :
Twisted wire of the pinhole of twisted line number to calculate
Description

Polyurethane Enamelled Copper Twisted WireUEF1/U@155℃ Type 2

3.Test methods:

3.1 Appearance : Comply with JlSC 3216.

3.2 Dimension :Comply with JISC 3216-2

3.3Pinhole : Comply with JSC 3216-5(length of sample is 6 meters).

3.4 Flexibility : Single wire comply with JSC 3216-3.

3.5.Adherence: Single wire comply with JSC 3216-3.

3.6 Resistance to abrasion : Single wire comply with JISC 3216-3.

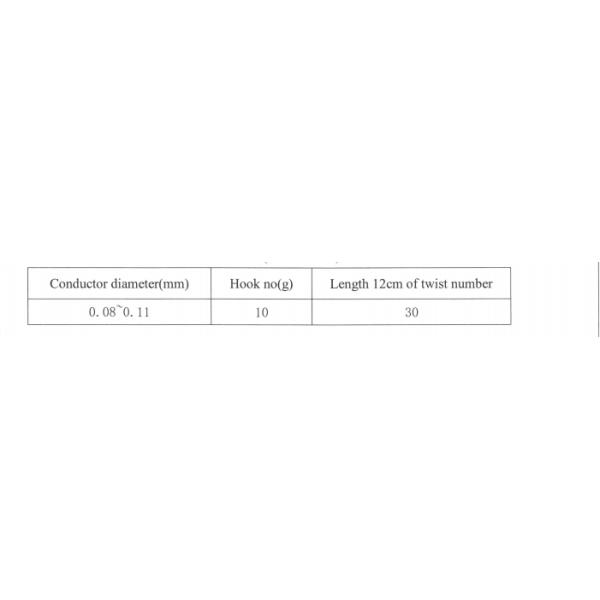

3.7 Dielectric breakdown voltage : Comply with JlSC 3216-5. Next table of hook no and twistednumer (twisted wire).

0.1x9 0.1x15 Twisted Litz Wire Type 2 Polyurethane Enamelled Copper Wire

0.1x9 0.1x15 Twisted Litz Wire Type 2 Polyurethane Enamelled Copper Wire
