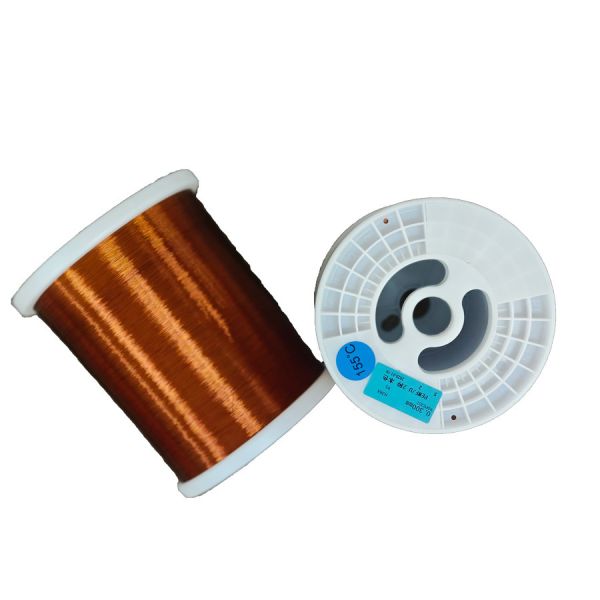

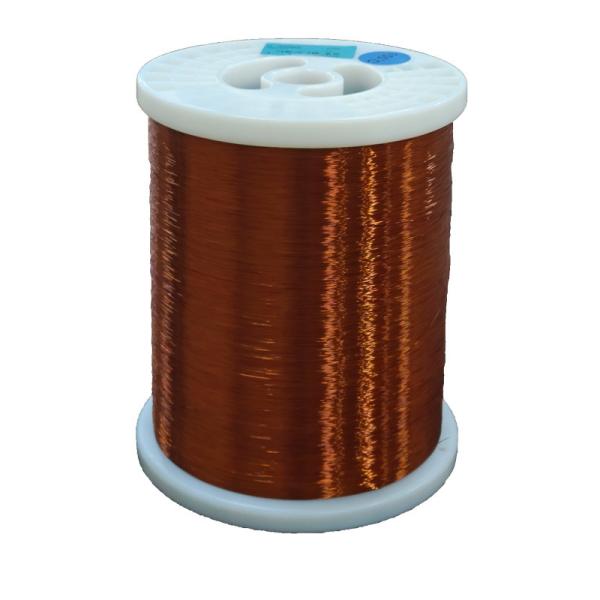

Round Copper Magnet Wire Enamel Coated FIW Grade Three Zero Defect
Round Copper Magnet Wire Enamel Coated FIW Grade Three Zero Defect
Round Copper Magnet Wire Enamel Coated FIW Grade Three Zero Defect
Round Copper Magnet Wire Enamel Coated FIW Grade Three Zero Defect
Specifications
Brand Name :
PEWSC
Model Number :
FIW Grade three
Certification :
UL,ROHS
Place of Origin :
China
MOQ :
The MOQ varies according to the size of the specification
Price :
Copper price plus processing fee plus freight
Payment Terms :
T/T 100% payment before shipment
Supply Ability :
Delivery 10-15 days after next order
Delivery Time :
3-5 work days
Packaging Details :
Box
Product Name :
FIW Grade three
Conductor Diameter :
0.071mm-0.710mm
Conductor Material :
Copper
Temperature Grade :
180℃
Rating Resistance :
2800V The voltage resistance varies according to the thickness of the film and the size of the specification
Standard :
GB、IEC
Hierarchy Thickness :
Grade three
Insulation :
Enamel
Shape :
Round
Colors Option :
Could be customized
Application :
Replace the traditional TIW
Description

Fully Insulated FIW Grade three Zero-defect Enamelled Round Copper Wire Replace the Traditional TIW

Ultra-fine conductor: FIW enamelled wire is made of extremely fine pure copper conductor, which not only ensures excellent conductivity, but also provides excellent clarity of signal transmission, suitable for high-precision electronic devices.

Thin Coating Layer: The wire has a very thin insulating coating, which helps to reduce the overall wire diameter, making the wire softer while maintaining the necessary insulating properties for high-density wiring applications.

High Heat Resistance: FIW enamelled wire is designed to withstand high temperature environments, making it suitable for use in power amplifiers, high frequency transformers, and precision sensors.

Excellent Physical Strength: Despite the extremely fine conductors, enamelled wires have good physical strength and toughness, resisting breakage and abrasion to ensure long-term stable operation.

Low Loss: In high frequency applications, FIW enamelled wires exhibit low loss characteristics that have little or no effect on signal transmission, ensuring high quality communications.

Environmentally friendly materials: RoHS compliant and manufactured with environmentally friendly materials, they are both safe and have a low environmental impact.

Versatile applications: From miniature sensors to precision medical devices, FIW enamelled wires are used in a wide range of precision electronic devices due to their unique characteristics.

FIW enamelled wire represents an advancement in miniaturisation in wire and cable technology, with its ultra-fine conductors and thin insulation providing unparalleled benefits for precision circuits. Whether challenged by space constraints or high performance requirements, FIW enamelled wire offers reliable solutions for the most demanding applications.

Round Copper Magnet Wire Enamel Coated FIW Grade Three Zero DefectRound Copper Magnet Wire Enamel Coated FIW Grade Three Zero Defect

GB ---Grade3 Unit﹕mm
Diameter of
Conduct		 Conductor
Tolerance		 Conductor Control
Benchmarks		 OD Control
Benchmarks		 Specification Boundaries Conductor
Resistance 20℃
(Ω/KM)		 Min Elongation
(%)		 Max.
Springiness
(°)		 Insulation breakdown voltage
(v)
Lower
Limit		 Upper
Limit		 Lower
Limit		 Upper
Limit		 Min. Increase
in Diameter		 Max. Finished
overall Diameter
0.071 ±0.003 0.070 0.072 0.09 0.095 0.018 0.097 4747 13 -- 1100
0.080 ±0.003 0.079 0.081 0.101 0.107 0.020 0.108 3703 14 100 1200
0.090 ±0.003 0.089 0.091 0.113 0.119 0.022 0.120 2900 15 94 1300
0.100 ±0.003 0.099 0.101 0.124 0.131 0.023 0.132 2333 16 90 1400
0.112 ±0.003 0.111 0.114 0.139 0.146 0.026 0.147 1848 17 88 3900
0.125 ±0.003 0.124 0.127 0.154 0.161 0.028 0.163 1475 17 84 4100
0.140 ±0.003 0.139 0.142 0.171 0.178 0.030 0.181 1170 18 79 4200
0.160 ±0.003 0.159 0.162 0.194 0.201 0.033 0.205 890.6 19 78 4400
0.180 ±0.003 0.179 0.182 0.218 0.225 0.036 0.229 700.7 20 75 4700
0.200 ±0.003 0.199 0.202 0.241 0.249 0.039 0.252 565.7 21 72 5100
0.224 ±0.003 0.223 0.226 0.269 0.277 0.043 0.280 449.5 21 68 5200
0.250 ±0.004 0.249 0.253 0.301 0.309 0.048 0.312 362.8 22 65 5500
0.280 ±0.004 0.279 0.283 0.333 0.341 0.050 0.345 288.2 22 61 5800
0.315 ±0.004 0.314 0.317 0.371 0.38 0.053 0.384 227.0 23 62 6100
0.355 ±0.004 0.354 0.357 0.415 0.423 0.057 0.428 178.2 23 59 6400
0.400 ±0.005 0.398 0.403 0.464 0.474 0.060 0.478 140.7 24 55 6600
0.450 ±0.005 0.448 0.453 0.518 0.528 0.064 0.533 110.9 25 53 6800
0.500 ±0.005 0.498 0.503 0.571 0.581 0.067 0.587 89.59 25 51 7000
0.560 ±0.006 0.557 0.563 0.635 0.645 0.071 0.653 71.53 26 48 7100
0.630 ±0.006 0.627 0.633 0.709 0.721 0.075 0.728 56.38 27 53 7100
0.710 ±0.007 0.707 0.714 0.795 0.807 0.080 0.814 44.42 28 50 7200
0.800 ±0.008 0.797 0.804 0.89 0.902 0.085 0.911 35.00 28 46 7400
0.900 ±0.009 0.897 0.904 0.995 1.007 0.090 1.018 27.65 29 51 7600
1.000 ±0.010 0.997 1.004 1.1 1.114 0.095 1.124 22.40 30 47 7600
1.120 ±0.011 1.116 1.124 1.223 1.237 0.098 1.248 17.85 30 34 7600
1.250 ±0.013 1.246 1.254 1.355 1.369 0.100 1.381 14.35 31 39 7600
1.400 ±0.014 1.396 1.406 1.509 1.523 0.103 1.535 11.43 32 36 7600
1.600 ±0.016 1.596 1.606 1.714 1.73 0.107 1.740 8.75 32 32 7600
1.800 ±0.018 1.796 1.806 1.917 1.933 0.110 1.944 6.91 32 7600
2.000 ±0.020 1.994 2.006 2.12 2.136 0.113 2.148 5.60 33 7600
2.240 ±0.022 2.234 2.246 2.363 2.381 0.116 2.392 4.46 33 7600
2.500 ±0.025 2.494 2.506 2.626 2.644 0.119 2.656 3.58 33 7600
2.800 ±0.028 2.794 2.808 2.932 2.95 0.123 2.961 2.86 34 3800
3.150 ±0.032 3.144 3.158 3.286 3.306 0.127 3.316 2.26 34 3800
