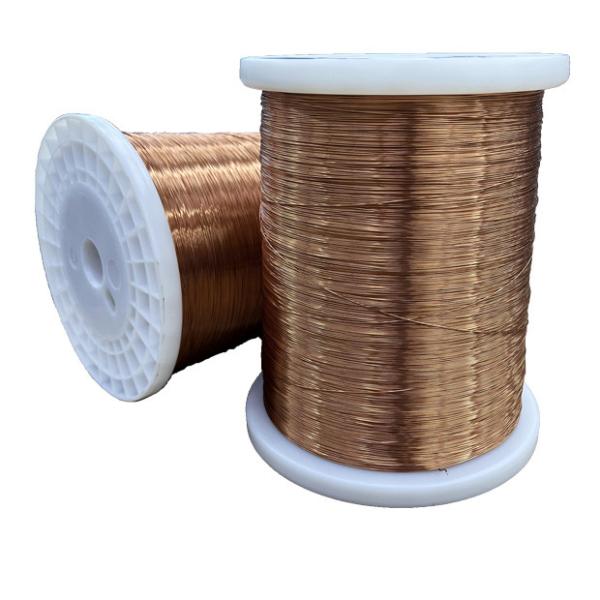

Type 1 Litz Wire Types Polyurethane Enamelled Copper Twisted Wire 0.12x20
Type 1 Litz Wire Types Polyurethane Enamelled Copper Twisted Wire 0.12x20
Type 1 Litz Wire Types Polyurethane Enamelled Copper Twisted Wire 0.12x20
Type 1 Litz Wire Types Polyurethane Enamelled Copper Twisted Wire 0.12x20
Specifications
Brand Name :
PEWSC
Model Number :
UEFN/U 155℃ Type 1
Certification :
ROHS
Place of Origin :
China
MOQ :
The MOQ varies according to the size of the specification
Price :
Copper price plus processing fee plus freight
Payment Terms :
T/T 100% payment before shipment
Supply Ability :
Delivery 10-15 days after next order
Delivery Time :
3-5 work days
Packaging Details :
Box
Product Name :
UEFN/U 155℃ Type 1
Conductor Material :
Copper
Appearance :
The wire surface smooth & tincture same
Twisted pitch :
Calculate the twist pitch.
Twist direction :
In normal conditions of twisted direction is clockwise.
Resistance to cut though :
Not less than 200℃ and 2 min single wire
Flexibility & Adherence :
No visible cracks appear on the film coating when using 15 times magnifier. single wire
Solderability :
Solder shall adhere to the conductor uniformly
Samples :
Free
Dimension :
The size shall be as given in table single wire; Twisted wirediameter will be subject to the theoretical calculation.
Specification :
0.12x20
Pinhole :
Twisted wire of the pinhole of twisted line number to calculate
Original Country :
China
Description

Polyurethane Enamelled Copper Twisted Wire UEFN/U 155℃ Type 1 Size 0.12x20

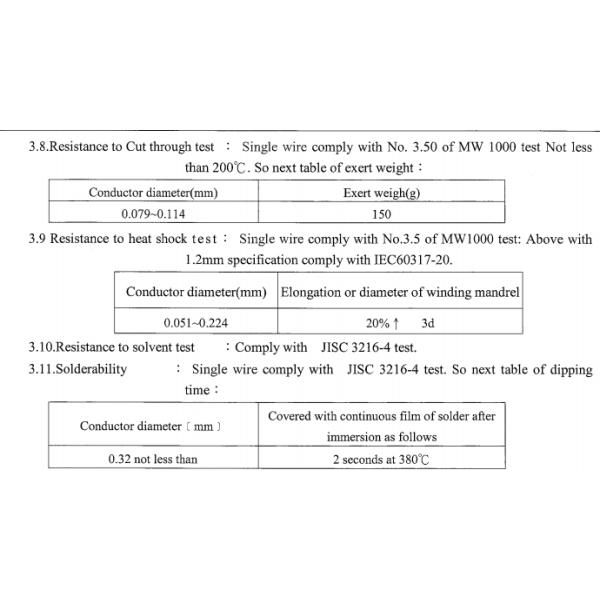

3.Test methods

3.1 Appearance : Comply with JISC 3216.

3.2 Dimension :Comply with JISC 3216-2

3.3Pinhole : Comply with JSC 3216-5(length of sample is 6 meters).

3.4 Flexibility :Single wire comply with JSC 3216-3.3.5.Adherence: Single wire comply with JSC 3216-3.

3.6 Resistance to abrasion : Single wire comply with JSC 3216-3.

3.7 Dielectric breakdown voltage : Comply with JSC 3216-5. Next table of hook no and twisted numer twisted wire.

Type 1 Litz Wire Types Polyurethane Enamelled Copper Twisted Wire 0.12x20

Type 1 Litz Wire Types Polyurethane Enamelled Copper Twisted Wire 0.12x20

Type 1 Litz Wire Types Polyurethane Enamelled Copper Twisted Wire 0.12x20

JIS---3種
Unit﹕mm
Diameter of
Conduct		 Conductor Control
Benchmarks		 OD Control
Benchmarks		 Specification
Boundaries		 Conductor
Resistance 20℃
(Ω/KM)		 Insulation breakdownvoltage
(v)		 Min Elongation
(%)		 Max.
Springiness
(°)		 Resistance to
abrasion
Lower
Limit		 Upper
Limit		 Lower
Limit		 Median Upper
Limit		 Min. Increase
in Diameter		 Max. Finished
overall Diameter		 JIS AWG Average Minimum
0.04±0.002 0.039 0.041 0.045 0.047 0.050 0.004 0.052 15670 100 7 11 -- -- --
0.05±0.003 0.049 0.051 0.057 0.060 0.062 0.006 0.064 10240 700 10 14 -- -- --
0.06±0.003 0.059 0.061 0.067 0.070 0.072 0.006 0.075 6966 700 10 15 -- -- --
0.07±0.003 0.069 0.071 0.077 0.080 0.082 0.006 0.085 4990 700 10 17 -- -- --
0.08±0.003 0.079 0.081 0.087 0.091 0.094 0.006 0.097 3778 700 10 17 -- -- --
0.09±0.003 0.089 0.091 0.097 0.101 0.104 0.006 0.107 2959 700 10 18 -- -- --
0.10±0.003 0.099 0.101 0.107 0.110 0.114 0.006 0.118 2381 700 15 19 -- -- --
0.11±0.003 0.109 0.111 0.117 0.121 0.124 0.006 0.128 1957 700 15 19 -- -- --
0.12±0.003 0.119 0.121 0.129 0.132 0.135 0.008 0.139 1636 850 15 20 -- -- --
0.13±0.003 0.129 0.131 0.137 0.142 0.145 0.008 0.149 1389 850 15 20 -- -- --
0.14±0.003 0.139 0.141 0.149 0.152 0.155 0.008 0.159 1193 850 15 21 -- -- --
0.15±0.003 0.149 0.151 0.159 0.162 0.165 0.008 0.169 1037 850 15 21 -- -- --
0.16±0.003 0.159 0.161 0.171 0.174 0.177 0.010 0.181 908.8 850 15 22 -- -- --
0.17±0.003 0.169 0.171 0.181 0.184 0.187 0.010 0.191 803.2 850 15 23 -- -- --
0.18±0.003 0.179 0.181 0.191 0.194 0.197 0.010 0.202 715.0 1000 15 23 -- -- --
0.19±0.003 0.189 0.191 0.201 0.204 0.208 0.010 0.212 640.6 1000 15 23 -- -- --
0.20±0.003 0.198 0.201 0.211 0.214 0.218 0.010 0.222 577.2 1000 15 24 -- -- --
0.21±0.003 0.208 0.212 0.221 0.224 0.228 0.010 0.232 522.8 1000 15 24 -- -- --
0.22±0.004 0.218 0.222 0.231 0.235 0.239 0.010 0.243 480.1 1000 15 24 -- -- --
0.23±0.004 0.228 0.232 0.243 0.246 0.249 0.012 0.255 438.6 1000 15 24 -- -- --
0.24±0.004 0.238 0.242 0.253 0.256 0.259 0.012 0.265 402.2 1000 15 24 -- -- --
0.25±0.004 0.248 0.252 0.263 0.266 0.269 0.012 0.275 370.2 1000 15 25 66 -- --
0.26±0.004 0.258 0.262 0.273 0.276 0.279 0.012 0.285 341.8 1000 15 25 66 163 133
0.27±0.004 0.268 0.272 0.283 0.286 0.289 0.012 0.295 316.6 1000 15 26 61 163 133
0.28±0.004 0.278 0.282 0.293 0.296 0.299 0.012 0.305 294.4 1000 15 26 61 163 133
0.29±0.004 0.288 0.292 0.303 0.306 0.309 0.012 0.315 273.9 1000 20 26 61 163 133
0.30±0.005 0.298 0.302 0.315 0.319 0.323 0.014 0.327 254.0 1400 20 26 61 194 163
0.32±0.005 0.317 0.322 0.335 0.339 0.343 0.014 0.347 222.8 1400 20 26 55 194 163
0.35±0.005 0.347 0.352 0.365 0.369 0.373 0.014 0.377 185.7 1400 20 27 50 194 163
0.37±0.005 0.367 0.372 0.385 0.389 0.393 0.014 0.397 165.9 1400 20 27 50 194 163
0.40±0.005 0.397 0.402 0.415 0.419 0.425 0.014 0.429 141.7 1400 20 27 76 204 163
0.45±0.006 0.446 0.452 0.465 0.469 0.475 0.014 0.479 112.1 1400 20 28 72 204 173
0.50±0.006 0.496 0.502 0.517 0.522 0.527 0.016 0.531 89.95 1450 20 28 67 235 204
0.55±0.006 0.546 0.552 0.567 0.572 0.577 0.016 0.581 74.18 1450 20 29 62 245 204
0.60±0.008 0.596 0.602 0.617 0.623 0.628 0.016 0.632 62.64 1450 20 29 62 245 204
