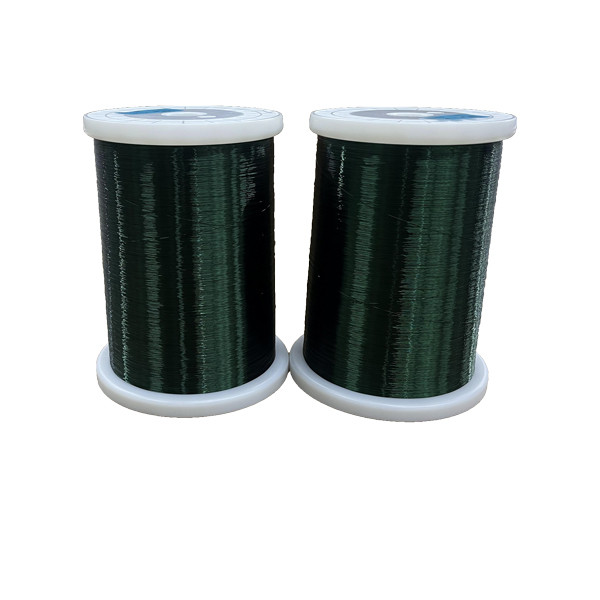

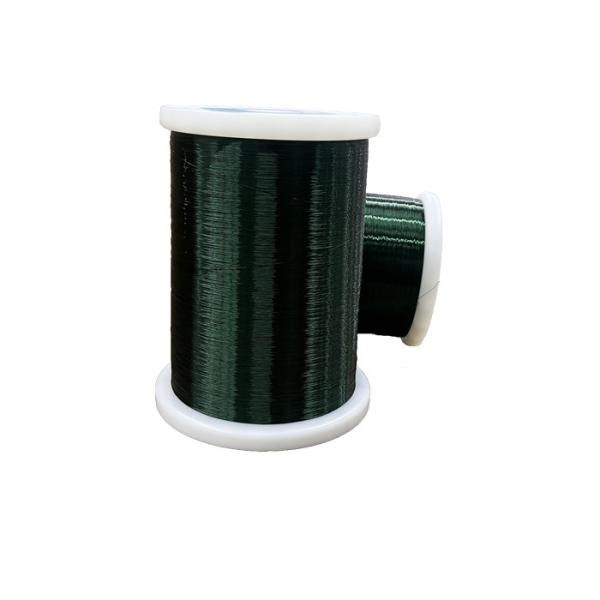

18 AWG Single Enameled Round Copper Wire with Enhanced Heat Resistance
18 AWG Single Enameled Round Copper Wire with Enhanced Heat Resistance
18 AWG Single Enameled Round Copper Wire with Enhanced Heat Resistance
18 AWG Single Enameled Round Copper Wire with Enhanced Heat Resistance
Specifications
Brand Name :
PEWSC
Model Number :
PEWN
Place of Origin :
China
Certification :
UL,ROHS
MOQ :
The MOQ varies according to the size of the specification
Price :
Copper price plus processing fee plus freight
Payment Terms :
T/T 100% payment before shipment
Supply Ability :
Delivery 10-15 days after next order
Delivery Time :
3-5 work days
Packaging Details :
Box
Insulation Thickness :
0.0035 Inch
Enamel Thickness :
Single
Warranty :
3 Years
Shape :
Round
Thermal Grade :
180℃
Sample :
Free
Wire Gauge :
18 AWG
Application :
Motor Winding, Transformer Winding
Description

Product Description:

Our Enamel Magnet Wire is a 18 AWG wire that meets the JIS standard. It has a conductor diameter range of 0.071mm-0.710mm, making it suitable for a variety of applications.

The Enamel Magnet Wire features a single enamel thickness, ensuring a consistent and reliable performance. Plus, it is certified by UL and RoHS, so you can trust the safety and quality of this product.

Whether you're working on a small hobby project or a large industrial application, the Enamel Magnet Wire is a reliable choice. Don't settle for anything less than the best - choose our Enamel Magnet Wire for your next project.

Features:

  • Product Name: Enamel Magnet Wire
  • Standard: JIS
  • Enamel Thickness: Single
  • Color: Red
  • Sample: Free
  • Warranty: 3 Years

This Enamel Magnet Wire is also known as Copper Enameled Wire or Enamelled Copper Winding Wire. It can be used with a Copper Wire Enamelling Machine for various applications.

Technical Parameters:

Product Attribute Value
Certifications UL, RoHS
Conductor Diameter 0.071mm-0.710mm
Standard JIS
Thermal Grade 180℃
Application Motor Winding, Transformer Winding
Wire Gauge 18 AWG
Sample Free
Enamel Thickness Single
Warranty 3 Years
Color Red

This Copper Enameled Wire, also known as Enamelled Round Copper Wire, is suitable for use in Motor Winding and Transformer Winding applications. It has a thermal grade of 180℃ and is compliant with UL and RoHS certifications. The wire gauge is 18 AWG, with a conductor diameter of 0.071mm-0.710mm and a single enamel thickness. This product comes with a 3-year warranty and a free sample can be provided. Enamelling of copper wire is done using Copper Wire Enamelling Machine.

18 AWG Single Enameled Round Copper Wire with Enhanced Heat Resistance18 AWG Single Enameled Round Copper Wire with Enhanced Heat Resistance

NEMA---Single Unit﹕mm
AWG Diameter of
Conduct		 Conductor Control
Benchmarks		 OD Control
Benchmarks		 Specification Boundaries Conductor
Resistance 20℃
(Ω/KM)		 Insulation breakdownvoltage
(v)		 Min Elongation
(%)		 Max.
Springiness
(°)		 Resistance to
abrasion
Lower
Limit		 Upper
Limit		 Lower
Limit		 Median Upper
Limit		 Min. Increase
in Diameter		 Max. Finished
overall Diameter		 Average Minimum
44 0.051 +0.002 0.050 0.052 0.056 0.059 0.060 0.005 0.061 9527.95 500 14 -- -- --
-0.003
43 0.056 +0.002 0.055 0.057 0.063 ------- 0.066 0.005 0.069 7815.03 550 15 -- -- --
-0.003
42 0.064 +0.002 0.063 0.065 0.071 0.073 0.075 0.005 0.076 5899.60 625 16 -- -- --
-0.003
41 0.071 +0.003 0.070 0.072 0.079 0.081 0.083 0.008 0.084 4610.88 700 17 -- -- --
-0.002
40 0.079 +0.002 0.078 0.080 0.087 0.090 0.093 0.008 0.094 3800.62 775 17 -- -- --
-0.003
39 0.089 +0.002 0.088 0.090 0.099 0.102 0.105 0.008 0.107 2968.15 850 18 -- -- --
-0.003
38 0.102 +0.002 0.101 0.103 0.111 0.114 0.117 0.008 0.118 2239.81 950 19 -- -- --
-0.003
37 0.114 +0.003 0.113 0.115 0.125 0.128 0.131 0.010 0.132 1750.03 1075 20 -- -- --
-0.002
36 0.127 +0.003 0.126 0.128 0.139 0.142 0.145 0.010 0.147 1427.71 1200 20 -- -- --
-0.003
35 0.142 +0.003 0.141 0.143 0.154 0.157 0.160 0.010 0.165 1120.02 1325 21 -- -- --
-0.002
34 0.16 +0.003 0.159 0.161 0.175 0.178 0.181 0.013 0.183 890.60 1500 22 -- -- --
-0.003
33 0.18 +0.003 0.179 0.181 0.195 0.199 0.203 0.013 0.206 692.85 1675 23 -- -- --
-0.002
32 0.203 +0.003 0.202 0.205 0.220 0.224 0.228 0.015 0.229 543.36 1850 24 -- -- --
-0.002
31 0.226 +0.003 0.225 0.228 0.243 0.247 0.251 0.015 0.254 437.51 2075 24 -- -- --
-0.002
30 0.254 +0.002 0.252 0.256 0.274 0.278 0.282 0.018 0.284 348.45 2300 25 66 295 250
-0.003
29 0.287 +0.003 0.285 0.289 0.308 0.312 0.316 0.018 0.320 272.17 2375 26 61 310 265
-0.003
28 0.32 +0.003 0.318 0.322 0.343 0.347 0.351 0.020 0.356 217.08 2425 26 55 335 285
-0.002
27 0.361 +0.002 0.358 0.363 0.383 0.387 0.391 0.020 0.396 171.28 2500 27 50 355 300
-0.003
26 0.404 +0.002 0.401 0.406 0.429 0.433 0.437 0.023 0.439 137.89 2550 27 76 380 325
-0.005
25 0.455 +0.002 0.452 0.457 0.480 0.485 0.490 0.023 0.493 108.41 2625 28 72 400 340
-0.005
24 0.511 +0.002 0.507 0.513 0.538 0.543 0.548 0.025 0.551 86.08 2700 28 67 430 365
-0.006
23 0.574 +0.003 0.570 0.576 0.601 0.606 0.611 0.025 0.617 67.8 2775 29 62 460 390
-0.005
22 0.643 +0.002 0.639 0.645 0.673 0.678 0.683 0.028 0.686 54.44 2850 29 58 490 415
-0.008
21 0.724 +0.002 0.720 0.726 0.754 0.760 0.766 0.028 0.770 42.82 2925 30 53 525 445
-0.008
20 0.813 +0.005 0.808 0.816 0.846 0.852 0.858 0.030 0.864 33.88 3000 30 66 560 475
-0.008
19 0.912 +0.005 0.907 0.915 0.945 0.951 0.957 0.030 0.963 26.98 3075 31 62 600 510
-0.01
18 1.024 +0.005 1.019 1.027 1.060 1.066 1.072 0.033 1.077 21.39 3175 32 58 645 550
-0.011
17 1.151 +0.005 1.145 1.154 1.190 1.196 1.202 0.036 1.207 16.95 3250 32 54 690 585
-0.013
16 1.29 +0.008 1.284 1.293 1.330 1.336 1.342 0.036 1.349 13.44 3325 33 50 735 625
-0.012
15 1.45 +0.008 1.444 1.453 1.492 1.498 1.505 0.038 1.509 10.66 3425 33 46 780 665
-0.015
14 1.628 +0.008 1.621 1.631 1.673 1.680 1.687 0.041 1.692 8.44 3525 33 42 840 715
-0.015
The above single wear resistance value is applicable to MW-5C 35C 30C 81C 80C 24C 28C 76C , voltage resistance is applicable to MW-5C 35C 30C 81C 79C 75C 77C 26C .
