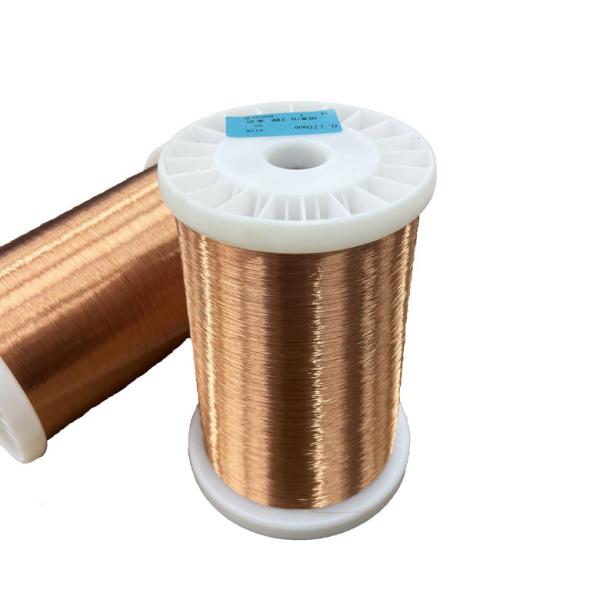

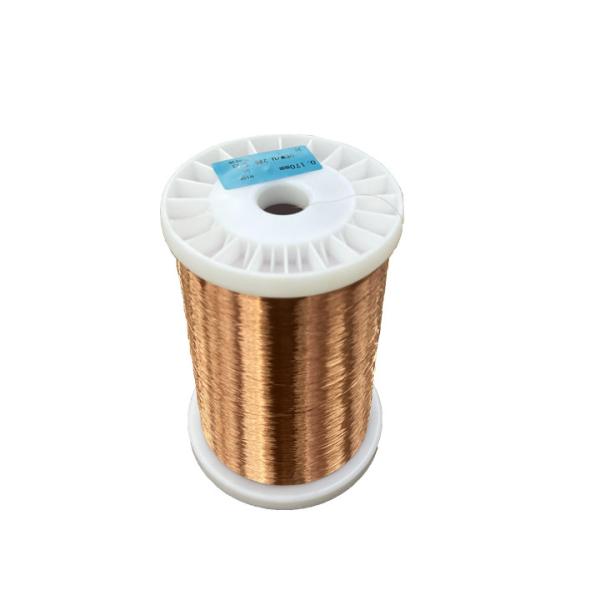

Class Three Enamel Thickness Insulated Copper Winding Wire for Smooth Electrical Operation
Class Three Enamel Thickness Insulated Copper Winding Wire for Smooth Electrical Operation
Class Three Enamel Thickness Insulated Copper Winding Wire for Smooth Electrical Operation
Class Three Enamel Thickness Insulated Copper Winding Wire for Smooth Electrical Operation
Specifications
Brand Name :
PEWSC
Model Number :
UEW/U2
Place of Origin :
China
Certification :
UL
MOQ :
300KG
Price :
It depends on order
Packaging Details :
Carton
Delivery Time :
3-5 work days
Payment Terms :
cash on payments
Supply Ability :
Delivery 10-15 Days after Next Order
Insulation Material :
Enamel
Origin Country :
China
Material :
Copper
Warranty :
3 Years
Insulation Class :
Class130
Wire Diameter :
0.10mm-3.35mm
Enamel Thickness :
Class Three
Voltage Rating :
Up To 2800V
Description

Product Description:

The Enameled Copper Winding Wire is a high-quality product designed for various industrial and commercial applications. Made with premium materials, this wire is a reliable solution for your electrical needs.

One of the key features of this product is its insulation material. The Enameled Copper Winding Wire is coated with enamel, which provides excellent insulation properties. This ensures safe and efficient operation, making it suitable for a wide range of applications.

With a warranty of 3 years, you can trust in the durability and longevity of this product. The manufacturer stands behind the quality of the Enameled Copper Winding Wire, giving you peace of mind when using it in your projects.

The voltage rating of this wire is up to 2800V, making it ideal for high-voltage applications. Whether you need to transmit power over long distances or operate high-power equipment, the Enameled Copper Winding Wire can handle the task with ease.

Class130 insulation class further enhances the safety and performance of this wire. This classification signifies that the wire can withstand higher temperatures and harsh operating conditions, ensuring reliable operation in demanding environments.

Manufactured from high-grade copper, the Enameled Copper Winding Wire offers superior conductivity and corrosion resistance. Copper is known for its excellent electrical properties, making it the ideal material for applications that require efficient power transmission.

Whether you need to wind coils for transformers, motors, or other electrical devices, the Enameled Copper Winding Wire is the perfect choice. Its versatility and reliability make it a popular option for professionals in the industry.

In summary, the Enameled Copper Winding Wire is a top-quality product that offers exceptional performance and reliability. With its enamel insulation, 3-year warranty, high voltage rating, Class130 insulation class, and copper material, this wire is perfect for a wide range of applications. Trust in the Polyurethane Copper Coil, Enameled Copper Conductors, and Enamelled Copper Magnet Wire to deliver outstanding results for your electrical projects.

Features:

  • Product Name: Enameled Copper Winding Wire
  • Warranty: 3 Years
  • Insulation Class: Class130
  • Enamel Thickness: Class Three
  • Origin Country: China
  • Wire Diameter: 0.10mm-3.35mm

Applications:

PEWSC's Enameled Copper Winding Wire, also known as Insulated Copper Winding Wire, is a high-quality product suitable for a wide range of applications and scenarios. With the model number UEW/U2, this wire originates from China and comes with UL certification, ensuring its reliability and safety.

The Enameled Copper Winding Wire is ideal for use in various industries and projects. Its versatility makes it a popular choice for applications such as transformers, motors, generators, and other electrical equipment that require Enamelled Copper Magnet Wire. The wire's insulation class of Class130 and enamel insulation material ensure optimal performance and durability, suitable for demanding environments.

Whether you are working on a small-scale project or a large industrial application, the Enameled Copper Winding Wire from PEWSC is available for orders starting at a minimum quantity of 300KG. The pricing is flexible, depending on the order specifications, making it a cost-effective solution for your needs. The packaging details involve cartons, guaranteeing the safe delivery of the product to your location.

When it comes to delivery, PEWSC ensures a quick turnaround time of 3-5 work days, allowing you to proceed with your project promptly. Payment terms are convenient with cash on payments, simplifying the transaction process. The supply ability is reliable, with delivery scheduled 10-15 days after the next order placement.

The Enameled Copper Winding Wire has an enamel thickness of Class Three and a voltage rating of up to 2800V, meeting industry standards for performance and safety. Additionally, PEWSC offers a generous warranty period of 3 years, giving you peace of mind regarding the product's quality and longevity.

Customization:

Product Customization Services:

Brand Name: PEWSC

Model Number: UEW/U2

Place of Origin: China

Certification: UL

Minimum Order Quantity: 300KG

Price: It depends on order

Packaging Details: Carton

Delivery Time: 3-5 work days

Payment Terms: cash on payments

Supply Ability: Delivery 10-15 Days after Next Order

Warranty: 3 Years

Origin Country: China

Wire Diameter: 0.10mm-3.35mm

Insulation Material: Enamel

Insulation Class: Class130

FAQ:

Q: What is the brand name of the enameled copper winding wire?

A: The brand name is PEWSC.

Q: What is the model number of the enameled copper winding wire?

A: The model number is UEW/U2.

Q: Where is the enameled copper winding wire manufactured?

A: The product originates from China.

Q: What is the certification of the enameled copper winding wire?

A: The product is certified by UL.

Q: What is the minimum order quantity for the enameled copper winding wire?

A: The minimum order quantity is 300KG.

Class Three Enamel Thickness Insulated Copper Winding Wire for Smooth Electrical OperationClass Three Enamel Thickness Insulated Copper Winding Wire for Smooth Electrical Operation

JIS---2種 Unit﹕mm

Diameter of Conduct		 Conductor Control
Benchmarks		 OD Control Benchmarks Specification Boundaries Conductor
Resistance 20℃
(Ω/KM)		 Insulation breakdownvoltage
(v)		 Min Elongation
(%)		 Max.
Springiness
(°)		 Resistance to abrasion
Lower
Limit		 Upper
Limit		 Lower
Limit		 Median Upper
Limit		 Min. Increase in Diameter
(mm)		 Max. Finished overall Diameter
(mm)		 JIS AWG Average Minimum
0.04±0.002 0.039 0.041 0.047 0.050 0.053 0.006 0.056 15670 200 7 11 -- -- --
0.05±0.003 0.049 0.051 0.059 0.062 0.065 0.008 0.069 10240 950 10 14 -- -- --
0.06±0.003 0.059 0.061 0.069 0.072 0.075 0.008 0.081 6966 950 10 15 -- -- --
0.07±0.003 0.069 0.071 0.079 0.082 0.085 0.008 0.091 4990 950 10 17 -- -- --
0.08±0.003 0.079 0.081 0.091 0.095 0.099 0.010 0.103 3778 1100 10 17 -- -- --
0.09±0.003 0.089 0.091 0.102 0.106 0.110 0.010 0.113 2959 1100 10 18 -- -- --
0.10±0.003 0.099 0.101 0.112 0.116 0.120 0.010 0.125 2381 1100 15 19 -- -- --
0.11±0.003 0.109 0.111 0.122 0.126 0.130 0.010 0.135 1957 1100 15 19 -- -- --
0.12±0.003 0.119 0.121 0.134 0.138 0.142 0.012 0.147 1636 1300 15 20 -- -- --
0.13±0.003 0.129 0.131 0.144 0.148 0.152 0.012 0.157 1389 1300 15 20 -- -- --
0.14±0.003 0.139 0.141 0.154 0.158 0.162 0.012 0.167 1193 1300 15 21 -- -- --
0.15±0.003 0.149 0.151 0.164 0.168 0.172 0.012 0.177 1037 1300 15 21 -- -- --
0.16±0.003 0.159 0.161 0.176 0.180 0.184 0.014 0.189 908.8 1300 15 22 -- -- --
0.17±0.003 0.169 0.171 0.186 0.190 0.194 0.014 0.199 803.2 1300 15 23 -- -- --
0.18±0.003 0.179 0.181 0.198 0.202 0.206 0.016 0.211 715.0 1600 15 23 -- -- --
0.19±0.003 0.189 0.191 0.208 0.212 0.216 0.016 0.221 640.6 1600 15 23 -- -- --
0.20±0.003 0.198 0.201 0.218 0.222 0.226 0.016 0.231 577.2 1600 15 24 -- -- --
0.21±0.003 0.208 0.212 0.228 0.232 0.236 0.016 0.241 522.8 1600 15 24 -- -- --
0.22±0.004 0.218 0.222 0.238 0.242 0.246 0.016 0.252 480.1 1600 15 24 -- -- --
0.23±0.004 0.228 0.232 0.250 0.254 0.258 0.018 0.264 438.6 1600 15 24 -- -- --
0.24±0.004 0.238 0.242 0.260 0.264 0.268 0.018 0.274 402.2 1600 15 24 -- -- --
0.25±0.004 0.248 0.252 0.270 0.274 0.278 0.018 0.284 370.2 1600 15 25 66 -- --
0.26±0.004 0.258 0.262 0.280 0.284 0.288 0.018 0.294 341.8 1600 15 25 66 243 204
0.27±0.004 0.268 0.272 0.290 0.294 0.298 0.018 0.304 316.6 1600 15 26 61 243 204
0.28±0.004 0.278 0.282 0.300 0.304 0.308 0.018 0.314 294.1 1600 15 26 61 243 204
0.29±0.004 0.288 0.292 0.310 0.315 0.320 0.018 0.324 273.9 1600 20 26 61 243 204
0.30±0.005 0.298 0.302 0.322 0.327 0.332 0.020 0.337 254.0 2000 20 26 61 265 235
0.32±0.005 0.317 0.322 0.342 0.347 0.352 0.020 0.357 222.8 2000 20 26 55 275 235
0.35±0.005 0.347 0.352 0.372 0.377 0.382 0.020 0.387 185.7 2000 20 27 50 275 235
0.37±0.005 0.367 0.372 0.392 0.397 0.402 0.020 0.407 165.9 2000 20 27 50 275 235
0.40±0.005 0.397 0.402 0.424 0.429 0.434 0.022 0.439 141.7 2000 20 27 76 306 265
0.45±0.006 0.446 0.452 0.474 0.479 0.484 0.022 0.490 112.1 2000 20 28 72 316 265
0.50±0.006 0.496 0.502 0.526 0.531 0.536 0.024 0.542 89.95 2150 20 28 67 357 296
0.55±0.006 0.546 0.552 0.576 0.581 0.586 0.024 0.592 74.18 2150 20 29 62 357 296
0.60±0.008 0.596 0.602 0.626 0.632 0.638 0.024 0.644 62.64 2150 20 29 62 357 306
0.65±0.008 0.646 0.653 0.677 0.683 0.689 0.024 0.694 53.26 2150 20 29 58 367 306
0.70±0.008 0.696 0.703 0.729 0.735 0.741 0.026 0.746 45.84 2150 20 30 53 398 337
0.75±0.008 0.746 0.753 0.781 0.787 0.793 0.028 0.798 39.87 2400 20 30 53 439 367
0.80±0.010 0.796 0.803 0.834 0.840 0.846 0.030 0.852 35.17 2400 25 30 66 479 398
0.85±0.010 0.846 0.853 0.884 0.890 0.896 0.030 0.904 31.11 2400 25 30 66 479 398
0.90±0.010 0.896 0.903 0.936 0.942 0.948 0.032 0.956 27.71 2400 25 31 62 510 428
0.95±0.010 0.946 0.953 0.988 0.994 1.000 0.034 1.008 24.84 2400 25 31 62 551 459
1.00±0.012 0.996 1.003 1.038 1.045 1.052 0.034 1.062 22.49 2400 25 32 58 551 469
1.10±0.012 1.095 1.103 1.142 1.149 1.156 0.036 1.164 18.54 3050 25 32 54 551 469
1.20±0.012 1.195 1.203 1.242 1.249 1.258 0.036 1.264 15.55 3050 25 32 54 551 469
1.30±0.012 1.295 1.305 1.344 1.351 1.358 0.040 1.364 13.23 3400 25 33 50 622 520
1.40±0.012 1.395 1.405 1.444 1.451 1.458 0.040 1.464 11.39 3400 25 33 46 622 520
1.50±0.012 1.495 1.505 1.546 1.553 1.560 0.040 1.568 9.91 3400 25 33 46 622 520
1.60±0.012 1.595 1.605 1.646 1.653 1.660 0.040 1.668 8.71 3400 25 33 42 622 520
