High Performance Encapsulated Power Transformer TG-3015 Blue Color Anti Damp
High Performance Encapsulated Power Transformer TG-3015 Blue Color Anti Damp
High Performance Encapsulated Power Transformer TG-3015 Blue Color Anti Damp
High Performance Encapsulated Power Transformer TG-3015 Blue Color Anti Damp
High Performance Encapsulated Power Transformer TG-3015 Blue Color Anti Damp
High Performance Encapsulated Power Transformer TG-3015 Blue Color Anti Damp
Specifications
Brand Name :
TIGER
Model Number :
TG-2815
Certification :
ISO, CE,UL, RoHS
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
10000 PCS/Day
Delivery Time :
15-20 Working days
Packaging Details :
Carton: size 28*20*17cm Pallet : size 90*90*95cm (60 cartons)
Name :
Low frequency transformer
Quality :
100% test
Payment Term :
FOB
ODM, OEM :
Accepted
Weight :
75g
HS Code :
8504319000
Description

High Performance and Competitive Price Blue Color Encapsulated Transformer TG-3015 with UL Certificate

CE/VDE approved
. Potted under vacuum
. Dielectric strength- 4000Vrms
. Meet with UL94V-0 flammability requirements

Priamry: 115V 60HZ TO 230V 50HZ

Power- 0.5VA to 36VA

Dielectric strength- 4000Vrms

Coil structure: laminated, encapsulated

High ambient operation temporature(75 degree maximum)

Secondary: single or dual

Insulation class: Class B(130 degree)

Colors: brown, blue,yellow,biack,grey etc

Safety approval: CE,ROHS,CQC,ISO9001

Short circuit proof ,anti-damp,anti-corrosion,compact size

We also apply EP transformer with Secondary short circuit proof

Specifaction :

High Performance Encapsulated Power Transformer TG-3015 Blue Color Anti Damp

PART NO

Primary

[V]

Secondary

[V]

Current

[mA]

 Pin

No-Load Voltage

[V]

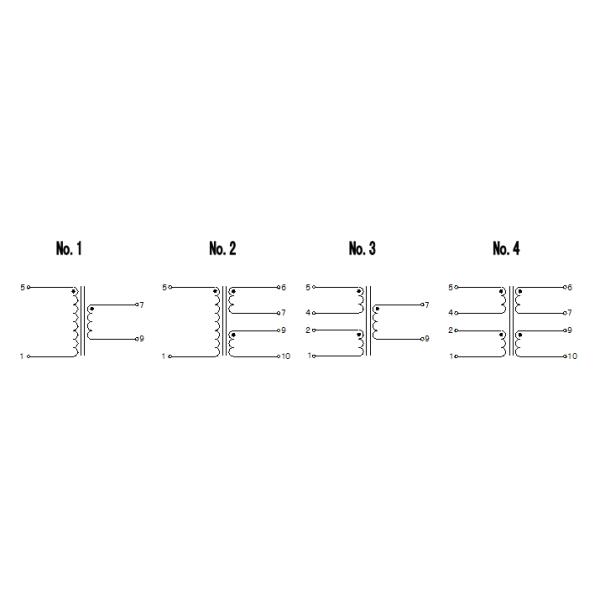

 Schematic No.
TG3015-E-0200-060-S 230v~ 6 333.3 1+5/7+9 8.8 1
TG3015-E-0200-090-S 230v~ 9 222.2 1+5/7+9 13.5 1
TG3015-E-0200-120-S 230v~ 12 166.6 1+5/7+9 18.0 1
TG3015-E-0200-150-S 230v~ 15 133.3 1+5/7+9 22.3 1
TG3015-E-0200-180-S 230v~ 18 111.1 1+5/7+9 26.8 1
TG3015-E-0200-240-S 230v~ 24 83.3 1+5/7+9 35.8 1
TG3015-E-0200-060-D 230v~ 2× 6 2×166.6 1+5/6+7-9+10 2×8.8 2
TG3015-E-0200-075-D 230v~ 2× 7.5 2×133.3 1+5/6+7-9+10 2×11.2 2
TG3015-E-0200-090-D 230v~ 2× 9 2×111.1 1+5/6+7-9+10 2×13.5 2
TG3015-E-0200-120-D 230v~ 2×12 2×83.3 1+5/6+7-9+10 2×18.0 2
TG3015-E-0200-150-D 230v~ 2×15 2×66.6 1+5/6+7-9+10 2×22.3 2
TG3015-E-0200-180-D 230v~ 2×18 2×55.5 1+5/6+7-9+10 2×26.8 2
TG3015-E-0200-240-D 230v~ 2×24 2×41.6 1+5/6+7-9+10 2×35.8 2
TG3015-U-0200-060-S 115v~ 6 333.3 1+5/7+9 8.8 1
TG3015-U-0200-090-S 115v~ 9 222.2 1+5/7+9 13.5 1
TG3015-U-0200-120-S 115v~ 12 166.6 1+5/7+9 18.0 1
TG3015-U-0200-150-S 115v~ 15 133.3 1+5/7+9 22.3 1
TG3015-U-0200-180-S 115v~ 18 111.1 1+5/7+9 26.8 1
TG3015-U-0200-240-S 115v~ 24 83.3 1+5/7+9 35.8 1
TG3015-U-0200-060-D 115v~ 2× 6 2×166.6 1+5/6+7-9+10 2×8.8 2
TG3015-U-0200-075-D 115v~ 2× 7.5 2×133.3 1+5/6+7-9+10 2×11.2 2
TG3015-U-0200-090-D 115v~ 2× 9 2×111.1 1+5/6+7-9+10 2×13.5 2
TG3015-U-0200-120-D 115v~ 2×12 2×83.3 1+5/6+7-9+10 2×18.0 2
TG3015-U-0200-150-D 115v~ 2×15 2×66.6 1+5/6+7-9+10 2×22.3 2
TG3015-U-0200-180-D 115v~ 2×18 2×55.5 1+5/6+7-9+10 2×26.8 2
TG3015-U-0200-240-D 115v~ 2×24 2×41.6 1+5/6+7-9+10 2×35.8 2
TG3015-U2-0200-060-S 2*115v~ 6 333.3 1+2-4+5/7+9 8.8 3
TG3015-U2-0200-090-S 2*115v~ 9 222.2 1+2-4+5/7+9 13.5 3
TG3015-U2-0200-120-S 2*115v~ 12 166.6 1+2-4+5/7+9 18.0 3
TG3015-U2-0200-150-S 2*115v~ 15 133.3 1+2-4+5/7+9 22.3 3
TG3015-U2-0200-180-S 2*115v~ 18 111.1 1+2-4+5/7+9 26.8 3
TG3015-U2-0200-240-S 2*115v~ 24 83.3 1+2-4+5/7+9 35.8 3
TG3015-U2-0200-060-D 2*115v~ 2× 6 2×166.6 1+2-4+5/6+7-9+10 2×8.8 4
TG3015-U2-0200-090-D 2*115v~ 2× 9 2×111.1 1+2-4+5/6+7-9+10 2×13.5 4
TG3015-U2-0200-120-D 2*115v~ 2×12 2×83.3 1+2-4+5/6+7-9+10 2×18.0 4
TG3015-U2-0200-150-D 2*115v~ 2×15 2×66.6 1+2-4+5/6+7-9+10 2×22.3 4
TG3015-U2-0200-180-D 2*115v~ 2×18 2×55.5 1+2-4+5/6+7-9+10 2×26.8 4
TG3015-U2-0200-240-D 2*115v~ 2×24 2×41.6 1+2-4+5/6+7-9+10 2×35.8

High Performance Encapsulated Power Transformer TG-3015 Blue Color Anti Damp

Application:
High Performance Encapsulated Power Transformer TG-3015 Blue Color Anti Damp
TIGER designs and manufactures a wide range of products for critical applications in various industries, including but not limited to:
· Automotive
· Consumer Electronics
· Industrial
· Medical
· Military & Aerospace
· Telecommunications
We are uniquely positioned to offer the highest quality products for critical applications as well as cost effective products for price sensitive applications.
Packing:
High Performance Encapsulated Power Transformer TG-3015 Blue Color Anti Damp
FAQ
1. Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test.
2. Q: What's the delivery time?
A: Sample order needs 7 days. Formal order needs 15-20 days.
3. Q: What's your payment terms?
A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.
4. Q: Do you have the prodcts in stock?
A: Yes,we will keep some general ones in stock.
5. Q: Can I mix different models in one container?
A: Yes,different models can be mixed up.
6. Q: Do you customize for customer or accept OEM Orders ?
A: Yes,we provide designing and customizing services. OEM orders are also accepted.
