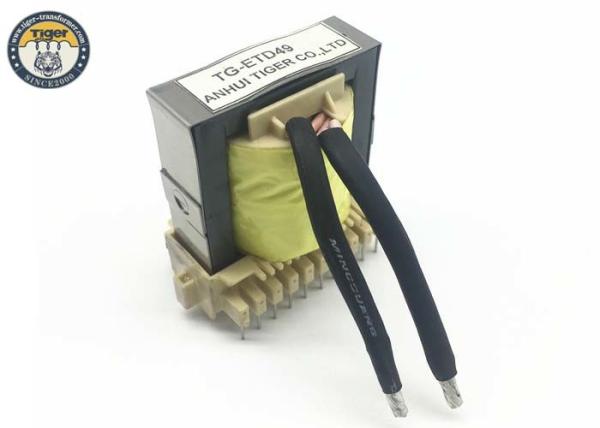

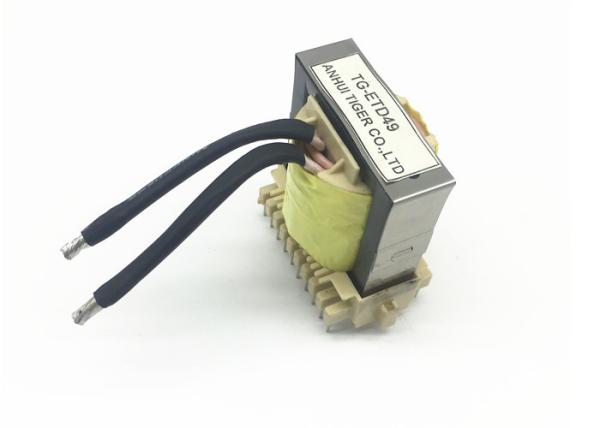

Low Loss High Power High Frequency Transformer ETD49 Vertical Type Single Phase
Low Loss High Power High Frequency Transformer ETD49 Vertical Type Single Phase
Low Loss High Power High Frequency Transformer ETD49 Vertical Type Single Phase
Low Loss High Power High Frequency Transformer ETD49 Vertical Type Single Phase
Low Loss High Power High Frequency Transformer ETD49 Vertical Type Single Phase
Low Loss High Power High Frequency Transformer ETD49 Vertical Type Single Phase
Low Loss High Power High Frequency Transformer ETD49 Vertical Type Single Phase
Low Loss High Power High Frequency Transformer ETD49 Vertical Type Single Phase
Specifications
Brand Name :
TIGER
Model Number :
ETD49
Certification :
ISO, CE,UL, RoHS
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
10000 PCS/Day
Delivery Time :
15-20 Working days
Packaging Details :
Carton: size 28*20*17cm Pallet : size 90*90*95cm (60 cartons)
Name :
ETD49
Product Type :
Vertical
Phase :
Single
Frequency :
1KHz -200KHz
Usage :
High Frequency
Port :
Shanghai or Tianjin
Description

Vertical Type ETD49 High Frequency Transformer With Low Loss High Power

Features:

• Core mounted Horizontal or Vertical
• Hipot voltage:2500Vrms
• Ferrite core material
• High-temperature resistant
• High efficiency of over 95%
• Working frequency range 20kHZ-500kHZ
• High isolation strength
• Lower profile and weight
• high power density
• Operating temperature -40℃to+125℃
• Custom designs available
• Rate current @40℃ TYP temperature rise
• Ideally used as common mode noise filter for TV,VCR,
Switching power supply,NC machine,PC&PC related
advice,measurement and control unit

According to:


Specifaction :

Low Loss High Power High Frequency Transformer ETD49 Vertical Type Single Phase

PART NO. TERMINAL PINS Dimensions in mm (inches)
A B C+/-0.5 D+/-0.5 E F TYPE
ETD-24 12 35.6 21 17.8 4 5.08 36.1 V
ETD-29 12 40.9 24 20.3 4 5.08 41.8 V
ETD-29 14 24.9 35.1 25.5 4 5 35.7 H
ETD-34 16 39.9 31.7 25.5 4 5 42 V
ETD-34 14 29.8 40 25.5 4 5 39.9 H
ETD-39 14 35.6 44.2 30.7 4 5 44.6 H
ETD-44 18 42 32 27.5 4 5 45 V
ETD-44 18 39.6 51.3 35.7 4 5 49.8 H
ETD-49 22 57.5 36 27.5 4 5 53.7 V
ETD-49 20 41.4 57.2 40.7 4 5 54.7 H
TYPE : H ->HORIZONTAL TYPE V ->VERTICAL TYPE

Application:

Low Loss High Power High Frequency Transformer ETD49 Vertical Type Single Phase

TIGER is a leading designer and manufacturer of magnetic components. We offer an extensive products line, composed of standard and custom transformers, inductors and related components to meet all of your magnetic needs. Our in-house engineering team is ready to provide you with local technical support, as well as design custom products based on your specifications. We are able to support both low volume, quick turnaround production, as high volume, low cost production.

With facilities in China, TIGER can provide sales and manufacturing support on a global level.Customers can take advantage of our overseas production and shipping capabilities for greater flexibility and convenience.

Packing:
Low Loss High Power High Frequency Transformer ETD49 Vertical Type Single Phase
FAQ
1. Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test.
2. Q: What's the delivery time?
A: Sample order needs 7 days. Formal order needs 15-20 days.
3. Q: What's your payment terms?
A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.
4. Q: Do you have the prodcts in stock?
A: Yes,we will keep some general ones in stock.
5. Q: Can I mix different models in one container?
A: Yes,different models can be mixed up.
6. Q: Do you customize for customer or accept OEM Orders ?
A: Yes,we provide designing and customizing services. OEM orders are also accepted.
Low Loss High Power High Frequency Transformer ETD49 Vertical Type Single Phase
