ER40 Horizontal Magnetic Core Transformer High Frequency For LED Driver
ER40 Horizontal Magnetic Core Transformer High Frequency For LED Driver
ER40 Horizontal Magnetic Core Transformer High Frequency For LED Driver
ER40 Horizontal Magnetic Core Transformer High Frequency For LED Driver
ER40 Horizontal Magnetic Core Transformer High Frequency For LED Driver
ER40 Horizontal Magnetic Core Transformer High Frequency For LED Driver
Specifications
Brand Name :
TIGER
Model Number :
ER40
Certification :
ISO, CE,UL, RoHS
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
10000 PCS/Day
Delivery Time :
15-20 Working days
Packaging Details :
Carton: size 28*20*17cm Pallet : size 90*90*95cm (60 cartons)
Part Number :
ER40
Shape Type :
Horizontal
Color :
Yellow
Operating Frequency :
50~200KHz
HS Code :
8504500000999
Packing :
Carton
Description

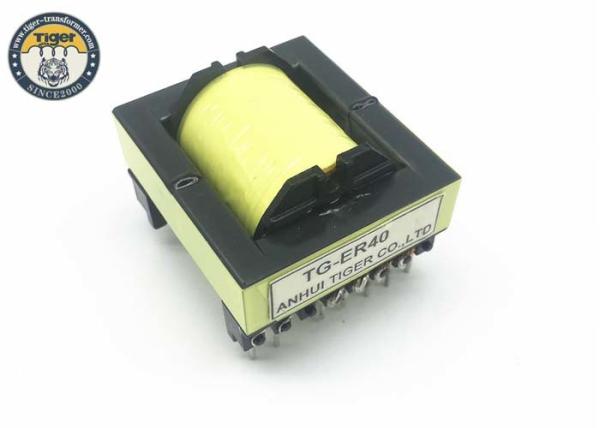

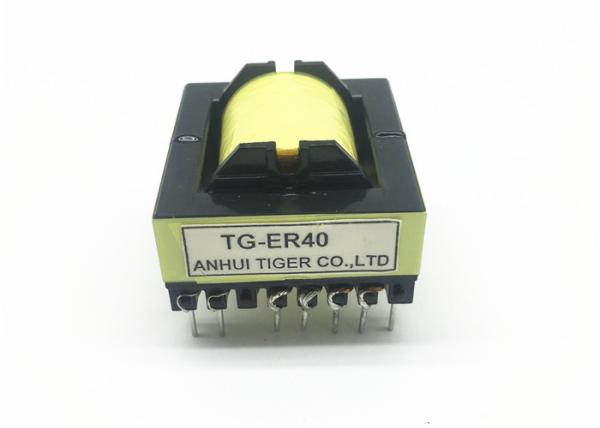

ER40 Horizontal Magnetic Core High Frequency Transformer For LED Driver

Features:

• Core mounted Horizontal or Vertical
• Hipot voltage:2500Vrms
• Ferrite core material
• High-temperature resistant
• High efficiency of over 95%
• Working frequency range 20kHZ-500kHZ
• High isolation strength
• Lower profile and weight
• high power density
• Operating temperature -40℃to+125℃
• Custom designs available
• Rate current @40℃ TYP temperature rise
• Ideally used as common mode noise filter for TV,VCR,
Switching power supply,NC machine,PC&PC related
advice,measurement and control unit

According to:


Specifaction :

ER40 Horizontal Magnetic Core Transformer High Frequency For LED Driver

Winding nomber Winding order Pin number Number of turns Number of layers Number of turns in each layer Wire diameter (mm) x Number of strands
W1 3 6-7 21 1 21 Litz (49х0,1)x1
W2 1 4-5 21 1 21 Litz (49х0,1)x1
W3 5 1-2 7 1 7 0,355x1
W4 2 10-9 21 1 21 Litz (49х0,1)x1
W5 4 12-11 21 1 21 Litz (49х0,1)x1

Winding number Winding inductance Tolerance
W1 L (6-7) 258 +-10%
W2 L (4-5) 258 +-10%
W3 L (1-2), 28.6 +-10%
W4 L (10-9), 258 +-10%
W5 L (12-11) 258 +-10%


Application:

ER40 Horizontal Magnetic Core Transformer High Frequency For LED Driver

TIGER has a renowned reputation for providing high quality custom magnetic components at competitive price. Operating from our ISO certified facilities in China, every product we deliver meets or exceeds our customers’ expectations and complies with all customer’s requirements.

We offer a wide range of products, all of which can be custom designed to meet your specific requirements. Our basic product line includes:

• Inductors

• High Frequency Transformers

• Video & Audio Isolation Transformers

• RF& Balun Transformers

• Current Sense Transformers

• Lamination Power Transformers

• Broadband Transformers

• Encapsulated Transformers

• Toroidal Transformers

• EMI-filter

• Common Mode Chokes

• Telecom Magnetics

• Other Magnetics

Packing:
ER40 Horizontal Magnetic Core Transformer High Frequency For LED Driver
FAQ
1. Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test.
2. Q: What's the delivery time?
A: Sample order needs 7 days. Formal order needs 15-20 days.
3. Q: What's your payment terms?
A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.
4. Q: Do you have the prodcts in stock?
A: Yes,we will keep some general ones in stock.
5. Q: Can I mix different models in one container?
A: Yes,different models can be mixed up.
6. Q: Do you customize for customer or accept OEM Orders ?
A: Yes,we provide designing and customizing services. OEM orders are also accepted.
ER40 Horizontal Magnetic Core Transformer High Frequency For LED Driver
