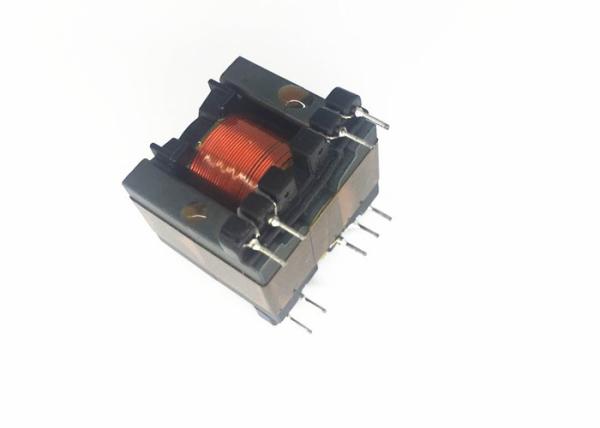

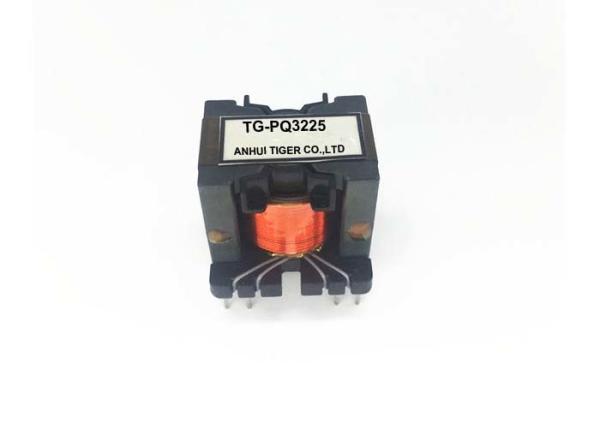

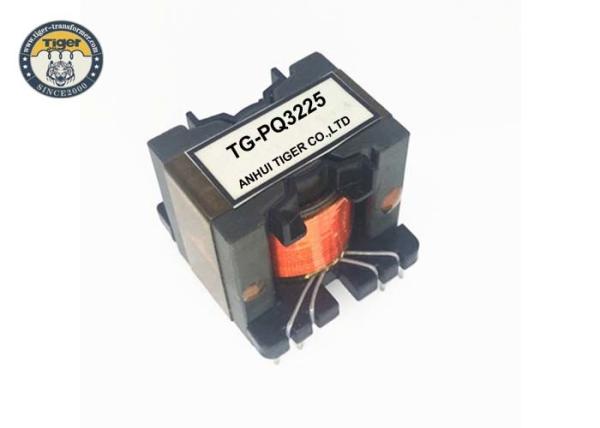

PQ3225 High Frequency PCB Mount Power Transformer With High Power Density
PQ3225 High Frequency PCB Mount Power Transformer With High Power Density
PQ3225 High Frequency PCB Mount Power Transformer With High Power Density
PQ3225 High Frequency PCB Mount Power Transformer With High Power Density
PQ3225 High Frequency PCB Mount Power Transformer With High Power Density
PQ3225 High Frequency PCB Mount Power Transformer With High Power Density
Specifications
Brand Name :
TIGER
Certification :
ISO, CE,UL, RoHS
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
10000 PCS/Day
Delivery Time :
15-20 Working days
Packaging Details :
Carton: size 28*20*17cm Pallet : size 90*90*95cm (60 cartons)
Model Number :
PQ3225
Name :
High Frequency Transformer
Coil Structure :
PQ
Product Type :
Vertical
HS Code :
8504500000999
Packing :
Carton
Lead time :
15-20 days
Port :
Shanghai or Tianjin
Description

PQ3225 PCB Mounting High Frequency Transformer With Customized Design

Features:

• Core mounted Horizontal or Vertical
• Hipot voltage:2500Vrms
• Ferrite core material
• High-temperature resistant
• High efficiency of over 95%
• Working frequency range 20kHZ-500kHZ
• High isolation strength
• Lower profile and weight
• high power density
• Operating temperature -40℃to+125℃
• Custom designs available
• Rate current @40℃ TYP temperature rise
• Ideally used as common mode noise filter for TV,VCR,
Switching power supply,NC machine,PC&PC related
advice,measurement and control unit

According to:


Quick Review:

Usage High Frequency Operating Temperature -40℃ to +125℃
Coil Number Autotransformer Storage Temperature -25℃ to +85℃
Model Number PQ3225 Working Frequency 1KHz to 200KHz
Shape Vertical, Horizontal Phase Number Single

Specifaction :

PQ3225 High Frequency PCB Mount Power Transformer With High Power Density


PART NO. PINS Dimensions(mm)
A B C+/-0.5 D+/-0.5 E E1 F
TG-PQ2020 14 22.3 23 20.3 4 5 3.8 23
TG-PQ2620 12 20 29.3 25.4 4 7.7 3.8 26.3
TG-PQ2625 12 28.5 29.6 25.5 4 7.62 3.8 27
TG-PQ3220 12 23.5 34.4 30.7 4 7.62 3.8 32.4
TG-PQ3230 12 33.5 34.2 30.7 4 7.52 5.08 32.3
TG-PQ3535 12 37.5 39.1 35.6 5 10.16 5.08 35
TG-PQ4040 12 41.5 42 38 5 15 5.08 40

Application:

PQ3225 High Frequency PCB Mount Power Transformer With High Power Density

TIGER is a leading designer and manufacturer of magnetic components. We offer an extensive products line, composed of standard and custom transformers, inductors and related components to meet all of your magnetic needs. Our in-house engineering team is ready to provide you with local technical support, as well as design custom products based on your specifications. We are able to support both low volume, quick turnaround production, as high volume, low cost production.

With facilities in China, TIGER can provide sales and manufacturing support on a global level.Customers can take advantage of our overseas production and shipping capabilities for greater flexibility and convenience.
