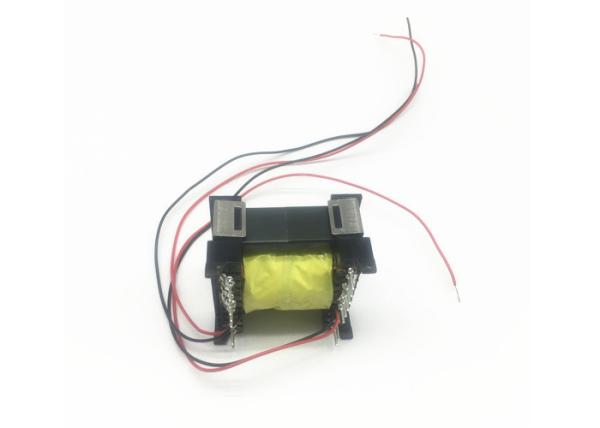

Customized High Frequency Transformer / ETD49 Transformer 750 Watt For Charger
Customized High Frequency Transformer / ETD49 Transformer 750 Watt For Charger
Customized High Frequency Transformer / ETD49 Transformer 750 Watt For Charger
Customized High Frequency Transformer / ETD49 Transformer 750 Watt For Charger
Customized High Frequency Transformer / ETD49 Transformer 750 Watt For Charger
Customized High Frequency Transformer / ETD49 Transformer 750 Watt For Charger
Specifications
Brand Name :
TIGER
Model Number :
ETD49
Certification :
ISO, CE,UL, RoHS
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
10000 PCS/Day
Delivery Time :
15-20 Working days
Packaging Details :
Carton: size 28*20*17cm Pallet : size 90*90*95cm (60 cartons)
Name :
ETD49 High Frequency Transformer
Primary Losses :
1.90W
Secondary Losses :
2.15W
Frequency :
65000
Tem Rise :
51.2 ℃
Dmax :
0.475
Description

ETD49 Series 750 Watt With Cables High Frequency Transformer For Charger

Features:


• Core mounted Horizontal or Vertical
• Hipot voltage:2500Vrms
• Ferrite core material
• High-temperature resistant
• High efficiency of over 95%
• Working frequency range 20kHZ-500kHZ
• High isolation strength
• Lower profile and weight
• High power density
• Operating temperature -40℃to+125℃
• Custom designs available
• Rate current @40℃ TYP temperature rise
• Ideally used as common mode noise filter for TV,VCR,
Switching power supply,NC machine,PC&PC related
advice,measurement and control unit
According to:


Specifaction :

Customized High Frequency Transformer / ETD49 Transformer 750 Watt For Charger

Operating Frequency: 65kHz
Wind Sequence PIN (S,F) TURNS STRANDS AWG
1-W1 (S1,F1) 14, 5 11 5 25
2-W2a (S2,F2) 13, 6 11 4 25
2-W2b (S3,F3) 12, 7 11 1 25
3-W3a (S2,F2) 13, 6 11 4 25
3-W3b (S3,F3) 12, 7 11 1 25
4-W4 (S4,F4) (19,20) (1,2) 12 1 30.5mm x .100mm
5-W5 (S5,F5) 8, 16 11 5 25
6-W6a (S6,F6) 9, 15 11 4 25
6-W6b (S7,F7) 7, 11 11 1 25
7-W7a (S6,F6) 9, 15 11 4 25
7-W7b (S7,F7) 7, 11 11 1 25
8-W8 FLY 2 2 26 AWG UL 1007
Lm (Center Leg Gap) 1000uH@16A 700uH@24A 600uH@28A
AL 3800 Tolerance: 0,+12% Ungapped L=1839uH

Application:
Customized High Frequency Transformer / ETD49 Transformer 750 Watt For Charger
Application:

TIGER designs and manufactures a wide range of products for critical applications in various industries, including but not limited to:

• Automotive

• Consumer Electronics

• Industrial

• Medical

• Military & Aerospace

• Telecommunications

We are uniquely positioned to offer the highest quality products for critical applications as well as cost effective products for price sensitive applications.

At TIGER, we believe that customer service is just as critical as the product. Our helpful sales associates will ensure that every step of your experience with us runs smoothly. Our engineers’ commitment to your project’s success is resolute. Not only will our expert team help identify, develop and manufacture a part based on your specific requirements, but they will also provide solid ongoing post-sales support.

Packing:
Customized High Frequency Transformer / ETD49 Transformer 750 Watt For Charger
FAQ
1. Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test.
2. Q: What's the delivery time?
A: Sample order needs 7 days. Formal order needs 15-20 days.
3. Q: What's your payment terms?
A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.
4. Q: Do you have the prodcts in stock?
A: Yes,we will keep some general ones in stock.
5. Q: Can I mix different models in one container?
A: Yes,different models can be mixed up.
6. Q: Do you customize for customer or accept OEM Orders ?
A: Yes,we provide designing and customizing services. OEM orders are also accepted.
Customized High Frequency Transformer / ETD49 Transformer 750 Watt For Charger
