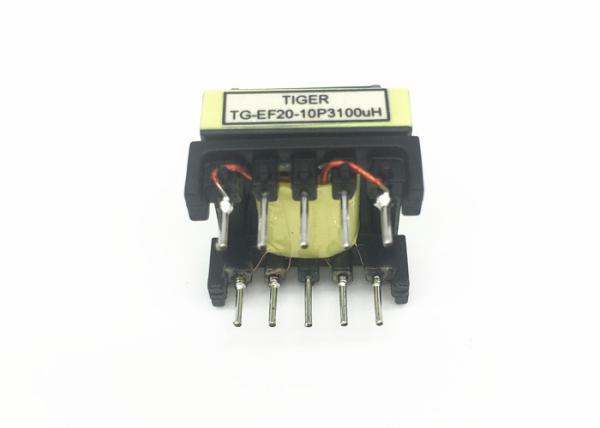

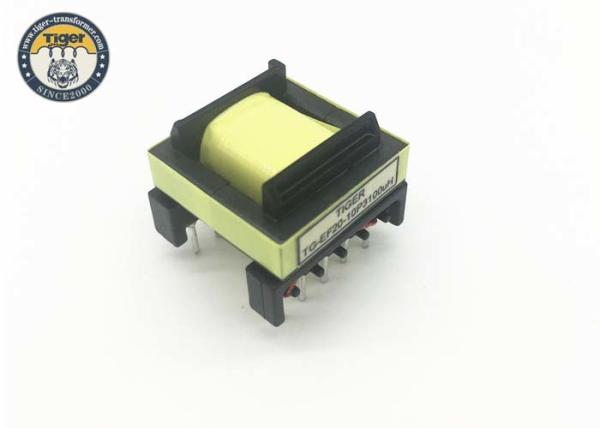

Magnetic Ferrites High Frequency Switching Transformer EF20 MnZn Material For Power Supply
Magnetic Ferrites High Frequency Switching Transformer EF20 MnZn Material For Power Supply
Magnetic Ferrites High Frequency Switching Transformer EF20 MnZn Material For Power Supply
Magnetic Ferrites High Frequency Switching Transformer EF20 MnZn Material For Power Supply
Magnetic Ferrites High Frequency Switching Transformer EF20 MnZn Material For Power Supply
Magnetic Ferrites High Frequency Switching Transformer EF20 MnZn Material For Power Supply
Specifications
Brand Name :
TIGER
Model Number :
EF20
Certification :
ISO, CE,UL, RoHS
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
10000 PCS/Day
Delivery Time :
15-20 Working days
Packaging Details :
Carton: size 28*20*17cm Pallet : size 90*90*95cm (60 cartons)
Name :
EF20
Shape Type :
Horizontal
Storage Humidity :
30% ~ 90%
Core material :
PC40, PC44, PC95
Color :
Yellow
Phase :
Single
Coil Number :
Autotransformer
Material :
Copper Wire, Ferrite Core, Tape
Description

MnZn material Magnetic Ferrites EF20 Switching Power High Frequency Transformer

Features:


• Wide operation voltage
• High operation frequency
• Thermal stability
• Hipot voltage:2500Vrms
• Ferrite core material
• High-temperature resistant
• High efficiency of over 95%
• Working frequency range 20kHZ-500kHZ
• High isolation strength
• Lower profile and weight
• High power density
• Operating temperature -40℃to+125℃
• Custom designs available
• Rate current @40℃ TYP temperature rise
• Ideally used as common mode noise filter for TV,VCR,
Switching power supply,NC machine,PC&PC related
advice,measurement and control unit

According to:



Specifaction :

Magnetic Ferrites High Frequency Switching Transformer EF20 MnZn Material For Power Supply

Type Shape
Structure		 Dimension Power
Range
A B C D E F
EF12.6 Horizontal 15.0Max 9.2±0.5 12.8±0.5 3.5±0.5 5.3±0.3 10.0±0.5 15W Max
EF13 15.0Max 13.5±0.5 18.6±0.5 3.5±0.5 2.75±0.3 16.0±0.5 15W Max
EF16 19.0Max 11.7±0.5 16.9±0.5 3.5±0.5 3.5±0.3 14.5±0.5 20W Max
EF20 22.0Max 17.5±0.5 20.4±0.5 3.5±0.5 5.0±0.3 15.0±0.5 30W Max
EF25 27.0Max 18.5±0.5 26.0±0.5 3.5±0.5 5.0±0.3 20.0±0.5 45W Max
EF12.6 15.0Max 15.7±0.5 9.9±0.5 3.5±0.5 3.8±0.3 7.6±0.5 15W Max
EF16 19.0Max 18.3±0.5 11.1±0.5 3.5±0.5 3.75±0.3 7.5±0.5 20W Max
EF20 22.0Max 21.5±0.5 13.6±0.5 3.5±0.5 3.8±0.3 9.8±0.5 30W Max
EF25 27.0Max 18.9±0.5 20.5±0.5 3.5±0.5 5.0±0.3 16.0±0.5 45W Max

Application:
Magnetic Ferrites High Frequency Switching Transformer EF20 MnZn Material For Power Supply

TIGER has a renowned reputation for providing high quality custom magnetic components at competitive price. Operating from our ISO certified facilities in China, every product we deliver meets or exceeds our customers’ expectations and complies with all customer’s requirements.

We offer a wide range of products, all of which can be custom designed to meet your specific requirements. Our basic product line includes:

• Inductors

• High Frequency Transformers

• Video & Audio Isolation Transformers

• RF& Balun Transformers

• Current Sense Transformers

• Lamination Power Transformers

• Broadband Transformers

• Encapsulated Transformers

• Toroidal Transformers

• EMI-filter

• Common Mode Chokes

• Telecom Magnetics

• Other Magnetics

Packing:
Magnetic Ferrites High Frequency Switching Transformer EF20 MnZn Material For Power Supply
FAQ
1. Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test.
2. Q: What's the delivery time?
A: Sample order needs 7 days. Formal order needs 15-20 days.
3. Q: What's your payment terms?
A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.
4. Q: Do you have the prodcts in stock?
A: Yes,we will keep some general ones in stock.
5. Q: Can I mix different models in one container?
A: Yes,different models can be mixed up.
6. Q: Do you customize for customer or accept OEM Orders ?
A: Yes,we provide designing and customizing services. OEM orders are also accepted.
