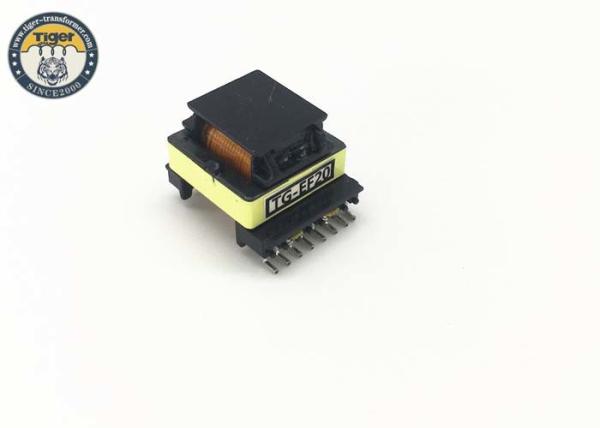

EF20 Small Electronic High Frequency Transformer Horizontal SMD Type OEM / ODM Accepted
EF20 Small Electronic High Frequency Transformer Horizontal SMD Type OEM / ODM Accepted
EF20 Small Electronic High Frequency Transformer Horizontal SMD Type OEM / ODM Accepted
EF20 Small Electronic High Frequency Transformer Horizontal SMD Type OEM / ODM Accepted
EF20 Small Electronic High Frequency Transformer Horizontal SMD Type OEM / ODM Accepted
EF20 Small Electronic High Frequency Transformer Horizontal SMD Type OEM / ODM Accepted
Specifications
Brand Name :
TIGER
Model Number :
EF20
Certification :
ISO, CE,UL, RoHS
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
10000 PCS/Day
Delivery Time :
15-20 Working days
Packaging Details :
Carton: size 28*20*17cm Pallet : size 90*90*95cm (60 cartons)
Part number :
EF20
Shape Type :
Horizontal/Vertical /SMD
Inductance Range :
1uH-100H
Working Frequency Range :
50Hz --300KHZ
Storage Humidity :
30% ~ 90%
OEM/ODM :
Accepted
Samples :
Free
Description

Horizontal SMD Type Customized EF20 Small Electronic High Frequency Transformer

Features:

• Wide operation voltage
• High operation frequency
• Thermal stability
• Hipot voltage:2500Vrms
• Ferrite core material
• High-temperature resistant
• High efficiency of over 95%
• Working frequency range 20kHZ-500kHZ
• High isolation strength
• Lower profile and weight
• High power density
• Operating temperature -40℃to+125℃
• Custom designs available
• Rate current @40℃ TYP temperature rise
• Ideally used as common mode noise filter for TV,VCR,
Switching power supply,NC machine,PC&PC related
advice,measurement and control unit

According to:


Specifaction :

Type

Shape
Structure

 Dimension

Power
Range
A B C D E F
EF12.6 Horizontal 15.0Max 9.2±0.5 12.8±0.5 3.5±0.5 5.3±0.3 10.0±0.5 15W Max
EF13 15.0Max 13.5±0.5 18.6±0.5 3.5±0.5 2.75±0.3 16.0±0.5 15W Max
EF16 19.0Max 11.7±0.5 16.9±0.5 3.5±0.5 3.5±0.3 14.5±0.5 20W Max
EF20 22.0Max 17.5±0.5 20.4±0.5 3.5±0.5 5.0±0.3 15.0±0.5 30W Max
EF25 27.0Max 18.5±0.5 26.0±0.5 3.5±0.5 5.0±0.3 20.0±0.5 45W Max
EF12.6 15.0Max 15.7±0.5 9.9±0.5 3.5±0.5 3.8±0.3 7.6±0.5 15W Max
EF16 19.0Max 18.3±0.5 11.1±0.5 3.5±0.5 3.75±0.3 7.5±0.5 20W Max
EF20 22.0Max 21.5±0.5 13.6±0.5 3.5±0.5 3.8±0.3 9.8±0.5 30W Max
EF25 27.0Max 18.9±0.5 20.5±0.5 3.5±0.5 5.0±0.3 16.0±0.5 45W Max

Application:
EF20 Small Electronic High Frequency Transformer Horizontal SMD Type OEM / ODM Accepted
TIGER designs and manufactures a wide range of products for critical applications in various industries, including but not limited to:
· Automotive
· Consumer Electronics
· Industrial
· Medical
· Military & Aerospace
· Telecommunications
We are uniquely positioned to offer the highest quality products for critical applications as well as cost effective products for price sensitive applications.
Packing:
EF20 Small Electronic High Frequency Transformer Horizontal SMD Type OEM / ODM Accepted
FAQ
1. Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test.
2. Q: What's the delivery time?
A: Sample order needs 7 days. Formal order needs 15-20 days.
3. Q: What's your payment terms?
A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.
4. Q: Do you have the prodcts in stock?
A: Yes,we will keep some general ones in stock.
5. Q: Can I mix different models in one container?
A: Yes,different models can be mixed up.
6. Q: Do you customize for customer or accept OEM Orders ?
A: Yes,we provide designing and customizing services. OEM orders are also accepted.
EF20 Small Electronic High Frequency Transformer Horizontal SMD Type OEM / ODM Accepted
