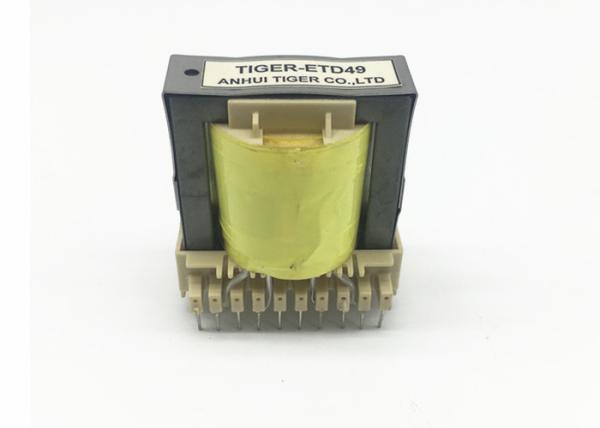

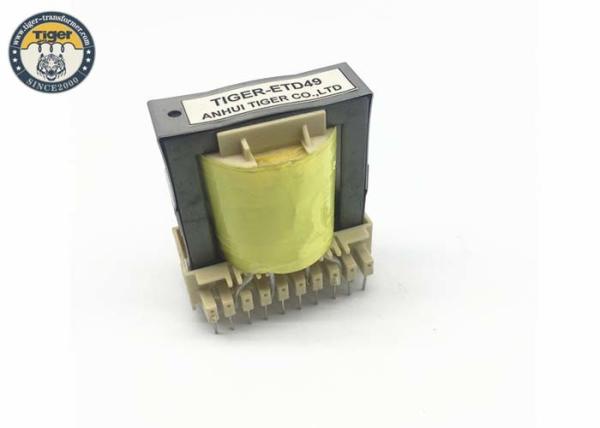

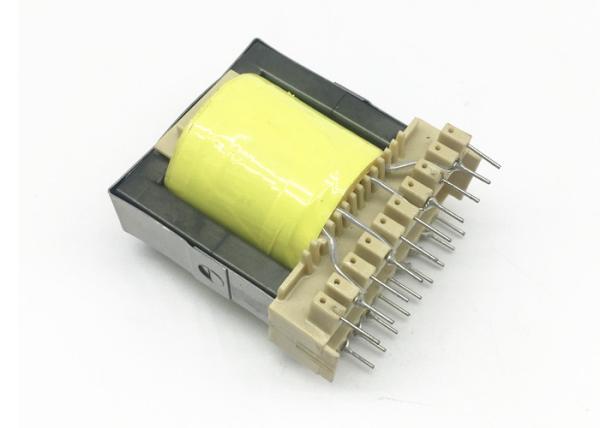

ETD49 High Frequency Transformer Pins 9+10 Phenolic Bobbin For Power Amplifiers
ETD49 High Frequency Transformer Pins 9+10 Phenolic Bobbin For Power Amplifiers
ETD49 High Frequency Transformer Pins 9+10 Phenolic Bobbin For Power Amplifiers
ETD49 High Frequency Transformer Pins 9+10 Phenolic Bobbin For Power Amplifiers
ETD49 High Frequency Transformer Pins 9+10 Phenolic Bobbin For Power Amplifiers
ETD49 High Frequency Transformer Pins 9+10 Phenolic Bobbin For Power Amplifiers
Specifications
Brand Name :
TIGER
Model Number :
ETD49
Certification :
ISO, CE,UL, RoHS
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
10000 PCS/Day
Delivery Time :
15-20 Working days
Packaging Details :
Carton: size 28*20*17cm Pallet : size 90*90*95cm (60 cartons)
Name :
Transformer
Color :
Yellow
Operating Frequency :
50~200KHz
Output power :
30 to 80 W
Storage temperature :
-25 ℃ to +85 ℃
name :
high frequency power transformer
Description

ETD49 Pin 9+10 Phenolic Bobbin High Frequency Transformer For Power Amplifiers

Features:

• High efficiency of over 95%
• Working frequency range 20kHZ-500kHZ
• High isolation strength
• Lower profile and weight
• High power density
• Core mounted Horizontal or Vertical
• RoHS Directive-compliant

• UL insulation systems are available

• Low Power Loss
• Ferrite core material
• High-temperature resistant
• Operating temperature -40℃to+125℃
• Rate current @40℃ TYP temperature rise
• Ideally used as common mode noise filter for TV,VCR,
Switching power supply,NC machine,PC&PC related
advice,measurement and control unit

• Custom designs available

According to:


Specifaction :

ETD49 High Frequency Transformer Pins 9+10 Phenolic Bobbin For Power Amplifiers

PART NO. TERMINAL PINS Dimensions in mm (inches)
A B C+/-0.5 D+/-0.5 E F TYPE
ETD-24 12 35.6 21 17.8 4 5.08 36.1 V
ETD-29 12 40.9 24 20.3 4 5.08 41.8 V
ETD-29 14 24.9 35.1 25.5 4 5 35.7 H
ETD-34 16 39.9 31.7 25.5 4 5 42 V
ETD-34 14 29.8 40 25.5 4 5 39.9 H
ETD-39 14 35.6 44.2 30.7 4 5 44.6 H
ETD-44 18 42 32 27.5 4 5 45 V
ETD-44 18 39.6 51.3 35.7 4 5 49.8 H
ETD-49 22 57.5 36 27.5 4 5 53.7 V
ETD-49 20 41.4 57.2 40.7 4 5 54.7 H
TYPE : H ->HORIZONTAL TYPE V ->VERTICAL TYPE

Application:

ETD49 High Frequency Transformer Pins 9+10 Phenolic Bobbin For Power Amplifiers

TIGER has a renowned reputation for providing high quality custom magnetic components at competitive price. Operating from our ISO certified facilities in China, every product we deliver meets or exceeds our customers’ expectations and complies with all customer’s requirements.

We offer a wide range of products, all of which can be custom designed to meet your specific requirements. Our basic product line includes:

• Inductors

• High Frequency Transformers

• Video & Audio Isolation Transformers

• RF& Balun Transformers

• Current Sense Transformers

• Lamination Power Transformers

• Broadband Transformers

• Encapsulated Transformers

• Toroidal Transformers

• EMI-filter

• Common Mode Chokes

• Telecom Magnetics

• Other Magnetics

Packing:
ETD49 High Frequency Transformer Pins 9+10 Phenolic Bobbin For Power Amplifiers
FAQ
1. Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test.
2. Q: What's the delivery time?
A: Sample order needs 7 days. Formal order needs 15-20 days.
3. Q: What's your payment terms?
A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.
4. Q: Do you have the prodcts in stock?
A: Yes,we will keep some general ones in stock.
5. Q: Can I mix different models in one container?
A: Yes,different models can be mixed up.
6. Q: Do you customize for customer or accept OEM Orders ?
A: Yes,we provide designing and customizing services. OEM orders are also accepted.
ETD49 High Frequency Transformer Pins 9+10 Phenolic Bobbin For Power Amplifiers
