Customized High Frequency Power Transformer TG-PQ2625 CE & UL Certificates
Customized High Frequency Power Transformer TG-PQ2625 CE & UL Certificates
Customized High Frequency Power Transformer TG-PQ2625 CE & UL Certificates
Customized High Frequency Power Transformer TG-PQ2625 CE & UL Certificates
Customized High Frequency Power Transformer TG-PQ2625 CE & UL Certificates
Customized High Frequency Power Transformer TG-PQ2625 CE & UL Certificates
Customized High Frequency Power Transformer TG-PQ2625 CE & UL Certificates
Customized High Frequency Power Transformer TG-PQ2625 CE & UL Certificates
Specifications
Brand Name :
TIGER
Model Number :
TG-PQ2625
Certification :
ISO, CE,UL, RoHS
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
10000 PCS/Day
Delivery Time :
15-20 Working days
Packaging Details :
Carton: size 28*20*17cm Pallet : size 90*90*95cm (60 cartons)
Part Number :
High Frequency Transformer
Materials :
Copper Wire, Ferrite Core, Tape
Port :
Shanghai or Tianjin
name :
high frequency power transformer
INSULATION TAPE :
PZ 130℃
Varnish :
844-K5-130℃
Description

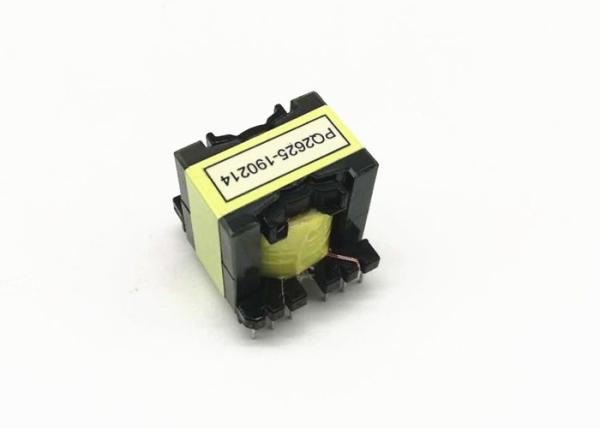

Customized TG-PQ2625 High Frequency Transformer with CE & UL Certificates

Customized High Frequency Power Transformer TG-PQ2625 CE & UL Certificates

Winding structure

No.

Margin

Tape

 Start Finish Wire size Turns Winding way Tape Note
N1 7 8 2UEW φ0.35*2 28 TS Close winding 2 TS
N2 2+2 6 4 2UEW φ0.35*2 26 TS Close winding 2 TS
N3 2+2 8 9 2UEW φ0.35*2 25 TS Close winding 2 TS
N4 2+2 11 10 2UEW φ0.20 9 TS Sparse winding 2 TS
N5 2+2 2 3 2UEW φ0.20 4 TS Sparse winding 2 TS

NOTES:

1,Core fix tape 2 TS

2,Winding level off, do not cross, overlapping.

3,The finished product Varnish immersion

• Core mounted Horizontal or Vertical
• Hipot voltage:2500Vrms
• Ferrite core material
• High-temperature resistant
• High efficiency of over 95%
• Working frequency range 20kHZ-500kHZ
• High isolation strength
• Lower profile and weight
• high power density
• Operating temperature -40℃to+125℃
• Custom designs available
• Rate current @40℃ TYP temperature rise
• Ideally used as common mode noise filter for TV,VCR,
Switching power supply,NC machine,PC&PC related
advice,measurement and control unit

Electrical Datasheet

Item Test Point Range Test Condition Test machine
Inductance L(Pin7-9) 705mH ±5% 10KHz/0.1V CH-1062A
HI-POT PRI - SEC 2000VAC 5mA 3SEC YD9850A
Winding - Core 2000VAC
Leakage

LK(Pin7-9)

Shorted 4-6

 7uH Max 10 KHz/0.1V CH-1062A
