Specifications
Brand Name :
Tiger
Model Number :
EFD30
Certification :
ISO, CE,UL, RoHS, CCC
Place of Origin :
China
MOQ :
1000
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
10000 PCS/Day
Delivery Time :
15-20 Working days
Packaging Details :
Carton: size 28*20*17cm Pallet : size 90*90*95cm (60 cartons)
Application :
Switching Power Supply, LED, Driver...
Shipping :
By air or by sea
HS Code :
8504901900
Port :
FOB Shanghai Or Tianjin
ODM, OEM :
Accepted
Name :
ferrite core
Color :
Black
Description

Customized Transformer Core Ferrite Magnetic Core EP series Black EFD30

EFD series

Professional Magnetic Ferrite Core EFD Series EFD30 For Customized Transformer

MATERIALS:TG-10P, TG-7P, TG-5P, TG-P4

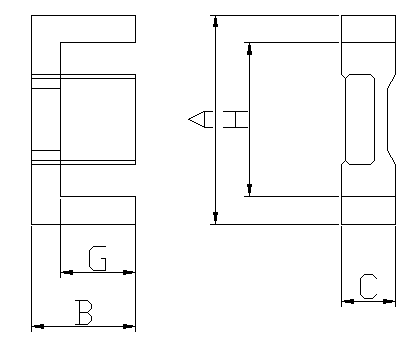

TYPE Dimension:mm Weight:g
A B C D F G H
EFD10 10.5±0.3 5.20±0.1 2.70±0.1 1.45±0.2 4.55±0.25 3.75±0.2 7.75±0.25 0.91
EFD12 12.5±0.3 6.20±0.2 3.50±0.2 2.0±0.2 5.40±0.25 4.55±0.2 9.0±0.25 1.8
EFD13 13.2±0.3 6.60±0.2 4.60±0.2 2.05±0.2 5.60±0.25 4.5±0.2 10.7±0.25 1.6
EFD15 15.0±0.4 7.50±0.2 4.65±0.2 2.4±0.2 5.30±0.25 5.5±0.25 11.0±0.35 2.8
EFD17 16.9±0.3 7.60±0.2 5.50±0.2 2.9±0.2 7.30±0.15 5.6±0.15 13.2±0.34 3.3
EFD20 20±0.55 10.0±0.2 6.65±0.3 3.6±0.2 8.90±0.3 7.7±0.25 15.4±0.5 7
EFD20L 20±0.55 12.7±0.25 6.65±0.3 36.±0.2 8.90±0.3 10.45±0.25 15.4±0.5 7.9
EFD25 25±0.65 12.5±0.2 9.1±0.3 5.2±0.2 11.4±0.3 9.3±0.25 18.7±0.6 16
EFD30 30.0±0.8 15.0±0.2 9.1±0.3 4.9±0.25 14.6±0.4 11.2±0.3 22.4±0.75 24
EFD50 50.0±0.8 25.0±0.3 10.0±0.3 6.0±0.2 23.0±0.3 17.0±0.3 35.0±0.8 90


EFD series

Professional Magnetic Ferrite Core EFD Series EFD30 For Customized Transformer

MATERIALS:TG-10P, TG-7P, TG-5P, TG-P4

TYPE Effective parameter AL(nH/N2)(AL±25%)
C1 Ae Le Ve TG-P4 TG-5P TG-7P TG-10P
(mm-1) (mm2) (mm) (mm3)
EFD10 3.29 7.2 23.7 171 560 　 　 　
EFD12 2.5 11.4 28.5 325 800 　 　 　
EFD13 3.01 9.8 29.5 289 700 　 　 　
EFD15 2.27 15 34 510 700 　 　 　
EFD17 1.77 20 35.4 708 1050 　 　 　
EFD20 1.52 31 47 1460 1300 　 　 　
EFD20L 1.85 33 61.2 2105 1050 　 　 　
EFD25 1 58 57 3300 2000 　 　 　
EFD30 0.98 69 68 4700 2100 　 　 　
EFD50 0.68 151.5 103.3 15463 3900 　 　 　

According to:
Professional Magnetic Ferrite Core EFD Series EFD30 For Customized TransformerProfessional Magnetic Ferrite Core EFD Series EFD30 For Customized TransformerProfessional Magnetic Ferrite Core EFD Series EFD30 For Customized TransformerProfessional Magnetic Ferrite Core EFD Series EFD30 For Customized TransformerProfessional Magnetic Ferrite Core EFD Series EFD30 For Customized Transformer
Application:
Professional Magnetic Ferrite Core EFD Series EFD30 For Customized Transformer

TIGER is a leading designer and manufacturer of magnetic components. We offer an extensive products line, composed of standard and custom transformers, inductors and related components to meet all of your magnetic needs. Our in-house engineering team is ready to provide you with local technical support, as well as design custom products based on your specifications. We are able to support both low volume, quick turnaround production, as high volume, low cost production.

With facilities in China, TIGER can provide sales and manufacturing support on a global level.Customers can take advantage of our overseas production and shipping capabilities for greater flexibility and convenience.

TIGER designs and manufactures a wide range of products for critical applications in various industries, including but not limited to:
· Automotive
· Consumer Electronics
· Industrial
· Medical
· Military & Aerospace
· Telecommunications
We are uniquely positioned to offer the highest quality products for critical applications as well as cost effective products for price sensitive applications.

TIGER has a renowned reputation for providing high quality custom magnetic components at competitive price. Operating from our ISO certified facilities in China, every product we deliver meets or exceeds our customers’ expectations and complies with all customer’s requirements.

We offer a wide range of products, all of which can be custom designed to meet your specific requirements. Our basic product line includes:

·Inductors

·High Frequency Transformers

·Video & Audio Isolation Transformers

·RF& Balun Transformers

·Current Sense Transformers

·Lamination Power Transformers

·Broadband Transformers

·Encapsulated Transformers

·Toroidal Transformers

·EMI-filter

·Common Mode Chokes

·Telecom Magnetics

·Other Magnetics

Packing:
Professional Magnetic Ferrite Core EFD Series EFD30 For Customized Transformer

FAQ

1. Q: Can I get some samples?

A: Yes, sample order is available for quality check and market test.

2. Q: What's the delivery time?

A: Sample order needs 7 days. Formal order needs 15-20 days.

3. Q: What's your payment terms?

A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.

4. Q: Do you have the prodcts in stock?

A: Yes,we will keep some general ones in stock.

5. Q: Can I mix different models in one container?

A: Yes,different models can be mixed up.

6. Q: Do you customize for customer or accept OEM Orders ?

A: Yes,we provide designing and customizing services. OEM orders are also accepted.

Professional Magnetic Ferrite Core EFD Series EFD30 For Customized Transformer
