Specifications
Brand Name :
Tiger
Model Number :
EF20
Certification :
ISO, CE,UL, RoHS, CCC
Place of Origin :
China
MOQ :
1000
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
10000 PCS/Day
Delivery Time :
15-20 Working days
Packaging Details :
Carton: size 28*20*17cm Pallet : size 90*90*95cm (60 cartons)
Application :
Switching Power Supply, LED, Driver...
Shipping :
By air or by sea
HS Code :
8504901900
Port :
FOB Shanghai Or Tianjin
ODM, OEM :
Accepted
Name :
ferrite core
Color :
Black
Description

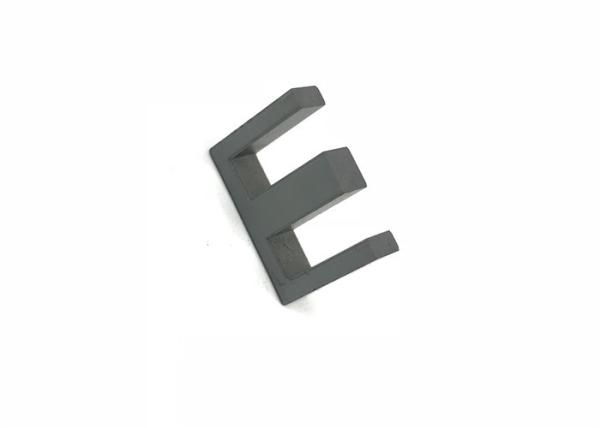

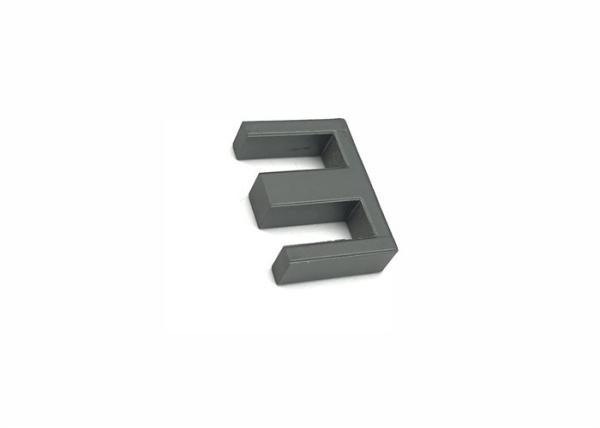

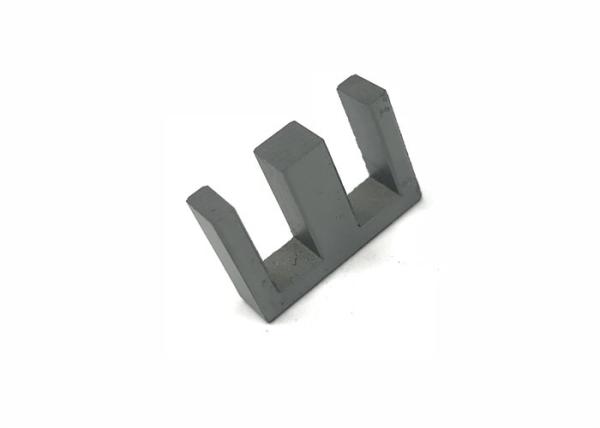

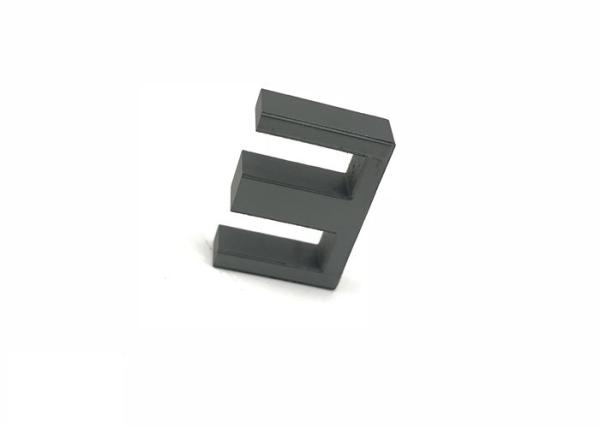

EF Series Customized Transformer Magnetic Ferrite Core Black EF20

EF Series

Customized Transformer Magnetic Ferrite Core Black EF20 EF Series ISO Approved

MATERIALS:TG-10P, TG-7P, TG-5P, TG-P4

TYPE Dimension:mm Weight:g
A B C D E F
EF12.6 12.7±0.4 12.8±0.4 3.60±0.2 8.8 3.65±0.15 9.30±0.3 2.8
EF16 16.10±0.6 16.10±0.4 4.50±0.2 11.3 4.55±0.15 11.80±0.4 3.6
EF20 20.0±0.5 19.80±0.5 5.65±0.3 14.1 5.70±0.30 14.40±0.5 7.3
EF20/11 20.0±0.4 20.0±0.4 11 14.1 5.70±0.30 14.40±0.5 13.9
EF25 25.05±0.75 25.10±0.5 7.20±0.3 17.5 7.20±0.25 17.80±0.4 16
EF25/11 25.05±0.5 25.10±0.5 10.75±0.3 17.5 7.20±0.3 17.80±0.4 24.4
EF32 32 32.8 9.5 22.7 9.5 22.4 30
EF36 36 36 11.5 24.5 10.2 24 50

TYPE Effective parameter AL(nH/N2)(AL±25%)
C1 Ae Le Ve TG-P4 TG-5P TG-7P TG-10P
(mm-1) (mm2) (mm) (mm3)
EF12.6 2.39 12.4 29.6 367 875
EF16 1.87 20.1 37.6 756 1100
EF20 1.34 33.5 44.9 1500 1350
EF20/11 0.699 64.46 45.06 2904 2990
EF25 1.11 52.5 57.8 3020 1800
EF25/11 0.72 8.2 57.8 4695 3200
EF32 0.89 83 74 6140 2300
EF36 0.68 120 81 9670 30

According to:
Customized Transformer Magnetic Ferrite Core Black EF20 EF Series ISO ApprovedCustomized Transformer Magnetic Ferrite Core Black EF20 EF Series ISO ApprovedCustomized Transformer Magnetic Ferrite Core Black EF20 EF Series ISO ApprovedCustomized Transformer Magnetic Ferrite Core Black EF20 EF Series ISO ApprovedCustomized Transformer Magnetic Ferrite Core Black EF20 EF Series ISO Approved
Application:
Customized Transformer Magnetic Ferrite Core Black EF20 EF Series ISO Approved

TIGER is a leading designer and manufacturer of magnetic components. We offer an extensive products line, composed of standard and custom transformers, inductors and related components to meet all of your magnetic needs. Our in-house engineering team is ready to provide you with local technical support, as well as design custom products based on your specifications. We are able to support both low volume, quick turnaround production, as high volume, low cost production.

With facilities in China, TIGER can provide sales and manufacturing support on a global level.Customers can take advantage of our overseas production and shipping capabilities for greater flexibility and convenience.

TIGER designs and manufactures a wide range of products for critical applications in various industries, including but not limited to:
· Automotive
· Consumer Electronics
· Industrial
· Medical
· Military & Aerospace
· Telecommunications
We are uniquely positioned to offer the highest quality products for critical applications as well as cost effective products for price sensitive applications.

TIGER has a renowned reputation for providing high quality custom magnetic components at competitive price. Operating from our ISO certified facilities in China, every product we deliver meets or exceeds our customers’ expectations and complies with all customer’s requirements.

We offer a wide range of products, all of which can be custom designed to meet your specific requirements. Our basic product line includes:

·Inductors

·High Frequency Transformers

·Video & Audio Isolation Transformers

·RF& Balun Transformers

·Current Sense Transformers

·Lamination Power Transformers

·Broadband Transformers

·Encapsulated Transformers

·Toroidal Transformers

·EMI-filter

·Common Mode Chokes

·Telecom Magnetics

·Other Magnetics

Packing:
Customized Transformer Magnetic Ferrite Core Black EF20 EF Series ISO Approved

FAQ

1. Q: Can I get some samples?

A: Yes, sample order is available for quality check and market test.

2. Q: What's the delivery time?

A: Sample order needs 7 days. Formal order needs 15-20 days.

3. Q: What's your payment terms?

A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.

4. Q: Do you have the prodcts in stock?

A: Yes,we will keep some general ones in stock.

5. Q: Can I mix different models in one container?

A: Yes,different models can be mixed up.

6. Q: Do you customize for customer or accept OEM Orders ?

A: Yes,we provide designing and customizing services. OEM orders are also accepted.
