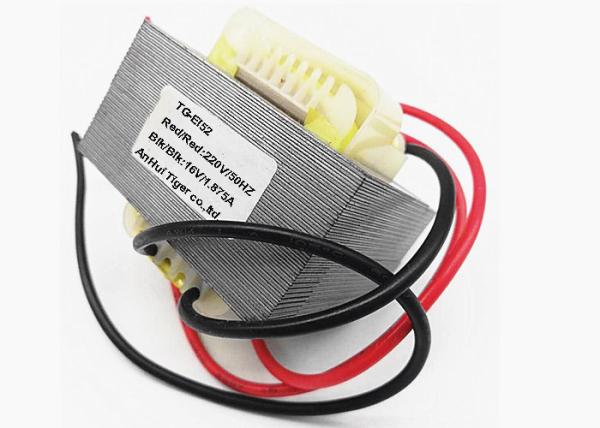

16V-220V 50 Hz Low Frequency Transformer EI52 Series For Telecommunications
16V-220V 50 Hz Low Frequency Transformer EI52 Series For Telecommunications
16V-220V 50 Hz Low Frequency Transformer EI52 Series For Telecommunications
16V-220V 50 Hz Low Frequency Transformer EI52 Series For Telecommunications
16V-220V 50 Hz Low Frequency Transformer EI52 Series For Telecommunications
16V-220V 50 Hz Low Frequency Transformer EI52 Series For Telecommunications
Specifications
Brand Name :
Tiger
Model Number :
EI52
Certification :
UL,ISO,CE,ROSH,CCC
Place of Origin :
China
MOQ :
1000 PCS
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
20000PCS/Per Day
Delivery Time :
15-20 days
Packaging Details :
Cartons/ Pallets
name :
EI type transformer
OEM/ODM :
Accepted
cable :
yes
material :
silicon steel sheet
Size/Pin :
Customize
Application :
PCB Assembly transformer module
Description

EI Series Customize Transformer 120-460 VAC Low Frequency Transformer

· Single or Dual Primary 50Hz,16V-220V
· Designed to meet International Safety Requirements
· Inherently Limited Versions available
· UL94V-0 Rated materials
· 4500 Vrms Isolation Strength(Pri:Sec)
· Designed for EN60950,UL1477 and UL1581
· Class B Insulation

According to:

Lamination/Bobbin(mm) Volume(VA)

Overall Dimension

a×b×c(mm)

Mouting Dimension

d/e(mm)
Tiger Tiger-L
EI28×11.5 1 -- 30×27×27 40
EI28×18 1.5-2.0 -- 30×33×27 42
EI35×15 2.0-3.0 2.5 37×32×32 45
EI35×18 3.0-4.0 3 37×35×32 45
EI35×26.5 5.0-6.0 4.5 37×42×32 45
EI41×15 4.0-5.0 4 43×33×36 55
EI41×16.5 5.0-6.0 -- 43×37×36 55
EI41×20 6.0-7.0 5 43×41×36 55
EI41×25 7.5-9.0 6 43×44×36 60
EI48×21 8.5-10 -- 51×39×43 65
EI48×24 10-12 7 51×44×43 65
EI48×30 14-16 -- 51×52×43 50
EI54×21.5 10-12 8 57×44×48 70
65(down8mm)
EI54×25 15-17 10-12 57×49×48 70
70(down8mm)
EI57×25 17-20 15 60×45×51 72
72(down8mm)
72(down11mm)
51×45×60 63
EI57×30 25-30 -- 60×51×51 72
51×51×60 65
EI57×35 30-35 -- 60×58×51 72
EI57×38 35 22 60×61×51 72
EI60×15.5 15 61×54×33 50×75
EI60×25 20-25 15 63×52×54 72
EI60×30 25-30 20 63×57×54 75
61×51×57 45×72
45×74
EI66×25 30-35 25 67×56×50 36×68
EI66×28 35-40 30 69×55×58 82
EI66×33 45-50 35 69×64×58 82
EI66×40 55-60 45 69×64×58 82
EI66×44 60-65 45 69×70×58 82
EI76.2×26 55-60 40 77×55×65 65×54
EI76.2×36 75-80 55 77×65×65 65×65
EI85.8×40 100-120 90 86×72×73 72×75
EI85.8×45 120-130 100 86×77×73 72×80
EI85.8×30 80-90 70 86×62×73 72×65

Application:
16V-220V 50 Hz Low Frequency Transformer EI52 Series For Telecommunications
TIGER designs and manufactures a wide range of products for critical applications in various industries, including but not limited to:
· Automotive
· Consumer Electronics
· Industrial
· Medical
· Military & Aerospace
· Telecommunications
We are uniquely positioned to offer the highest quality products for critical applications as well as cost effective products for price sensitive applications.
Packing:
16V-220V 50 Hz Low Frequency Transformer EI52 Series For Telecommunications
FAQ
1. Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test.
2. Q: What's the delivery time?
A: Sample order needs 7 days. Formal order needs 15-20 days.
3. Q: What's your payment terms?
A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.
4. Q: Do you have the prodcts in stock?
A: Yes,we will keep some general ones in stock.
5. Q: Can I mix different models in one container?
A: Yes,different models can be mixed up.
6. Q: Do you customize for customer or accept OEM Orders ?
A: Yes,we provide designing and customizing services. OEM orders are also accepted.
16V-220V 50 Hz Low Frequency Transformer EI52 Series For Telecommunications
