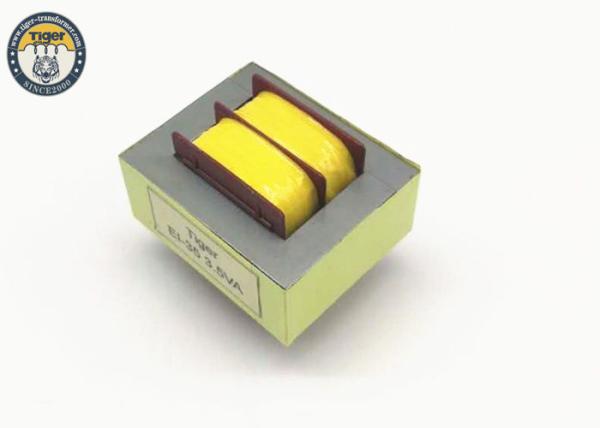

Single Phase Low Frequency Transformer For Small Type Electrical Appliances
Single Phase Low Frequency Transformer For Small Type Electrical Appliances
Single Phase Low Frequency Transformer For Small Type Electrical Appliances
Single Phase Low Frequency Transformer For Small Type Electrical Appliances
Single Phase Low Frequency Transformer For Small Type Electrical Appliances
Single Phase Low Frequency Transformer For Small Type Electrical Appliances
Specifications
Brand Name :
TIGER
Model Number :
TG-EI35
Certification :
ISO, CE,UL, RoHS
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
10000 PCS/Day
Delivery Time :
15-20 Working days
Packaging Details :
Carton: size 28*20*17cm Pallet : size 90*90*95cm (60 cartons)
Name :
Low frequency transformer
Phase :
Single
Port :
Shanghai Or Tianjin
ODM, OEM :
Accepted
Sample :
Free
HS Code :
8504319000
Description

ISO Certificated Factory making High Quality Encapsulated Transformer

Characteristics & range of appcication :

EI Low Frequency Power Transformers are widely used in small tpye electical appliances,such as air-conditioner VCD,UPS power supply,Acoustics etc.

High power output

Frequency is the ranges from 50Hz to 60Hz

· Class B Insulation
· Designed to meet International Safety Requirements

· Designed for EN60950,UL1477 and UL1581

· Single or Dual Primary 50Hz

· 4500 Vrms Isolation Strength(Pri:Sec)

According to:

Single Phase Low Frequency Transformer For Small Type Electrical AppliancesSingle Phase Low Frequency Transformer For Small Type Electrical AppliancesSingle Phase Low Frequency Transformer For Small Type Electrical AppliancesSingle Phase Low Frequency Transformer For Small Type Electrical AppliancesSingle Phase Low Frequency Transformer For Small Type Electrical Appliances

Lamination/Bobbin(mm) Volume(VA)

Overall Dimension

a×b×c(mm)

Mouting Dimension

d/e(mm)
Tiger Tiger-L
EI28×11.5 1 -- 30×27×27 40
EI28×18 1.5-2.0 -- 30×33×27 42
EI35×15 2.0-3.0 2.5 37×32×32 45
EI35×18 3.0-4.0 3 37×35×32 45
EI35×26.5 5.0-6.0 4.5 37×42×32 45
EI41×15 4.0-5.0 4 43×33×36 55
EI41×16.5 5.0-6.0 -- 43×37×36 55
EI41×20 6.0-7.0 5 43×41×36 55
EI41×25 7.5-9.0 6 43×44×36 60
EI48×21 8.5-10 -- 51×39×43 65
EI48×24 10-12 7 51×44×43 65
EI48×30 14-16 -- 51×52×43 50
EI54×21.5 10-12 8 57×44×48 70
65(down8mm)
EI54×25 15-17 10-12 57×49×48 70
70(down8mm)
EI57×25 17-20 15 60×45×51 72
72(down8mm)
72(down11mm)
51×45×60 63
EI57×30 25-30 -- 60×51×51 72
51×51×60 65
EI57×35 30-35 -- 60×58×51 72
EI57×38 35 22 60×61×51 72
EI60×15.5 15 61×54×33 50×75
EI60×25 20-25 15 63×52×54 72
EI60×30 25-30 20 63×57×54 75
61×51×57 45×72
45×74
EI66×25 30-35 25 67×56×50 36×68
EI66×28 35-40 30 69×55×58 82
EI66×33 45-50 35 69×64×58 82
EI66×40 55-60 45 69×64×58 82
EI66×44 60-65 45 69×70×58 82
EI76.2×26 55-60 40 77×55×65 65×54
EI76.2×36 75-80 55 77×65×65 65×65
Application:
Single Phase Low Frequency Transformer For Small Type Electrical Appliances
TIGER designs and manufactures a wide range of products for critical applications in various industries, including but not limited to:
· Automotive
· Consumer Electronics
· Industrial
· Medical
· Military & Aerospace
· Telecommunications
We are uniquely positioned to offer the highest quality products for critical applications as well as cost effective products for price sensitive applications.
Packing:
Single Phase Low Frequency Transformer For Small Type Electrical Appliances
FAQ
1. Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test.
2. Q: What's the delivery time?
A: Sample order needs 7 days. Formal order needs 15-20 days.
3. Q: What's your payment terms?
A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.
4. Q: Do you have the prodcts in stock?
A: Yes,we will keep some general ones in stock.
5. Q: Can I mix different models in one container?
A: Yes,different models can be mixed up.
6. Q: Do you customize for customer or accept OEM Orders ?
A: Yes,we provide designing and customizing services. OEM orders are also accepted.
Single Phase Low Frequency Transformer For Small Type Electrical Appliances
