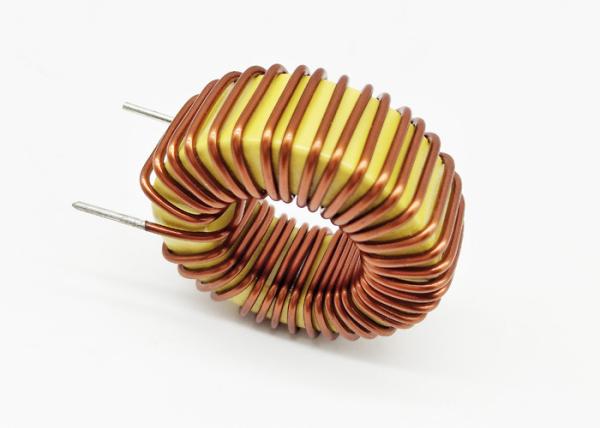

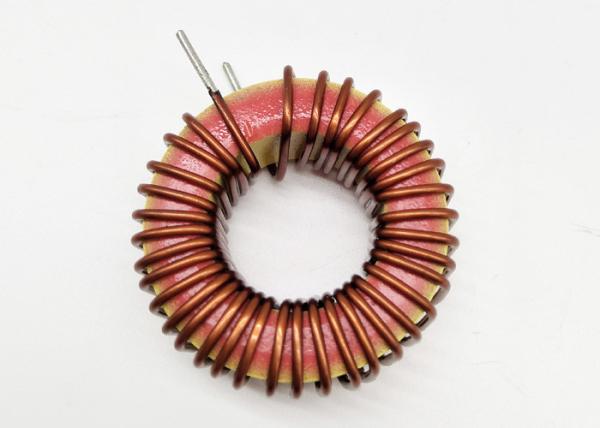

Double U Common Mode Choke Coil Toroid Power Charging Inductor Single winding
Double U Common Mode Choke Coil Toroid Power Charging Inductor Single winding
Double U Common Mode Choke Coil Toroid Power Charging Inductor Single winding
Double U Common Mode Choke Coil Toroid Power Charging Inductor Single winding
Double U Common Mode Choke Coil Toroid Power Charging Inductor Single winding
Double U Common Mode Choke Coil Toroid Power Charging Inductor Single winding
Specifications
Brand Name :
Tiger
Model Number :
TG-TI009
Certification :
ISO, CE,UL, RoHS
Place of Origin :
China
MOQ :
1000pcs
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
10000pcs/day
Delivery Time :
around 20 days
Packaging Details :
Carton/Pallet
Product Name :
Coil Inductor
Type :
Cylindrical Inductors
Winding :
Single-winding
Core shape :
Double U
Installation :
Vertical mounted
Output Power :
1-100W
Description

Custom Double U Common Mode Choke Coil Toroid Power Charging Inductor Single-winding


Features:

  • Ideal for a variety of DC-DC converter Inductors applications
  • Available on tape and reel for automatic insertion
  • High permeability µi (200KHZ), high L and impedance Z in the high frequency range
  • High saturation flux density (1.2T)
  • High curie temperature (580 °C) and excellent temperature characteristics
  • Low remanent flux density Br with DC-tolerance





Specifaction :

Nanocrystalline Mn-Zn ferrite
Initial Permeability @ 100KHz µr' 20°C 16000 5300
100°C 16300 7000
Imppeadance permeability @ 100KHz µr' 20°C 25700 5300
100°C 26300 7000
Saturation magnetic flux density Bs* (T) 20°C 1.35 0.44
100°C 1.3 0.27
Residual magnetic flux density Br* (T) 20°C 0.81 0.1
100°C 0.73 0.06
Corrective Force Hc* (A/m) 20°C 1.3 8
100°C 1.4 4.9
Curie Temperature Tc (°C) 570 150
Saturation magnetstriction λs(x10-6) +2.3 -1.1
Electrical resistivity ρ (µΩcm) 1.1 10x106
Density d(kg/m3) 7.4x103 4.85x103
* DC magnetic properties @ 800A/m



Double U Common Mode Choke Coil Toroid Power Charging Inductor Single winding


Application:
Double U Common Mode Choke Coil Toroid Power Charging Inductor Single winding
TIGER designs and manufactures a wide range of products for critical applications in various industries, including but not limited to:
· Automotive
· Consumer Electronics
· Industrial
· Medical
· Military & Aerospace
· Telecommunications
We are uniquely positioned to offer the highest quality products for critical applications as well as cost effective products for price sensitive applications.
Packing:
Double U Common Mode Choke Coil Toroid Power Charging Inductor Single winding
FAQ
1. Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test.
2. Q: What's the delivery time?
A: Sample order needs 10 days. Formal order needs around 20 days.
3. Q: What's your payment terms?
A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.
4. Q: Do you have the prodcts in stock?
A: Yes,we will keep some general ones in stock.
5. Q: Can I mix different models in one container?
A: Yes,different models can be mixed up.
6. Q: Do you customize for customer or accept OEM Orders ?
A: Yes,we provide designing and customizing services. OEM orders are also accepted.
Double U Common Mode Choke Coil Toroid Power Charging Inductor Single winding
