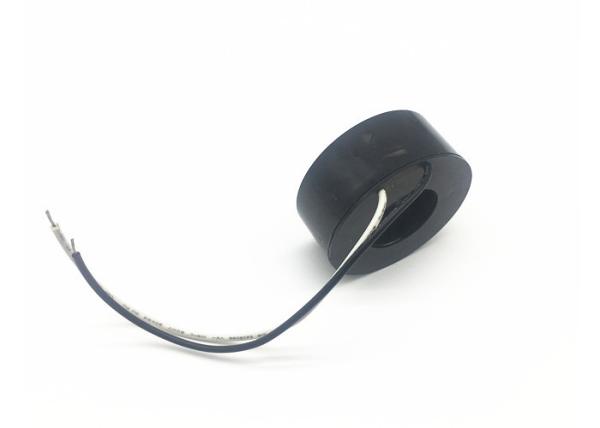

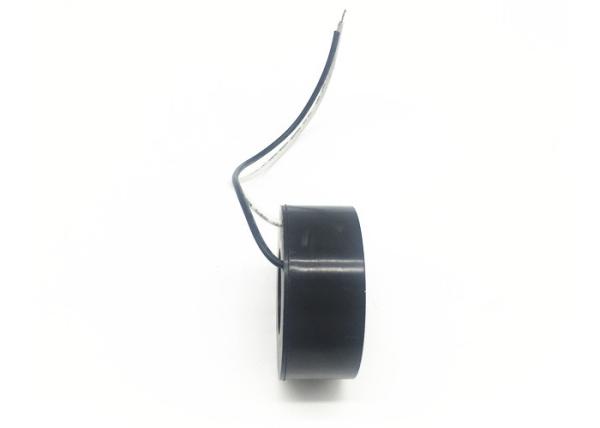

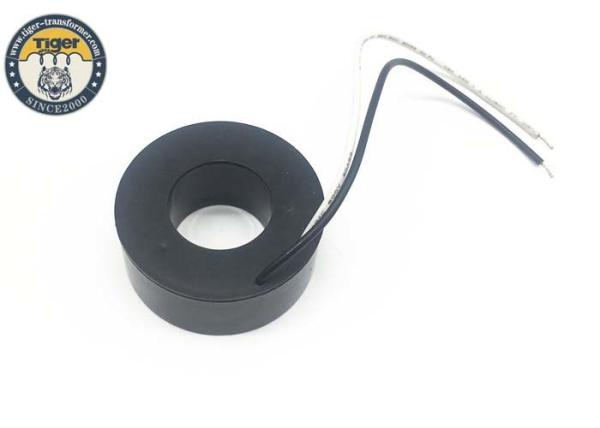

200A/0.2A Zero Phase Current Transformer Toroidal Through Hole Mounting
200A/0.2A Zero Phase Current Transformer Toroidal Through Hole Mounting
200A/0.2A Zero Phase Current Transformer Toroidal Through Hole Mounting
200A/0.2A Zero Phase Current Transformer Toroidal Through Hole Mounting
200A/0.2A Zero Phase Current Transformer Toroidal Through Hole Mounting
200A/0.2A Zero Phase Current Transformer Toroidal Through Hole Mounting
Specifications
Brand Name :
TIGER
Model Number :
Current Transformer
Certification :
ISO, CE,UL, RoHS
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
10000PCS/Day
Delivery Time :
15-20 Working days
Packaging Details :
Carton: size 28*20*17cm Pallet : size 90*90*95cm (60 cartons)
Name :
CT
Phase :
Zero
Usage :
Current
Insulation :
4kV
Case Material :
ABS or PBT
Mounting Method :
Through Hole
Description

UL CE Approved 200A/0.2A Zero Phase Toroidal Through Hole Mounting Current Transformer

Features:

• Meet the standard IEC62053 and ANSI C12.20

• High accuracy class ,wide linearity

• Superitor stability ,separate the external magneitc field interference

• Measure the current directly

• It is with the diode to save people's life

• Meet the ROHS requirement

• High accuracy at 10-130% of rated current
• AC isolation resistance: 3KV for 60s
• Swing open for ease of installation
• Double secured latches per side and keying holes
• Rigid housing case with UL® 94V-0 durable plastic
• Safety standard: IEC/EN60044-1
Nominal linearity error: Conform IEC61869-2
ConformIEC60044-1

Specifaction :

200A/0.2A Zero Phase Current Transformer Toroidal Through Hole Mounting

Part No A B C D E F G H I
(min) (max) (max) (max) (±0.2) (±0.3) (±0.2) (±0.2) (±0.2)
CT205 9.30 21.30 7.20 23.85 50.00 4.00 12.00
CT504 5.70 17.50 7.90 18.75 14.30 4.00 4.60
CT508 9.60 25.30 15.20 30.00 10.00 8.00 19.00
CT519 9.00 22.00 8.30 23.00 20.00 4.00 19.00 17.00
CT520 12.00 26.70 11.00 26.70 21.50 4.00 20.00 23.00
CT512 8.20 18.00 6.60 20.00 8.00 12.00 3.00


Application:
200A/0.2A Zero Phase Current Transformer Toroidal Through Hole Mounting
Application:

TIGER designs and manufactures a wide range of products for critical applications in various industries, including but not limited to:

• Automotive

• Consumer Electronics

• Industrial

• Medical

• Military & Aerospace

• Telecommunications

We are uniquely positioned to offer the highest quality products for critical applications as well as cost effective products for price sensitive applications.

Packing:
200A/0.2A Zero Phase Current Transformer Toroidal Through Hole Mounting
FAQ
1. Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test.
2. Q: What's the delivery time?
A: Sample order needs 7 days. Formal order needs 15-20 days.
3. Q: What's your payment terms?
A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.
4. Q: Do you have the prodcts in stock?
A: Yes,we will keep some general ones in stock.
5. Q: Can I mix different models in one container?
A: Yes,different models can be mixed up.
6. Q: Do you customize for customer or accept OEM Orders ?
A: Yes,we provide designing and customizing services. OEM orders are also accepted.
200A/0.2A Zero Phase Current Transformer Toroidal Through Hole Mounting
