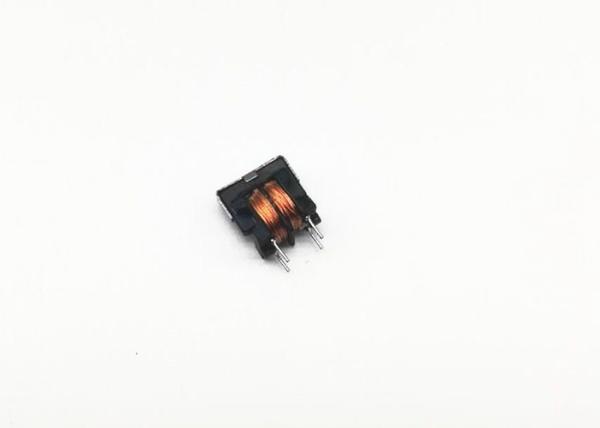

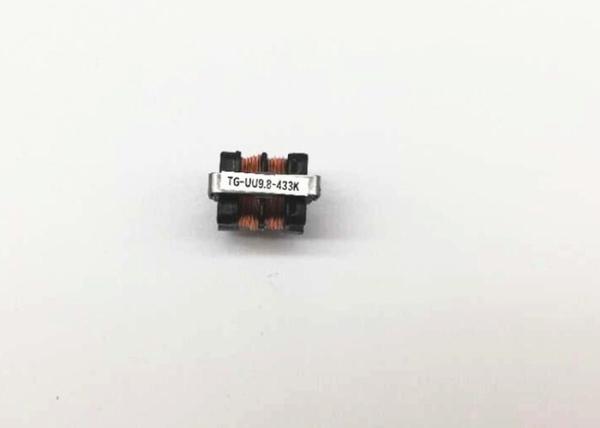

UU9.8 - 433K AC Line Filter Choke UU Series Ferrite Core Material Customized Available
UU9.8 - 433K AC Line Filter Choke UU Series Ferrite Core Material Customized Available
UU9.8 - 433K AC Line Filter Choke UU Series Ferrite Core Material Customized Available
UU9.8 - 433K AC Line Filter Choke UU Series Ferrite Core Material Customized Available
UU9.8 - 433K AC Line Filter Choke UU Series Ferrite Core Material Customized Available
UU9.8 - 433K AC Line Filter Choke UU Series Ferrite Core Material Customized Available
Specifications
Brand Name :
Tiger
Model Number :
UU9.8
Certification :
UL,ISO,CE,ROSH,CCC
Place of Origin :
China
MOQ :
1000
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
20000PCS/Per Day
Delivery Time :
15-25days
Packaging Details :
Cartons/ Pallets
name :
Line Filter ET
Shipping Term :
FOB ShangHai/TianJin
Samples :
Free
Type :
Horizontal or Vertical
Customized :
Support
Temperature :
40 ℃
Description

UU Series UU9.8 - 433K Line Filter customized UU filter with UL Certificate

Description:


● Core mounted Horizontal or Vertical
● Hipot voltage:2500Vrms
● Ferrite core material

● Copper winding
● Custom designs available

Applications:
● Rate current @40℃ TYP temperature rise
● Ideally used as common mode noise filter for TV,VCR,Switching power supply,NC machine,PC&PC related advice,measurement and control unit

According to:

UU9.8 - 433K AC Line Filter Choke UU Series Ferrite Core Material Customized Available

PART NUMBER

L

(mH MIN)

Irms

(mA Max)

DCR

(Ohms Max)

Core

Mounted
UU9.8-2011ANL 0.2 2000 0.06 V/H
UU9.8-5011ANL 0.5 1500 0.12 V/H
UU9.8-9011ANL 0.9 1300 0.16 V/H
UU9.8-1021ANL 1.0 1200 0.22 V/H
UU9.8-1521ANL 1.5 1000 0.30 V/H
UU9.8-2221ANL 2.2 850 0.40 V/H
UU9.8-3321ANL 3.3 700 0.50 V/H
UU9.8-4721ANL 4.7 500 1.60 V/H
UU9.8-5621ANL 5.6 450 0.75 V/H
UU9.8-1031ANL 10 350 1.40 V/H
UU9.8-1531ANL 15 300 2.30 V/H
UU9.8-2231ANL 22 250 3.70 V/H
UU9.8-2232ANL 22 300 2.50 V/H
UU9.8-3331ANL 33 200 4.95 V/H
UU9.8-4731ANL 47 150 6.90 V/H

①. Measure at 1KHz/0.1V

②. MAX current: The DC current at which the temperature rise is △t＝40℃TYP.(Ta＝25℃)

③. Maximum DC Resistance of each winding ④.Appearance of Vertical and Horizontal

Application:
UU9.8 - 433K AC Line Filter Choke UU Series Ferrite Core Material Customized Available
TIGER designs and manufactures a wide range of products for critical applications in various industries, including but not limited to:
· Automotive
· Consumer Electronics
· Industrial
· Medical
· Military & Aerospace
· Telecommunications
We are uniquely positioned to offer the highest quality products for critical applications as well as cost effective products for price sensitive applications.
Packing:
UU9.8 - 433K AC Line Filter Choke UU Series Ferrite Core Material Customized Available
FAQ
1. Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test.
2. Q: What's the delivery time?
A: Sample order needs 7 days. Formal order needs 15-20 days.
3. Q: What's your payment terms?
A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.
4. Q: Do you have the prodcts in stock?
A: Yes,we will keep some general ones in stock.
5. Q: Can I mix different models in one container?
A: Yes,different models can be mixed up.
6. Q: Do you customize for customer or accept OEM Orders ?
A: Yes,we provide designing and customizing services. OEM orders are also accepted.
UU9.8 - 433K AC Line Filter Choke UU Series Ferrite Core Material Customized Available
