Insulation Resistance Toroidal Core Inductor 0.5mm Wire Diameter IEC VDE Standards
Insulation Resistance Toroidal Core Inductor 0.5mm Wire Diameter IEC VDE Standards
Insulation Resistance Toroidal Core Inductor 0.5mm Wire Diameter IEC VDE Standards
Insulation Resistance Toroidal Core Inductor 0.5mm Wire Diameter IEC VDE Standards
Insulation Resistance Toroidal Core Inductor 0.5mm Wire Diameter IEC VDE Standards
Insulation Resistance Toroidal Core Inductor 0.5mm Wire Diameter IEC VDE Standards
Specifications
Brand Name :
TIGER
Model Number :
T10*6*5
Certification :
ISO, CE,UL, RoHS
Place of Origin :
China
MOQ :
1000PCS
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
10000 PCS/Day
Delivery Time :
15-20 Working days
Packaging Details :
Carton: size 28*20*17cm Pallet : size 90*90*95cm (60 cartons)
Name :
Common Mode Inductor SMD Power Inductor Pancake coil inductor
Materials :
Core, wire, base
Wire diameter :
0.5mm
Part Number :
T10*6*5
Operating T25°C - +125°Cemperature: :
-25°C - +125°C
Color :
Customer's Demand
Description

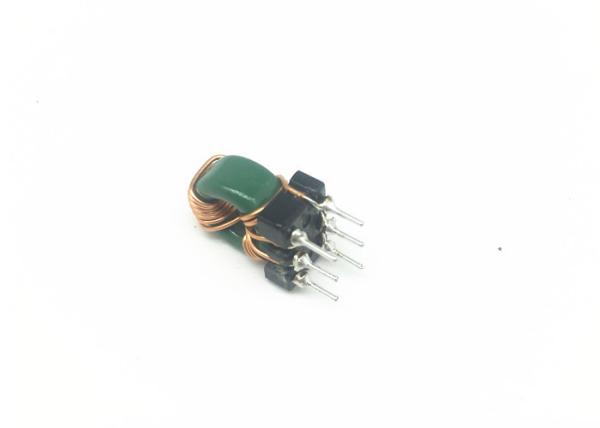

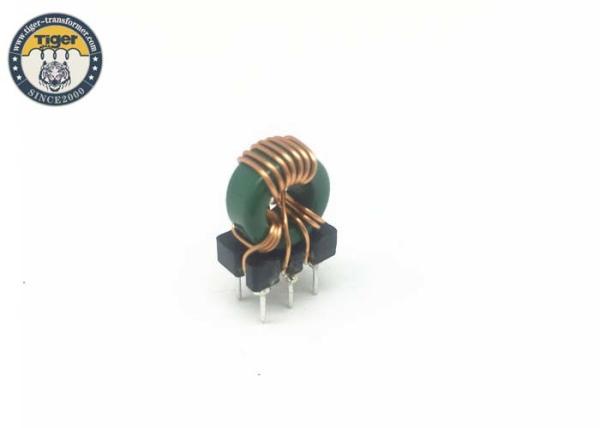

High Current Toroidal Common Mode Choke T10*6*5 Inductor

Features:

• Rated voltage: AC/DC 250V
• Withstand voltage level: AC 2kV, 1 minute
• Insulation resistance: DC 500V, 100 Ohms, min
• Operating temperature range: 25°C - +125°C

• Excellent coupling leakage factor and mode attenuation

• Parts meet UL, IEC & VDE safety standards

• Ideally used as common mode noise filter for TV,VCR,

Switching power supply,NC machine,PC&PC related

advice,measurement and control unit

Specifaction :

Core Type T10*6*5
Wire Type Insulated copper wire
Wire Diameter 0.5mm
I Turns 3
II Turns 3
III Turns 8

Windings
FAQ
1. Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test.
2. Q: What's the delivery time?
A: Sample order needs 7 days. Formal order needs 15-25 days.
3. Q: What's your payment terms?
A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.
4. Q: Do you have the prodcts in stock?
A: Yes,we will keep some general ones in stock.
5. Q: Can I mix different models in one container?
A: Yes,different models can be mixed up.
6. Q: Do you customize for customer or accept OEM Orders ?
A: Yes,we provide designing and customizing services. OEM orders are also accepted
Application:

TIGER is a leading designer and manufacturer of magnetic components. We offer an extensive products line, composed of standard and custom transformers, inductors and related components to meet all of your magnetic needs. Our in-house engineering team is ready to provide you with local technical support, as well as design custom products based on your specifications. We are able to support both low volume, quick turnaround production, as high volume, low cost production.

With facilities in China, TIGER can provide sales and manufacturing support on a global level.Customers can take advantage of our overseas production and shipping capabilities for greater flexibility and convenience.

Our China, headquarters is home to our exceptional engineering team, that is know for providing fast local design and quality assurance support to our domestic clients. We also have a group of highly skilled technicians standing by to provide quick turn-around prototyping and small production runs. Once your project is ready for full-scale production, our sales and manufacturing staff in china are able to support your project and provide cost sensitive solutions. No matter you require short lead time, “Made in China” products or international production, we are ready to assist you.

Insulation Resistance Toroidal Core Inductor 0.5mm Wire Diameter IEC VDE Standards
