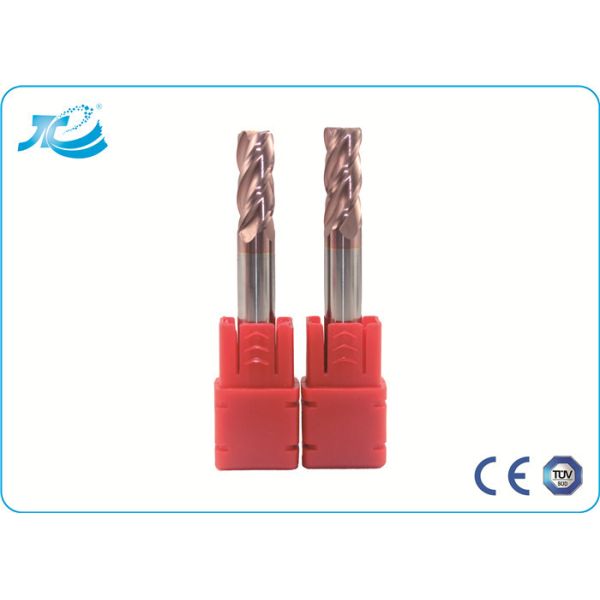

Carbide Corner Radius End Mill Milling Cutter Tools , Corner Rounding End Mill

Description

Titanium aluminum nitride coatings become self-lubricating when used at very high speeds, making them ideal for cutting without coolant ("dry machining").

Round shanks allow use with a wide variety of tool holding systems.

Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid toolholding systems.

When run in a counterclockwise direction (right-hand cut) spiral fluted tools evacuate chips up and out of the cut to reduce clogging.

Higher speeds, deeper cuts and metal removal rates.

Original raw micro grain material, high hardness and T.R.S.

1, Co: 10-12%, WC: 88-90%,

Grain size: 0.2-0.6μm,

Hardness: 92.5-94.0 HRA,

T.R.S.: 4200-4800 N/mm²,

Density: 14.3-14.8 G/cm³

2, We got 250T Extruder, 10MPa Overpressure Sintering Furnace-Vacuum

Dewaxing, these two equipments are very very important for manufacture and high quality carbide rods.

3, We use our own carbide rod for 90% of cutting tools.

4, We have introduced advanced CNC grinding machines in operating,Rollomatic,Schneeberger from Switzerland, ANCA from Australia, Zoller from German,KEYENCE from Japan,set up(Japan FANUC, brother processing center) tool laboratory test cut.Our technology from Taiwan.

Guarantee high precision and good performance.

5, Helix Angle: 38-42 °(we could do 4 of them are 37°)

Diameter of cutting edge: 1-12mm

Diameter of rods: 0.4-4mm

Length: 50-100mm

Cutting Form: Ball nose, Corner Radius, Taper Flute, etc.

Flutes No.: 2-6

We use 100% original raw material, the micro grain tungsten carbide powder and cobalt powder(from German)to make the carbide rod, hardness can be 92.5-94.0(HRA), and T.R.S. is 4200-4800(N/mm2), this carbide rod can ensure the end mills with very strong abrasive resistance and impact strength.

1. Super AlTiN reduce the coeffiction of friction, and improve the tools life much.
2. Made by world latest 5-AXIS CNC tools grinder, promise the quality and precision of cutter.
3. Each end mill is inspected by Zoller measuring and inspected machine.

Super coating

TiAN,TiCN TiN and ARCO ,

improve tool life, reduce the coefficient of friction.

Applications

Copper, Cast Iron, Carbon steel, Tool steel,

Mould steel, Die steel, Stainless steel, Plastic, Arcylic, etc.

Price Performance Ratio

From tungsten powder to end mills, that's the reason of our competitiveness!

Make sure about each piece end mill has a good quality,high precision and good performance.

More discount will be offered according to exact quantity.

Welcome to be our agents, OEM is also available.
