Medical Imaging USB Video Recording Full HD Endoscope Camera for Otoscope Laparoscopy
Medical Imaging USB Video Recording Full HD Endoscope Camera for Otoscope Laparoscopy
Medical Imaging USB Video Recording Full HD Endoscope Camera for Otoscope Laparoscopy
Medical Imaging USB Video Recording Full HD Endoscope Camera for Otoscope Laparoscopy
Medical Imaging USB Video Recording Full HD Endoscope Camera for Otoscope Laparoscopy
Medical Imaging USB Video Recording Full HD Endoscope Camera for Otoscope Laparoscopy
Medical Imaging USB Video Recording Full HD Endoscope Camera for Otoscope Laparoscopy
Medical Imaging USB Video Recording Full HD Endoscope Camera for Otoscope Laparoscopy
Medical Imaging USB Video Recording Full HD Endoscope Camera for Otoscope Laparoscopy
Medical Imaging USB Video Recording Full HD Endoscope Camera for Otoscope Laparoscopy
Specifications
Brand Name :
DAJING
Model Number :
DJSXJ-IIc
Certification :
ISO13485
Place of Origin :
China
MOQ :
1 SET
Payment Terms :
T/T, Western Union, Credit Card
Supply Ability :
100/month
Delivery Time :
30 Days
Packaging Details :
Carton
Product Name :
Full HD Endoscope Camera
Resolution :
1000TVL
Effective Pixels :
1920(H) x 1080(V)
Material :
Plastic, Metal, PCBA, PVC, Glass
Application :
ENT, Heysteroscope, Laparoscopic Surgery
Recording Function :
Support U disk or mobile hard disk for 1080P recording
Lens Mount :
C-Mount
Scanning Mode :
Progressive
Waterproof :
Camera Head IPX7 waterproof
Description

Medical Imaging USB Video Recording Full HD Endoscope Camera for Otoscope Laparoscopy

DJSXJ-IIc Full HD Endoscope Camera

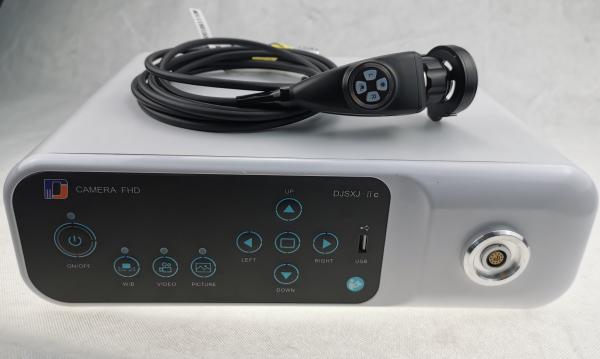

1080P Medical Endoscope Camera includes camera control unit, camera head and optical adapter.
(Zoom adapter is optional.)

Our Full HD endoscope camera system, the perfect solution for high-quality surgical imaging. This system features 1920(H) x 1080(V) effective pixels ensuring every surgical procedure is captured in full HD for clear visualization and precision. With surgical definition, you can perform your duties with ease, knowing that you are fully equipped to deliver exceptional quality care to your patients.

Features
1. Recording function: meet the needs of clinical teaching
2. Delicate endoscope Images, Richer color gamut, FPGA image processing algorithms.
3. Stronger noise reduction, sharpening, brightness, contrast and extinction functions.
4. SHADING Fuction: to enhance the vascular, enable doctors to see clearer
5. The ergonomic design and light weight of camera handle effectively help reduce the fatigue of doctors during long term operation.
Applications
Widely used in hysteroscopy, laparoscopy, proctoscopy, arthroscopy, ENT, otolaryngology, urology, gynecology, ophthalmology, plastic surgery, cystoscopy, prostate surgery hernia repair, appendectomy, colectomy, etc.
Medical Imaging USB Video Recording Full HD Endoscope Camera for Otoscope Laparoscopy
Image Sensor 1/1.9'' Sony IMX185 CMOS Sensor
Unit Cell Size 3.75 umx3.75 um
Effective Pixels 1920(H) x 1080(V)
Resolution 1000TVL
Photometry Average, peak and area photometry
Exposure Auto/Manual
S/N >54dB
Image Gamma 0.45, 0.55, 0.65, 0.75
Shutter Auto range 1/50-1/4000
AGC 0-20dB Adjustable
Lens Mount C-Mount
Scanning Mode Progressive
Illumination Ref 3000k-8000k
Min.Sensitivity 20LxF1.4
Waterproof Camera Head IPX7 waterproof
Transmission SMPTE 424M 3G-SDI, 75Ω

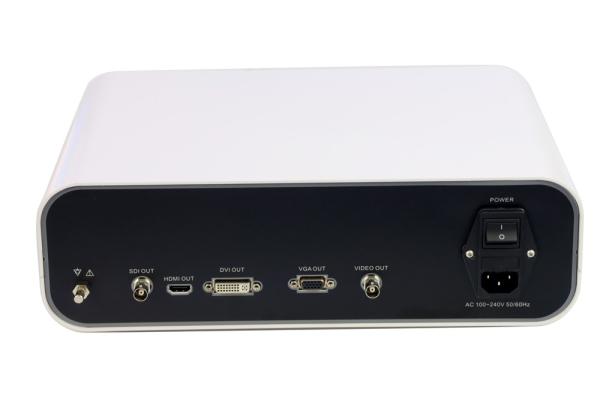

Output Signal HDMI, DVI, SDI, VGA(720P 60HZ, 1080P 60 HZ, 1024 X 768 60Hz , 1920X1200 60Hz, Video(480P or 480I)
Recording Function Support U disk or mobile hard disk for 1080P recording
Video Storage Format MP4 format for H.264/H.265 ENCODING STORAGE
White Balance Manual
Language Chinese,English
Handle Button Picture, Video, White balance
Working Temperature 0℃ ~+40℃
Power Supply AC100-240V 50/60 HZ
Size Handle:32mm x 32mm x80mm; Cable:3m; Control Unit: 360mm x 285mm x 120mm
Weight 4KG
