Medical Full HD Endoscope Camera For Surgical ENT Laparoscopy Gynecology Hysteroscopy Arthroscopy
Medical Full HD Endoscope Camera For Surgical ENT Laparoscopy Gynecology Hysteroscopy Arthroscopy
Medical Full HD Endoscope Camera For Surgical ENT Laparoscopy Gynecology Hysteroscopy Arthroscopy
Medical Full HD Endoscope Camera For Surgical ENT Laparoscopy Gynecology Hysteroscopy Arthroscopy
Medical Full HD Endoscope Camera For Surgical ENT Laparoscopy Gynecology Hysteroscopy Arthroscopy
Medical Full HD Endoscope Camera For Surgical ENT Laparoscopy Gynecology Hysteroscopy Arthroscopy
Medical Full HD Endoscope Camera For Surgical ENT Laparoscopy Gynecology Hysteroscopy Arthroscopy
Medical Full HD Endoscope Camera For Surgical ENT Laparoscopy Gynecology Hysteroscopy Arthroscopy
Medical Full HD Endoscope Camera For Surgical ENT Laparoscopy Gynecology Hysteroscopy Arthroscopy
Medical Full HD Endoscope Camera For Surgical ENT Laparoscopy Gynecology Hysteroscopy Arthroscopy
Specifications
Brand Name :
DAJING
Model Number :
DJSXJ-IIa
Certification :
ISO13485
Place of Origin :
China
MOQ :
1 SET
Payment Terms :
L/C, T/T, Western Union, Credit Card
Supply Ability :
500/month
Delivery Time :
30 Days
Packaging Details :
Carton
Image Sensor :
1/1.9'' Sony IMX185 CMOS Sensor
Unit Cell Size :
3.75 umx3.75um
Quality Certification :
ISO13485
Safety Standard :
IEC 60601
Material :
Plastic,Metal,PCBA, PVC, Glass
Effective Pixels :
1920(H) x 1080(V)
Scanning Mode :
Progressive
Warranty :
2 years
Description

Full HD Medical Endoscope Camera System For Surgical ENT Laparoscopy Gynecology Hysteroscopy Arthroscopy

DJSXJ-IIa

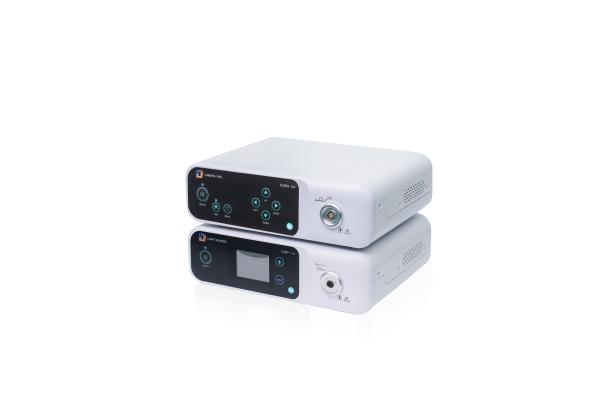

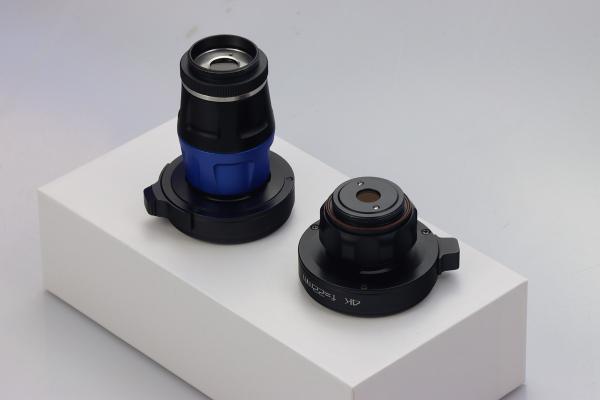

1080P Medical Endoscope Camera includes camera unit, camera handle and optical coupler.
(Zoom coupler is optional.)

Features
1. Delicate Endoscope Images, Richer color gamut, FPGA image processing algorithms.
2. Stronger noise reduction, sharpening, brightness, contrast and extinction functions.
3. SHADING Fuction: to enhance the vascular, enable doctors to see clearer
4. The ergonomic design and light weight of camera handle effectively help reduce the fatigue of doctors during long term operation.
Applications
Widely used in hysteroscopy, laparoscopy, proctoscopy, arthroscopy, ENT, otolaryngology, urology, gynecology, ophthalmology, plastic surgery, cystoscopy, prostate surgery hernia repair, appendectomy, colectomy, etc.
Output Signal
Multi-interface synchronous output
* HDMI, DVI, SDI three full HD synchronous output 1920*1080 (16:9)
* VGA 1280*720 (Although it is 720 output, it is compressed from full HD to 720, which is actually clearer than 720)
* VEDIO 640*480
DJSXJ-IIa
Technical Data
Image Sensor 1/1.9'' Sony IMX185 CMOS Sensor
Unit Cell Size 3.75 umx3.75um
Effective Pixels 1920(H) x 1080(V)
Resolution 1000TVL
Photometry Average, peak and area photometry
Exposure Auto/Manual
S/N >54dB
Image Gamma 0.45, 0.55, 0.65, 0.75
Shutter Auto range 1/50-1/4000
AGC 0-20dB Adjustable
Lens Mount C-Mount
Scanning Mode Progressive
Illumination Ref 3000k-8000k
Min.Sensitivity 20LxF1.4
Waterproof Camera Head IPX7 waterproof
Transmission SMPTE 424M 3G-SDI, 75Ω
Output Signal HDMI, DVI, SDI, VGA(720P 60HZ, 1080P 60 HZ, 1024 X 768 60Hz , 1920X1200 60Hz, Video(480P or 480I)
Image processing Noise reduction algorithm(2D/3D), color density 30 levels(user adjustable), edge enhancement, contrast adjustment, image magnification(16 times digital magnification) blood vessel enhancement, anti-fog function, strong light suppression
White Balance Manual
Language Chinese,English
Handle Button Picture, Video, White balance
Working Temperature 0℃ ~+40℃
Power Supply AC100-240V 50/60 HZ
Size Handle:32mm x 32mm x80mm; Cable:3m; Control Unit: 360mm x 285mm x 120mm
