CMOS Sensor Medical Full HD Endoscope Camera System DJSXJ-IId
CMOS Sensor Medical Full HD Endoscope Camera System DJSXJ-IId
CMOS Sensor Medical Full HD Endoscope Camera System DJSXJ-IId
CMOS Sensor Medical Full HD Endoscope Camera System DJSXJ-IId
Specifications
Brand Name :
DAJING
Model Number :
DJSXJ-IId
Certification :
CE
Place of Origin :
CHINA
MOQ :
1SET
Payment Terms :
T/T
Supply Ability :
100 PER MONTH
Delivery Time :
14DAYS
Packaging Details :
CARTON
Image Sensor :
1/1.9'' Sony IMX185 CMOS Sensor
Unit Cell Size :
3.75 umx3.75 um
Effective Pixels :
1920(H) x 1080(V)
Display screen :
5.0 inch, Resolution 800 x 480
Recording function :
Support U disk or mobile hard disk for 1080P recording
Video storage format :
MP4 format for H.264/H.265 ENCODING STORAGE
Waterproof :
Camera Head IPX7 waterproof
Working temperature :
0℃〜+40℃
Description

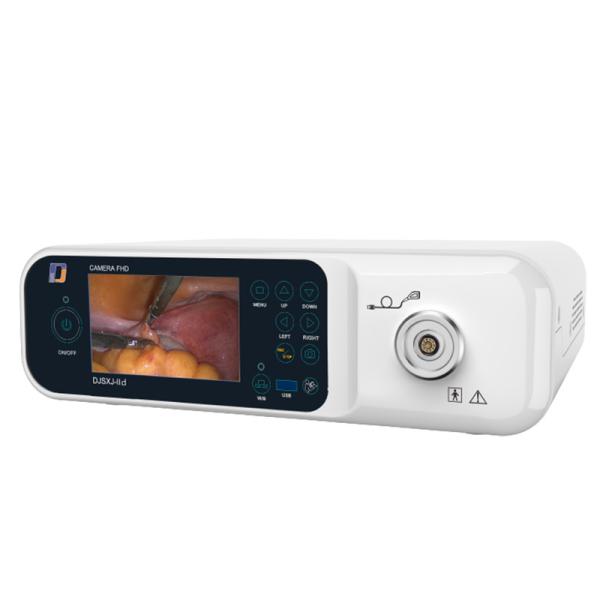

Medical Full HD Endoscope Camera System DJSXJ-IId

1080P Full HD Endoscope Camera with video recorder,

With USB storage and video recorder function.

It is convenience for doctor to store and review picture and video.

Max. 128G USB storage support.

The image resolution 1080P ( 1920 X 1080 ).

TFT LCD Screen 5inch.

Technical Data
Image Sensor 1/1.9'' Sony IMX185 CMOS Sensor
Unit Cell Size 3.75 umx3.75 um
Effective Pixels 1920(H) x 1080(V)
Resolution 1000TVL
Photometry Average, peak and area photometry
Exposure Auto/Manual
S/N >54dB
Image Gamma 0.45, 0.55, 0.65, 0.75
Lens Mount C-Mount
Scanning Mode Progressive
Illumination Ref 3000k-8000k
Waterproof Camera Head IPX7 waterproof
Output Signal HDMI, DVI, SDI, VGA(720P 60HZ, 1080P 60 HZ, 1024 X 768 60Hz , 1920X1200 60Hz, Video(480P or 480I)
Display screen 5.0 inch, Resolution 800 x 480
Recording function Support U disk or mobile hard disk for 1080P recording
Video storage format MP4 format for H.264/H.265 ENCODING STORAGE
Language Chinese,English
Handle Button Picture, Video, White balance
Working Temperature 0℃ ~+40℃
Power Supply AC100-240V 50/60 HZ
Weight 4kgs

CMOS Sensor Medical Full HD Endoscope Camera System DJSXJ-IId
