Household Power Supply 10Kwh 20Kwh 30Kwh With Inverter AC/DC Outputs Solar System With Lifepo4 Lithium Batteries
Household Power Supply 10Kwh 20Kwh 30Kwh With Inverter AC/DC Outputs Solar System With Lifepo4 Lithium Batteries
Household Power Supply 10Kwh 20Kwh 30Kwh With Inverter AC/DC Outputs Solar System With Lifepo4 Lithium Batteries
Household Power Supply 10Kwh 20Kwh 30Kwh With Inverter AC/DC Outputs Solar System With Lifepo4 Lithium Batteries
Household Power Supply 10Kwh 20Kwh 30Kwh With Inverter AC/DC Outputs Solar System With Lifepo4 Lithium Batteries
Household Power Supply 10Kwh 20Kwh 30Kwh With Inverter AC/DC Outputs Solar System With Lifepo4 Lithium Batteries
Specifications
Place of Origin :
Guangdong, China
MOQ :
negotiated
Price :
negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
negotiated
Cycle Life :
6000 Times
Protection :
Built-in Smart BMS
Inverter :
All In One
Weight :
120kg
Battery Type :
Lithium Ion
Description

Household Power Supply 10Kwh 20Kwh 30Kwh With Inverter AC/DC Outputs Solar System With Lifepo4 Lithium Batteries

Product parameters
Features:
● Single phase and split design which can meet different electricity requirements.
● It's mainly used in European and other countries with the same grid standard.

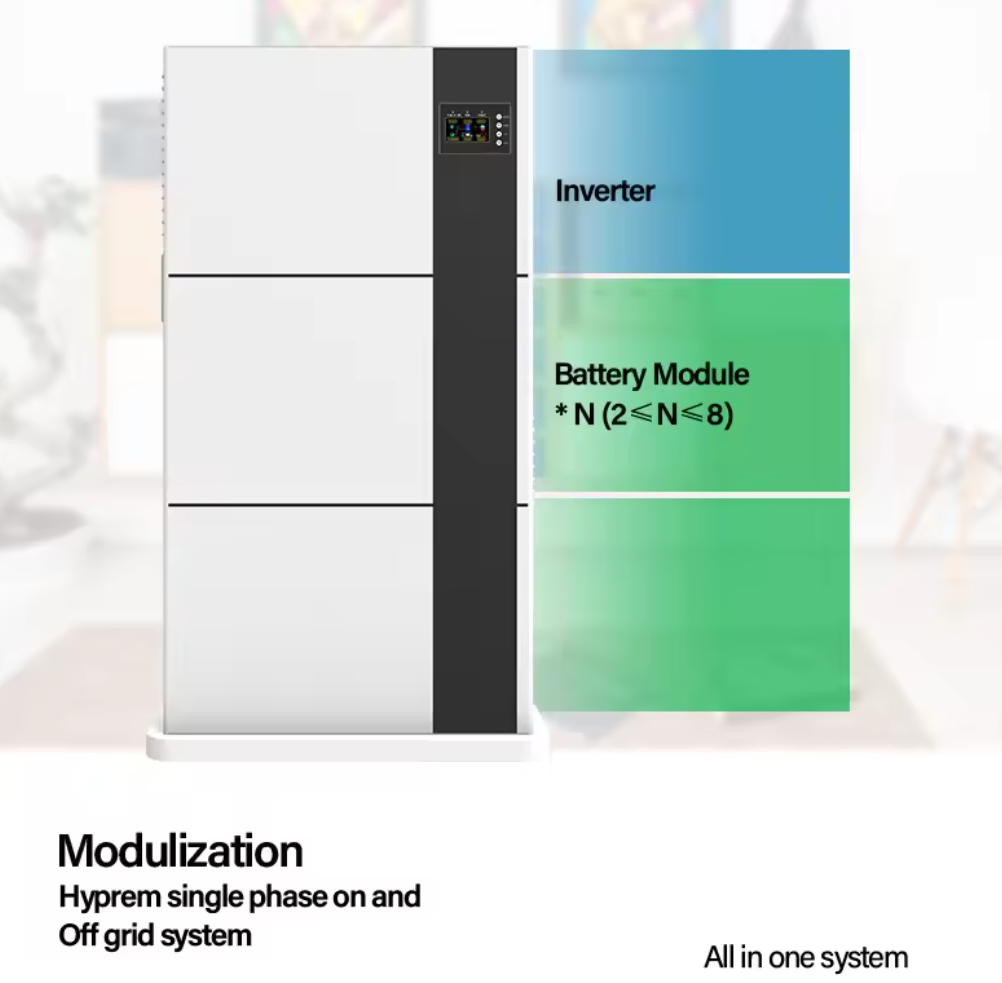

● All-In-One Design, include BMS, EMS, PCS and LFP Battery.
● Modulization design makes individual can move and install the product easily
● Personal computer On-line and Phone App monitoring, iOS/Android optional. Remote control.
● Multiple protection with alarm systems, safe and reliable;
● Can install the product wall-mounted like powerwall or ground mounted.
Model Number
Hyprem-050-2S50
Hyprem-050-4S50
Hyprem-050-6S50
Hyprem-050-8S50
Hyprem-050-12S50
AC data(on-grid)
Operation Mode
Single Phase(Load-matching mode/Backup mode/Peak-shaving mode)
Rating power
5kva
AC input voltage range
170~280Vac
AC input frequency range
47.5~51.5Hz/57~61.5Hz
AC data (Battery mode)
Max. output power
5.5kva
Rated AC Voltage
L/N/PE /220/230/240Vac±3%
Rated AC Frequency
50/60Hz
Switch Time
＜10ms
Battery data
Voltage range
102.4V
204.8V
307.2V
409.6V
614.4V
Battery Type
Lithium iron phosphate (LFP)
Qty of Stackable Batteries
2
4
6
8
12
Total Battery Capacity
5.12kWh
10.24kWh
15.36kWh
20.48kWh
30.72kWh
Max charge/discharge current
30A/30A
PV data
Recommended PV Power
6500W
Max PV Voltage
600Vdc
MPPT Voltage Range
100-550Vdc
Max PV Current per String
14A
Qty of MPPTs
2
System data
HMI
WIFI +App +LED
IP class
IP65+IP31
Installation
Wall mounting(inverter), cabinet(battery)
Dimension/(W*H*D) /Weight
Depending on the Qty of Stackable Batteries

Household Power Supply 10Kwh 20Kwh 30Kwh With Inverter AC/DC Outputs Solar System With Lifepo4 Lithium Batteries

Company Profile
Guangzhou Pei Mengdan new energy Technology Co., LTDwith background of more than 10 years experience in lithium battery industry,The technical experience accumulation of manufacturing Li-ion battery and BMS(Battery Management System) lays a steady foundation for all-in-one Solar Energy Storage System,we specialized inportable power station OEM/DOM service for 10 years,a moder nenterprise integrating the Design Research and Development.
FAQ
1.Q:How long is the delivery time of your energy storage systems products?
A:It usually takes about 40-45 days to produce an order.But the exact delivery time might be different for different orders or at different time.

2.Q:What kind of certificates your solar energy storage systems products have?
A:solar generator power station products have acquired UN38.3, CE, FCC, EMC ,UL,PSE and MSDS certificates, which is able to satisfy most country’s importing requirements.

3.Q:What can Lipower solar energy storage systems products?
A:solar power station can power most of the home appliances, it alsodepends on the output power of Lipower power stations.

4.Q:Can you supply OEM &ODM service ?
A:Yes ,as a professional manufacturer of portable power station,we offer OEM and ODM service.

5.Q:Can I customize solar energy storage systems products?
A:Yes. Let me know the specific customization requirements and I will get back to you as soon as possible.

6.Q:Can I get a solar energy storage systems sample?
A:Yes, please leave your contact information and our sales manager will contact you soon.
