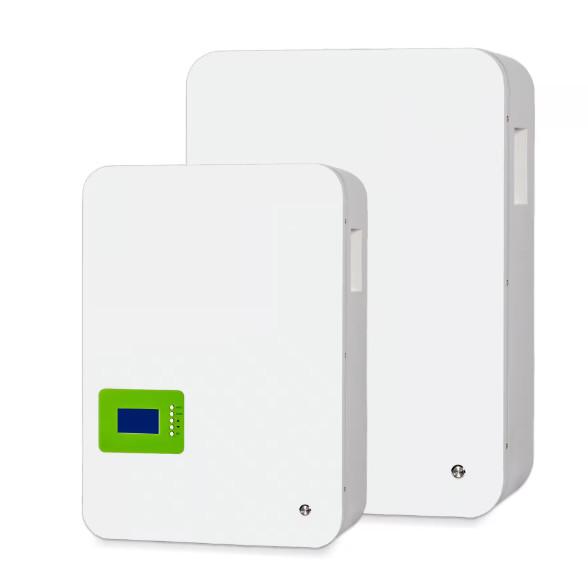

Powerwall Lifepo4 Lithium Ion 48v 100ah 200ah Battery Wall Mounted 5kwh 10KWh Off Grid Solar Pv System
Powerwall Lifepo4 Lithium Ion 48v 100ah 200ah Battery Wall Mounted 5kwh 10KWh Off Grid Solar Pv System
Powerwall Lifepo4 Lithium Ion 48v 100ah 200ah Battery Wall Mounted 5kwh 10KWh Off Grid Solar Pv System
Powerwall Lifepo4 Lithium Ion 48v 100ah 200ah Battery Wall Mounted 5kwh 10KWh Off Grid Solar Pv System
Powerwall Lifepo4 Lithium Ion 48v 100ah 200ah Battery Wall Mounted 5kwh 10KWh Off Grid Solar Pv System
Powerwall Lifepo4 Lithium Ion 48v 100ah 200ah Battery Wall Mounted 5kwh 10KWh Off Grid Solar Pv System
Specifications
Place of Origin :
Guangdong, China
MOQ :
negotiated
Price :
negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
negotiated
Output Power Range :
0-5 kWh
Weight :
48kg
Warranty :
5 Years
Protection Class :
IP55
Battery type :
Lifepo4/lithium Battery
Description

Powerwall Lifepo4 Lithium Ion 48v 100ah 200ah Battery Wall Mounted 5kwh 10KWh Off Grid Solar Pv System

Product parameters
Model
48100
48150
48200
Standard Voltage
48VDc
Voltage
37.5-54.75VDc
Norminal Capacity
100Ah
150Ah
200Ah
Rated Capacity
4.8kWh
7.2kWh
9.6kWh
Commumication Protocol
CAN / RS485 / WIFI / 4G / Blue Tooth
Efficiency (at 0.5C)
98%
Cell Self-Discharge
<5%/Month
Maximum Allowed Modules in Parallet
15 (72kWh)
15 (108kWh)
15 (144kWh)
Depth of Discharge
Up to 100%
Useful Life
10 Years
Cycle Life
6000 (@ 80% DoD)
Protection
Over temperature, overcurrent, short circuit, over-charging, over-discharging, Low voltage
Recommended Charge Current
25A
50A
50A
Maximum Charge Current
50A
100A
100A
Recommended Charge Voltage
54V
54V
54V
Maximum Charge Voltage
54.75V
54.75V
54.75V
Recommended Discharge Current
25A
50A
50A
Maximum Discharge Current
50A
100A
100A
Recommended Low Voltage Disconnect
41.25V
Battery Low Voltage Protection
39.75V
Battery Recovery Voltage
45V
Dimenstions:
510*440*220mm
690*530*215mm
690*530*215mm
Weight
50kgs
70kgs
90kgs
Terminal Type
M6
Case Material
Industrial Grade Iron
Enclosure Protection
IP20
Installation
Cabinet or Wall installation
Cell Type Chemistry
LiFeP04
Certifications
CE,FCC, CCC
Shipping Classification
UN 38.3. UN 3480, Class 9
Discharge Temperature
-20~65℃
-20~65℃
-20~65℃
Charge Temperature
0~55℃
0~55℃
0~55℃
Storage Temperature
-20~45℃
-20~45℃
-20~45℃

Powerwall Lifepo4 Lithium Ion 48v 100ah 200ah Battery Wall Mounted 5kwh 10KWh Off Grid Solar Pv System

Company Profile

Guangzhou Pei Mengdan new energy Technology Co., LTD is aleading manufacturer of lithium batteries. We focus on the developmentand customized production of high-performance, deep cycle, more stablepolymer lithium batteries, LiFePO4 batteries, nickel-metal hydride batterieswhich are widely used in medical, RV,golf cart, scooter, low-speed vehiclesand other fields.Rich experience, strong technical strength to provide youwith high quality products and excellent service.

FAQ
1. What if I don't have export experience?
We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you choose the most suitable shipping service.
2. How is your technical support?
We provide lifetime online support through Whatsapp/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime,our engineer will also go to oversea help our customers if necessary.
3. Can you get the product customized for us?
Of course, brand name, machine color, designed unique patterns available for customization.
4. How to become your agent?
Contact us through whatsapp, we will give you the best price and look forward to your greetings.
